Which ClickShare Base Unit is compatible with which ClickShare Button?

Article number: [3998] - Legacy code: [6454]

Applicable to

ClickShare Buttons, which are USB 2.0 devices, are categorized into four generations: GEN 2.0, GEN 3.0, GEN 4.0, and GEN 4.1. Each generation of Buttons is compatible with specific Base Unit models:

Button generation	Button part numbers	Connector type	Compatible Base Unit
GEN 4.1 ¹	CSBTN004	USB Type-C	CX-series: CX-20, CX-30 & CX-50 (Gen2) C-series: C-5 & C-10 CB-series: Bar Core & Bar Pro
GEN 4.0	R9861600D01C, R9861600D01CUS, R9861600P01C & R9861600P01CUS	USB Type-C	CX-series: CX-20, CX-30 & CX-50 (Gen2) C-series: C-5 & C-10
GEN 3.0 ²	R9861500D01	USB Type-A	CS(E)-series: CS-100(H), CSE200(+) & CSE-800
GEN 3.0 ²	R9861500D01C	USB Type-C	CS(E)-series: CS-100(H), CSE200(+) & CSE-800
GEN 2.0 ²	R9861006D01	USB Type-A	CSC-1 & CSM-1

Notes:

For Gen 4.1 Buttons to function correctly with CX-20, CX-30, CX-50 (Gen2), and C-5/C-10 Base Units, the Base Unit must be operating on firmware version 2.12.0.12 or higher. For details, see KB5644.
Since the release of ClickShare CS(E) firmware version 1.8, it is no longer possible to use GEN 2.0 Buttons with CS(E)-series Base Units and GEN 3.0 Buttons with CSM-1 and CSC-1 Base Units, as compatibility between these Base Units and Button generations has been disabled. For details, see KB3649.
It is recommended to use only the ClickShare Buttons that were delivered with or are compatible with the ClickShare Base Unit. You can identify your ClickShare Button by checking the model number/part number printed on the back. Click here.
If you're having difficulty identifying your ClickShare Base Unit, refer to KB2865 for various identification methods, including using the part number.

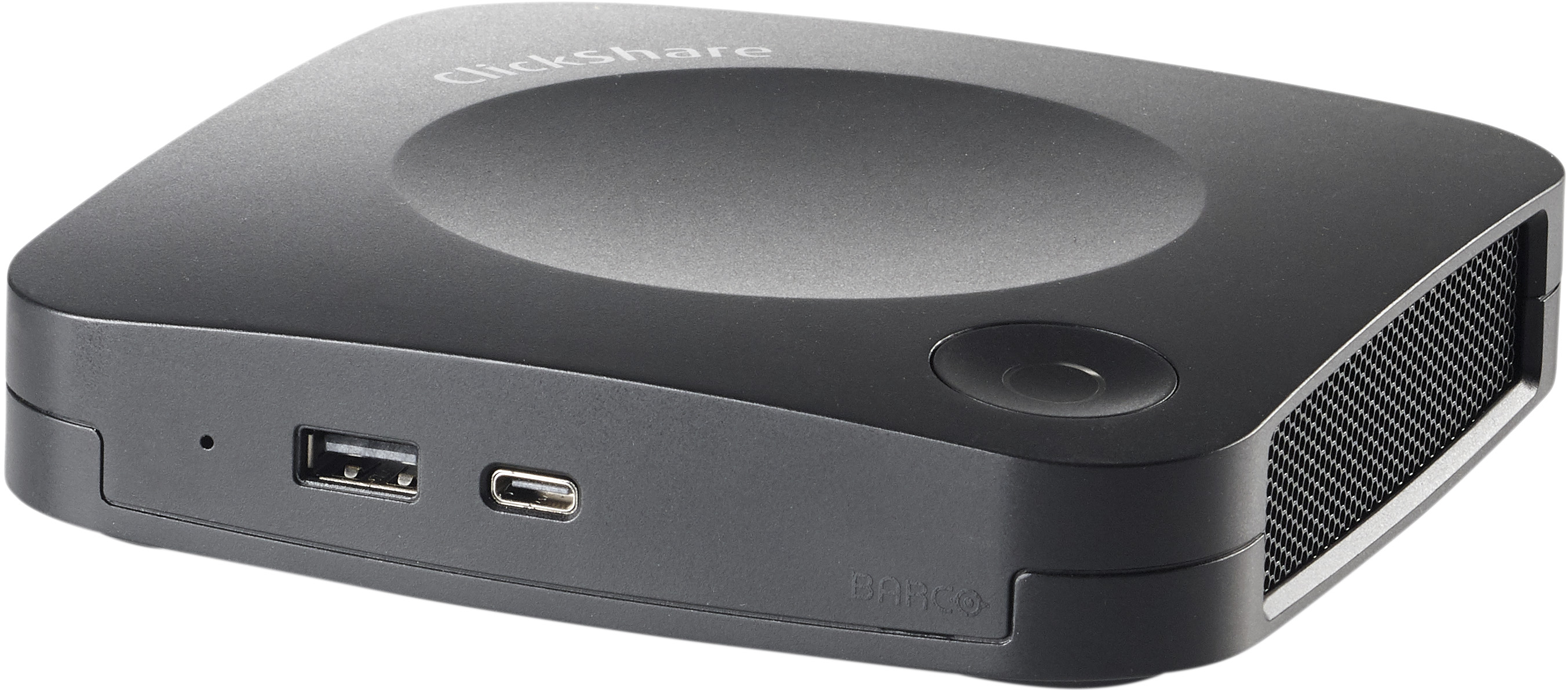

GEN 4.0/4.1 Button for CX-/C-/CB-series
Base Unit models and part numbers		Compatible Button models

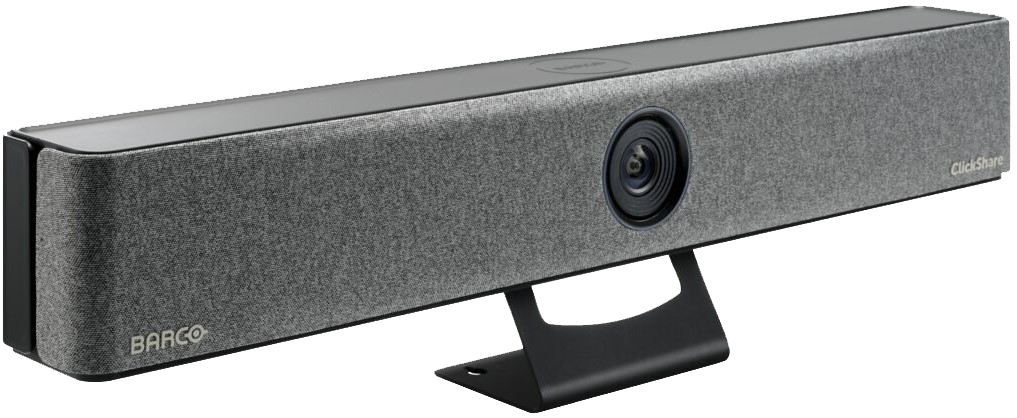

	Bar Core: R9861632xxB1 Bar Pro: R9861633xxB2	GEN 4.1
	C-5: R9861505xx C-10: R9861511xx CX-20: R9861512xx CX-30: R9861513xx	GEN 4.0 and GEN 4.1
	C-5 Gen2: R9861605xx C-10 Gen2: R9861611xxB1 R9861611xxB2 CX-20 Gen2: R9861612xxB1 CX-30 Gen2: R9861613xxB2
	CX-50 Gen1: R9861522xx
	CX-50 Gen2: R9861622xxB2
xx stands for the regions (CN, EU, NA, RW, US and ZH)

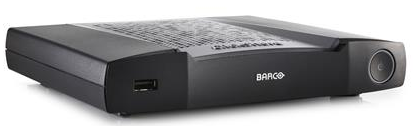

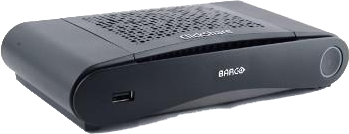

GEN 3.0 Button for CS(E)-series
Base Unit models and part numbers		Compatible Button model
	CS-100: R9861510xx	GEN 3.0
	CS-100 Huddle: R9861510Hxx
	CSE-200: R9861520xx
	CSE-200+: R9861521xx
	CSE-800: R9861580xx
xx stands for the regions (CN, EU, NA, RW, US and ZH)

GEN 2.0 Button for CSC-1, CSM-1
Base Unit models and part numbers		Compatible Button model
	CSM-1: R9861008CN R9861008NA R9861017EU	GEN 2.0
	CSC-1: R9861005xx R9861006Bxx
xx stands for the regions (CN, EU, NA, RW, US and ZH)

Button model identification

GEN 2.0 and GEN 3.0 Buttons are physically identical and can only be distinguished by inspecting the label on the back. Similarly, GEN 4.0 and GEN 4.1 Buttons share the same design and are also distinguishable only via the label. The key visual difference between GEN 4.0/4.1 and GEN 2.0/3.0 Buttons includes their overall look, layout and the presence of a second Quick Button located at the top of the GEN 4.0/4.1 Buttons.

GEN 4.0/4.1 Button vs Gen2.0/3.0: Visual differences

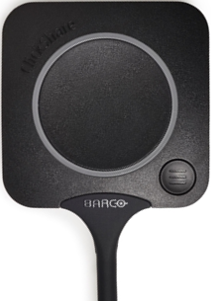

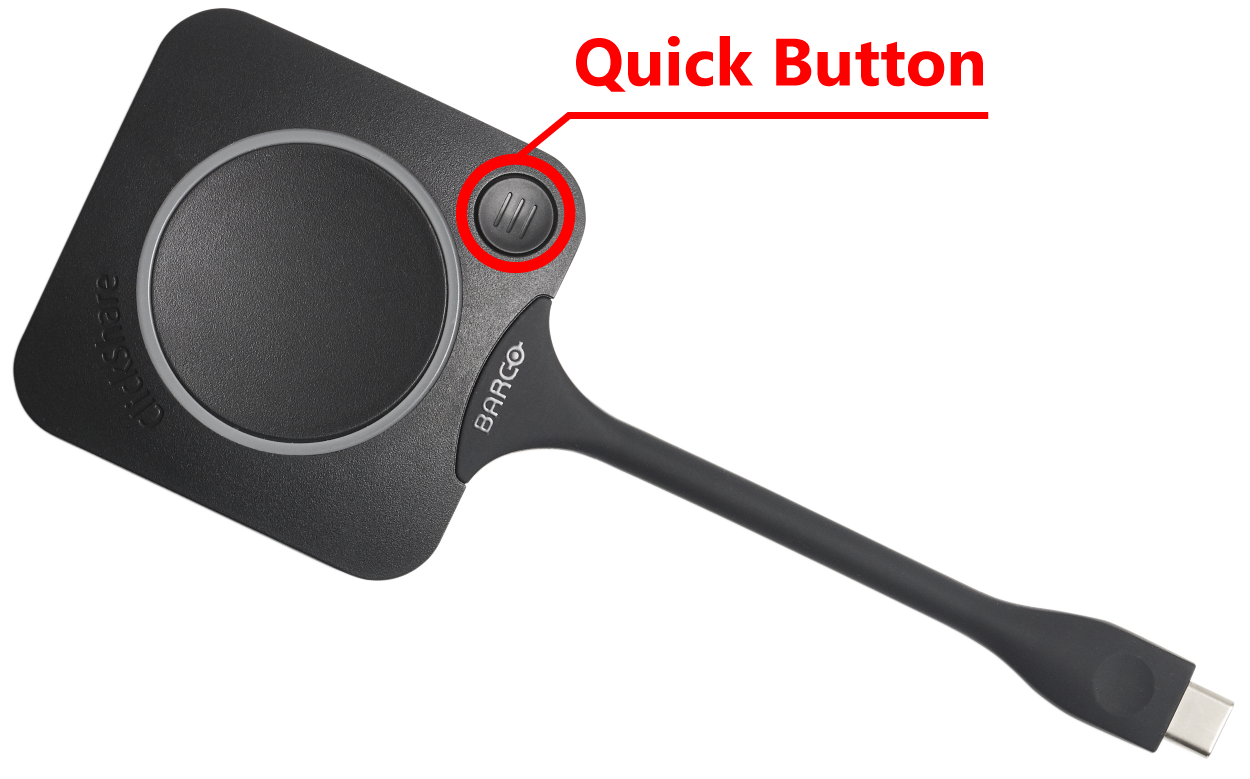

GEN 4.0/4.1 Buttons top view

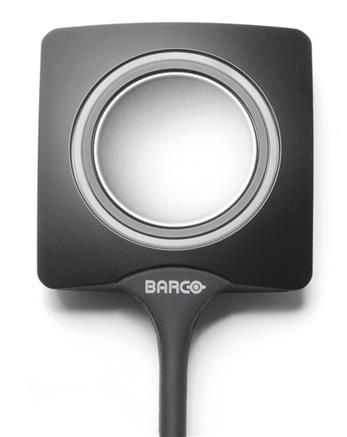

GEN 2.0/3.0 Buttons top view
GEN 4.0 and GEN 4.1 Button identification via part number

GEN 4.1: CSBTN004

GEN 4.0: R9861600D01C(US) & R9861600P01C(US). VID: 0600, PID: 00CE

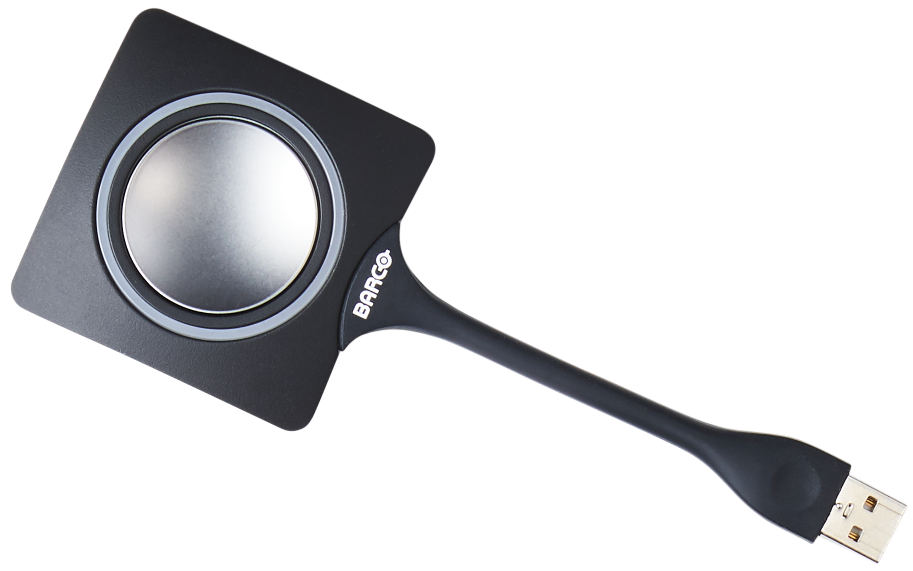

GEN 2.0 and GEN 3.0 Button identification via part number

GEN 3.0: R9861500D01 & R9861500D01C. VID: 0600, PID: 009f

GEN 2.0: R9861006D01. VID: 0600, PID: 0070
