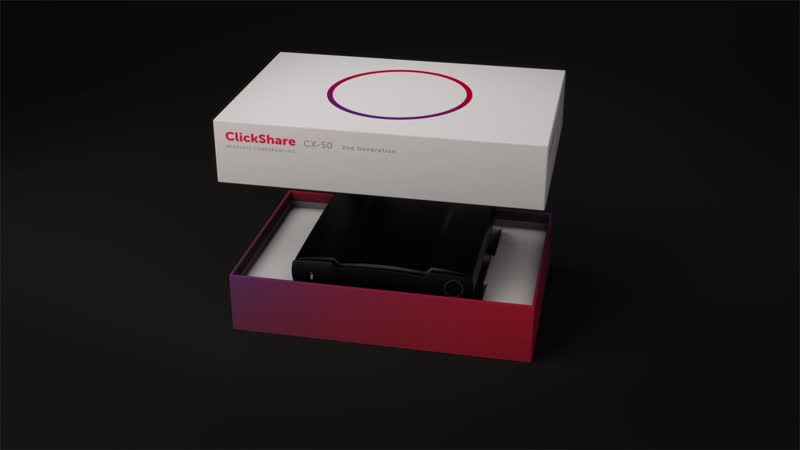

ClickShare CX‑50 2nd generation
Premium wireless conferencing system for high-impact rooms
- Dual screen: people and content side by side on two displays
- Effortless switching between UC mode and BYOM experience
- Wired roomdock for 4K content sharing and alternative connectivity
- Carbon-neutral product
- 100% secure, encrypted and cloud-managed
List price:
(excl. VAT, duties and freight)
Price not available
ClickShare CX-50 Gen2 - CN version with 2 Buttons
R9861622EUB2ClickShare CX-50 Gen2 - EU version with 2 Buttons
R9861622NAB2ClickShare CX-50 Gen2 - NA version with 2 Buttons
R9861622RWB2ClickShare CX-50 Gen2 - RW version with 2 Buttons
R9861622USB2ClickShare CX-50 Gen2 - US version with 2 Buttons
R9861622ZHB2ClickShare CX-50 Gen2 - ZH version with 2 Buttons
Premium conferencing solution for high-impact rooms
ClickShare CX-50 2nd generation brings flexible wireless conferencing in high-impact meeting spaces and board rooms. When you walk into the meeting room, ClickShare automatically connects you to room devices like cameras, mics, speakers, sound bars and displays.
Start a meeting from your laptop within seconds, using your preferred video conferencing platform. Make hybrid meetings easy, with just one click on the ClickShare Button or the ClickShare App, both for employees and guests.
Download the ClickShare app
Simply install the ClickShare Desktop App to wirelessly conference and share content
- Connect instantly to all the technology in the room
- Collaborate better thanks to a set of advanced, smart features
If you want to experience wireless conferencing via the ClickShare App, install the MSI- file and ask your IT administrator for additional rights if needed.
Specifications
Download spec sheetGeneral specifications
- Operating system
- Windows 10 or higher macOS 11 (BigSur) and higher
Android v11 and higher (ClickShare App)
iOS 14 and higher (ClickShare App)
- System requirements
- For a smooth experience with Microsoft Teams or Zoom
Minimum: Windows processor Intel Core i3 or AMD Ryzen 5/macOS: Intel Core i3 or Apple Silicon M1; RAM 8GB; OS version: Windows 10 20H2/macOS 11 Big Sur Recommended: Windows processor Intel Core i5/Ultra 5 or AMD Ryzen 7/macOS: Apple Silicon M3; RAM 8GB; OS version: Windows 11 latest build/macOS latest build
- Video outputs
- HDMI: 3840*2160 @ 60Hz, HDMI 2.1 Source USB-C: 3840*2160 @ 60Hz, DisplayPort Alternate mode Source with DisplayPort v1.2
- Video inputs
- USB-C: 3840*2160 @ 30Hz, DisplayPort Alternate mode Sink with DisplayPort v1.2
- Audio output
- USB, jack, HDMI
- ClickShare Buttons
- 2
- ClickShare App
- Desktop & Mobile
- Native protocols
Airplay, Google Cast, Miracast
- Maximum sources simultaneously on screen
- 2
- Noise Level
- Max. 25dBA @ 0-30°C
Max. 30dBA @ 30-40°C
- Wired authentication
- 802.1x, EAP-TLS, EAP-TTLS, PEAP.
- SoftAP client mode
- 802.1X EAP-TLS, EAP-TTLS, PEAP, and WPA2 PSK.
- Authentication protocol
- WPA2-PSK in stand alone mode
WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
- Wireless transmission protocol
- IEEE 802.11 a/g/n/ac and IEEE 802.15.1
- Reach
- Max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
Frequency band 2.4 GHZ and 5 GHz (DFS)
- Frequency band
- 2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)
- Connections
- 1x Ethernet LAN 1Gbit
1x USB-C 2.0 (back); 2x USB-A 2.0 (back); 1x USB -A 2.0 (front)
Audio analog line out on mini jack socket (3.5mm), digital S/PDIF
- Temperature range
- Operating: 0°C to +40°C (+32°F to +104°F)
Max: 35°C (95°F) at 3000m
Storage: -20°C to +60°C (-4°F to +140°F)
- Humidity
- Storage: 0 to 90% relative humidity, non-condensing
Operation: 0 to 85% relative humidity, non-condensing
- Anti-theft system
- Kensington lock
- Certifications
- FCC/CE
- Touch screen support & Interactivity
- Yes
- Wireless conferencing
- via App or Button
- Local view
- High quality
- Network connection
- LAN & WiFi (dual)
- Management and reporting
- Yes
- Warranty
- 1 year standard. 5 years coverage upon registering via SmartCare
Hardware specifications
- Dimensions (HxWxD)
- 39mm x 200mm x 202mm
- Power consumption
- Operational: 50W (max)
Standby: <8W (networked standby), < 0.5W (deep standby mode)
- Power supply
- Standard 110/220 V AC plug
- Weight
- 900 gr
Dive into automatic switching:
an exclusive feature for the CX-50 Gen2
Make the most out of ClickShare
- Efficient management platform to maintain, manage and monitor your ClickShare fleet
- The right tool to increase your meeting rooms´ ROI
- Easy to stay up to date and act upon notifications
- Secure environment that keeps your data safe
SmartCare so you can be carefree
- Service package included with all ClickShare devices
- Reliable service with direct vendor support
- 5-year warranty upon registering your ClickShare devices
- 5 years of analytics and insights via XMS Cloud to optimize working spaces and increase ROI
Designed with people and planet in mind
- Made with non-paint plastics & halogen-free PCB
- Lighter, ecological packaging choices and designed for recycling
- Energy efficient to reduce your power consumption
- Carbon neutral or with a Barco ECO label: A++
