ClickShare Buttons, which are USB 2.0 devices, are categorized into GEN 2.0 (R9861006D01), GEN 3.0 (R9861500D01 and R9861500D01C), GEN 4.0 (R9861600D01C and R9861600D01CUS) and GEN 4.1 (CSBTN004). Each generation of Buttons is compatible with specific Base Unit models.
- GEN 2.0: Compatible with CSC-1 and CSM-1
- GEN 3.0: Compatible with CS(E)-series
- GEN 4.0: Compatible with CX-/C-series
- GEN 4.1: Compatible with CX-/C-/CB-series
R9861500D01 and R9861500D01 are USB Type-A Buttons, while R9861500D01C, R9861600D01C, R9861600D01CUS, R9861600P01C and R9861600P01CUS are USB Type-C Buttons.
Note: It is recommended to use only the ClickShare Buttons that were delivered with or are compatible with the ClickShare Base Unit. To identify the Button you are using, please see the Button model number printed on the back of the button.
Note: To identify the ClickShare Base Unit model you are using, please see how-to instructions in KB 2865.
CX-20/30/50, C-5/10 and Bar Core/Pro | |||
| Base Unit models and part numbers | Compatible Button models | ||
 |
Bar Core1: Bar Pro1: |
GEN 4.0 and GEN 4.12 | |
 |
C-5: C-10: CX-20: CX-30: | ||
|
C-5 Gen2: C-10 Gen2: CX-20 Gen2: CX-30 Gen2: | |||
 |
CX-50 Gen1: | ||
 |
CX-50 Gen2: | ||
xx stands for the regions (CN, EU, NA, RW, US and ZH)
1The ClickShare Bar Core and Bar Pro are only compatible with the Gen 4.1 Button.
2The Gen 4.1 Button is compatible with C-/CX-series Base Units running firmware version 2.12.0.12 or higher. For details, see KB 5644.
CS-100(H), CSE-200(+) and CSE-800 | |||
| Base Unit models and part numbers | Compatible Button model | ||
 |
CS-100: |
GEN 3.03 | |
|
CS-100 Huddle: | |||
 |
CSE-200: | ||
 |
CSE-200+: | ||
 |
CSE-800: | ||
xx stands for the regions (CN, EU, NA, RW, US and ZH)
CSC-1 and CSM-1 | |||
| Base Unit models and part numbers | Compatible Button model | ||
 |
CSM-1: |
GEN 2.03 | |
 |
CSC-1: | ||
xx stands for the regions (CN, EU, NA and JP)
3 Since the release of ClickShare CS(E) firmware version 1.8, it is no longer possible to use GEN 2.0 Buttons with CS(E)-series Base Units or GEN 3.0 Buttons with CSM-1 and CSC-1 Base Units, as compatibility between these Base Units and Button generations has been disabled. For details, see KB 3649.
Button's model identification
The GEN 2.0 and GEN 3.0 Buttons look the same but can be distinguished by looking at the layout & info on the sticker at the back of the Button. The GEN 4.0 and GEN 4.1 Buttons can be distinguished by both color and shape as well as the presence of the second "quick Button" at the top of the Button.
 |  |  |
|

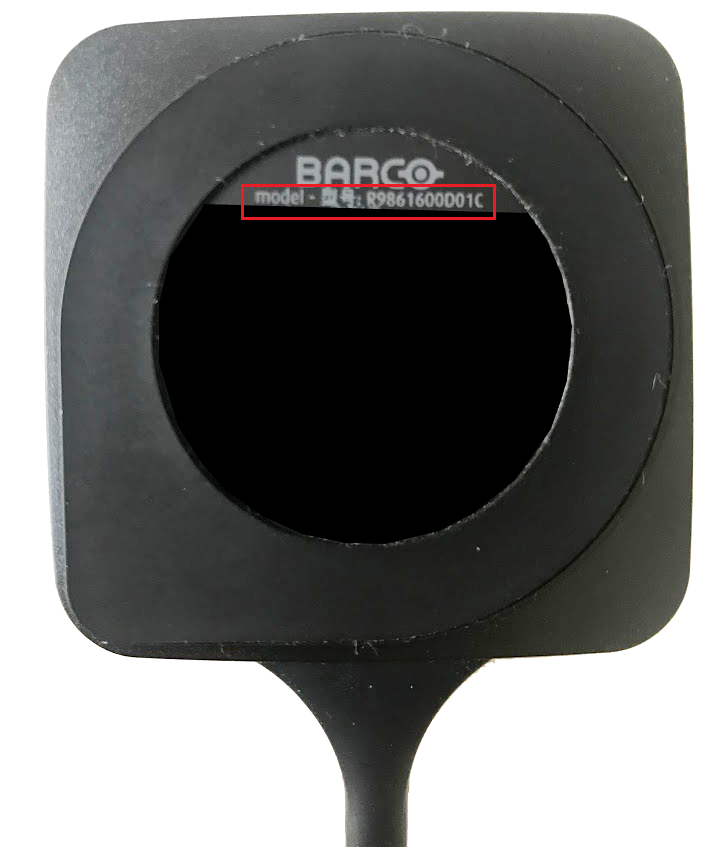

GEN 4.0: R9861600D01C and R9861600D01CUS VID: 0600 |

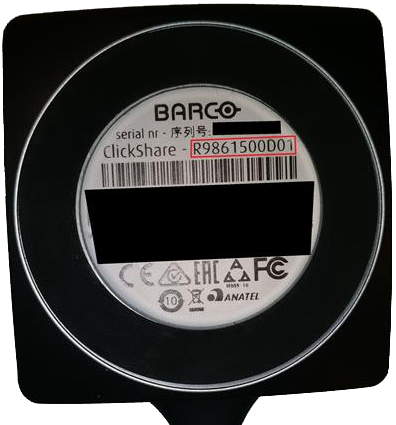

GEN 3.0: R9861500D01 and R9861500D01C VID: 0600 |

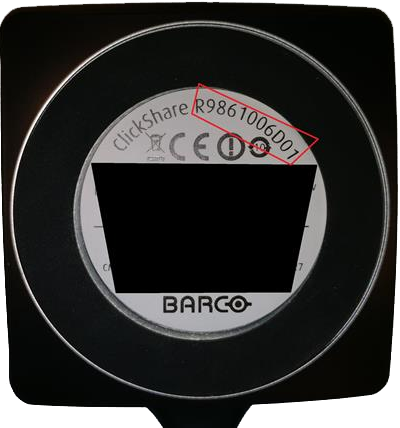

GEN 2.0: R9861006D01 VID: 0600 |
