Please note that MNA fan kits are designed for use only with devices that are out of warranty. Installing these kits on devices that are still under warranty will void the warranty. If your device is currently under warranty and you need service, please create a service case to request a RMA.
Quick Start Guide

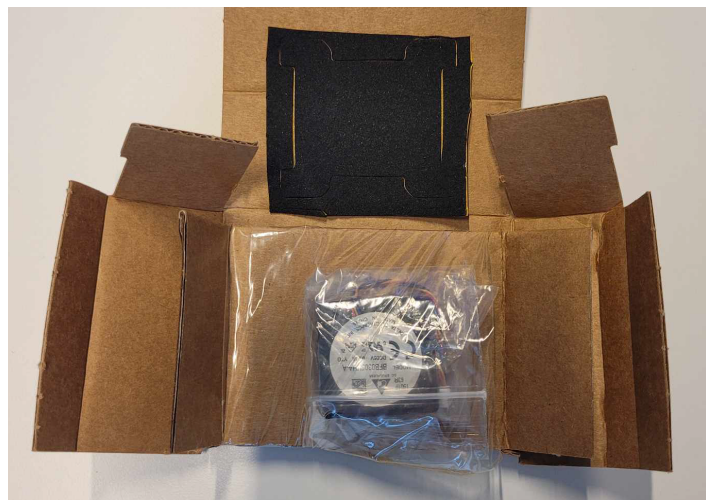

Fan kit (C9827142) — Contents
-
1x replacement fan
-
1x replacement foam
-

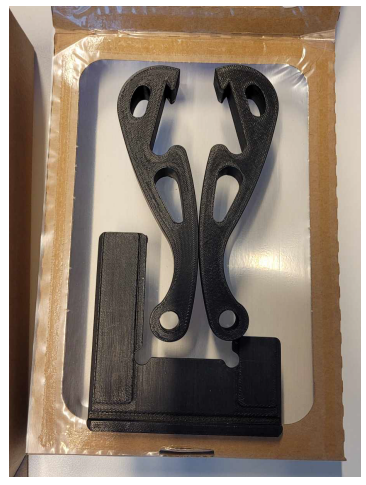

Tool kit (C9827141) — Contents
-
2x specialized grippers
-
1x foam positioning tool
Applicable to
|
Part number |
Description |
|
K9303320 |
MNA-420 ENC HDMI |
|
K9303300 |
MNA-440 ENC HDMI |
|
K9303321 |
MNA-420 ENC SDI |
|
K9303301 |
MNA-440 ENC SDI |
|
K9303330 |
MNA-420 DEC HDMI |
|
K9303331 |
MNA-420 DEC HDMI V2 |
|
K9303310 |
MNA-440 DEC HDMI |
|
K9303311 |
MNA-440 DEC HDMI V2 |
|
K9306220 |
MNA-620 ENC HDMI |
|
K9306420 |
MNA-640 ENC HDMI |
|
K9306230 |
MNA-620 ENC SDI |
|
K9306430 |
MNA-640 ENC SDI |
|
K9306210 |
MNA-620 DEC HDMI |
|
K9306410 |
MNA-640 DEC HDMI |
Quick Start Guide Access
To access this fan replacement procedure, please scan the QR code on the kit boxes.
-

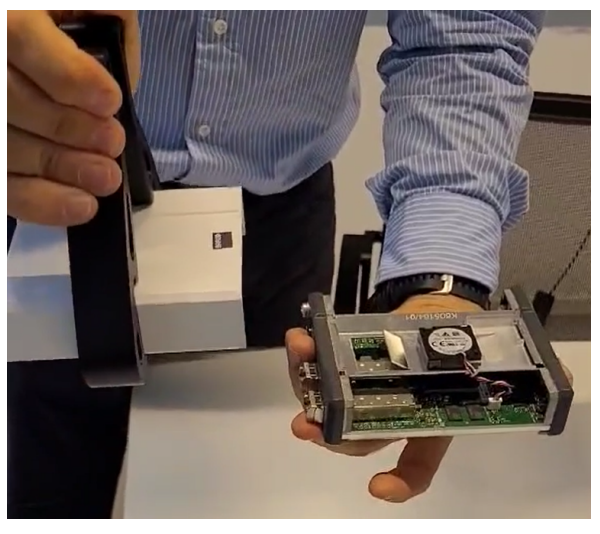

Remove the MNA Cover

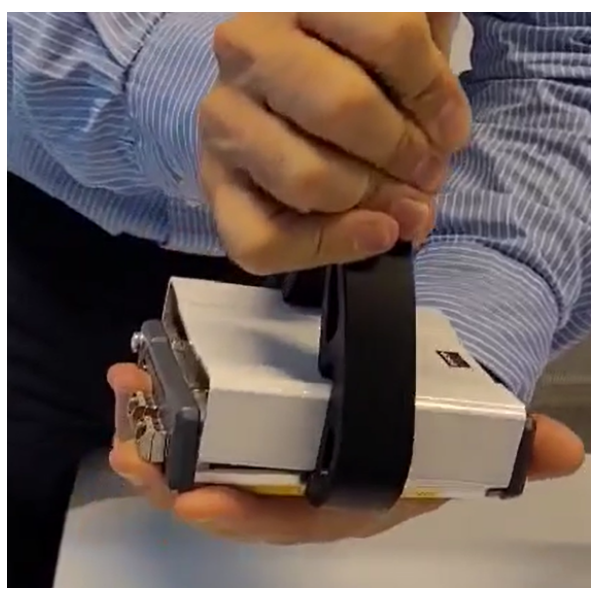

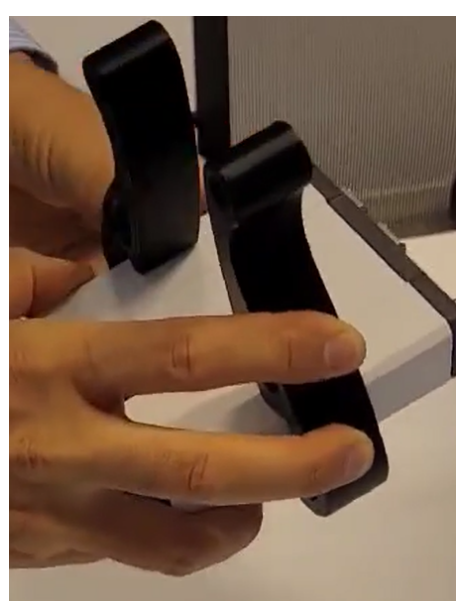

With one hand, hold the MNA cover with both specialized grippers.
-
With your other hand, hold the MNA firmly.
Apply pressure on the grippers, remove and lift the cover.

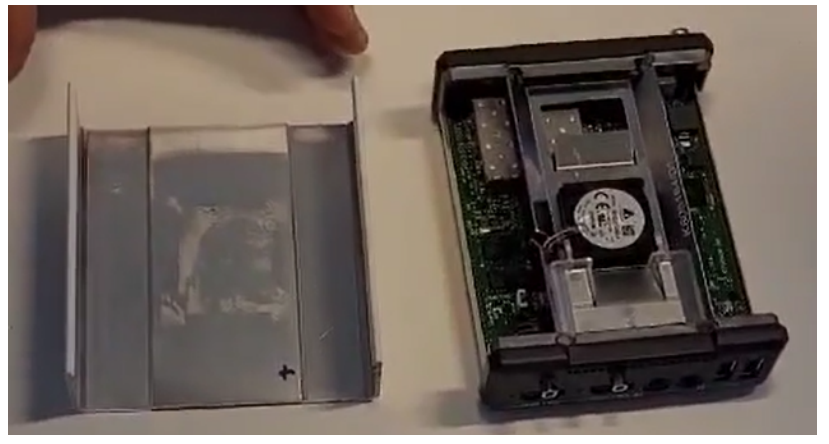

Place the cover on the side.
-
Add the foam
Turn the cover over.
If the foam is already present, you don't need to do anything. If not, add the foam following the procedure bellow.

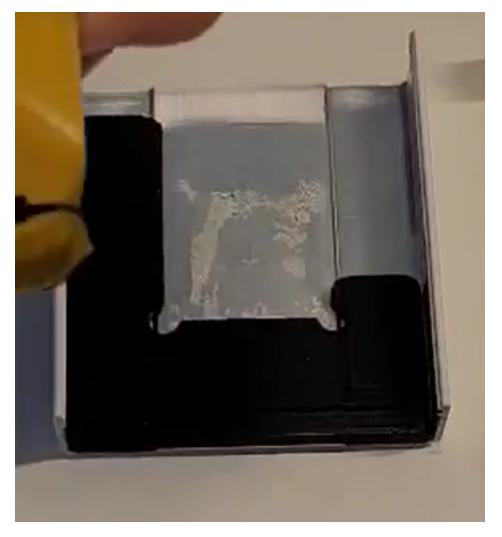

Place the foam positioning tool inside the MNA cover. To do so, make sure that the markings on the tool are visible, and that the positioning tool is seated against the cover border.

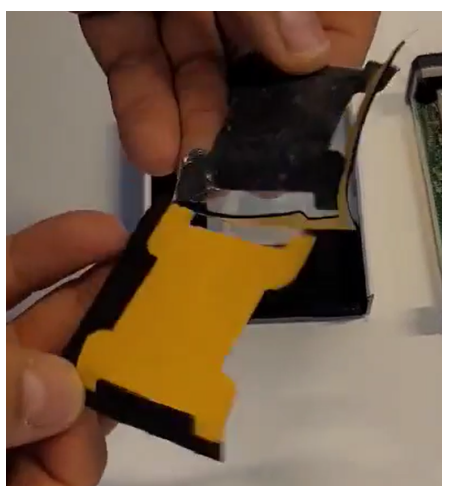

Remove the foam adhesive.

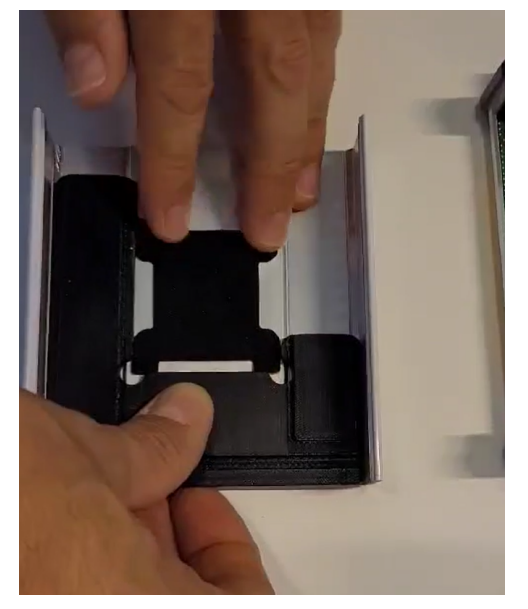

Apply and stick the foam following the position indicated by the tool.
Remove the foam positioning tool.
-
Remove the old fan
CAUTION: Do not touch the electronic board during the procedure, otherwise it may break.

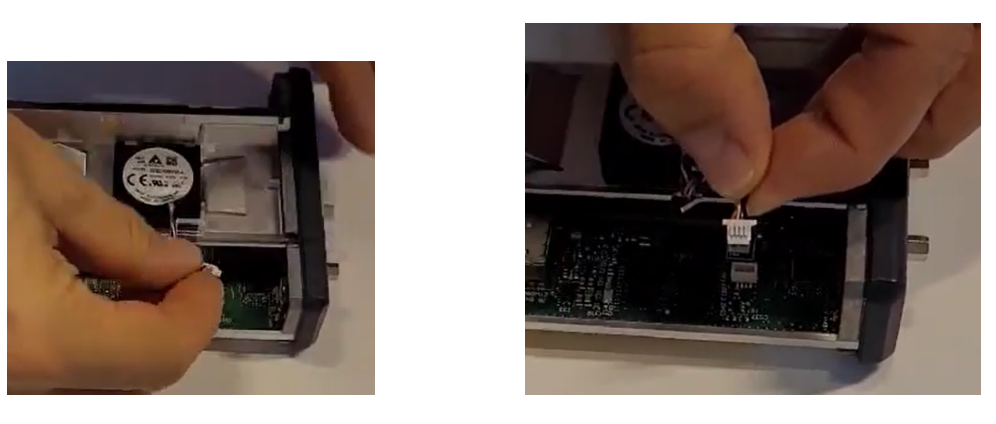

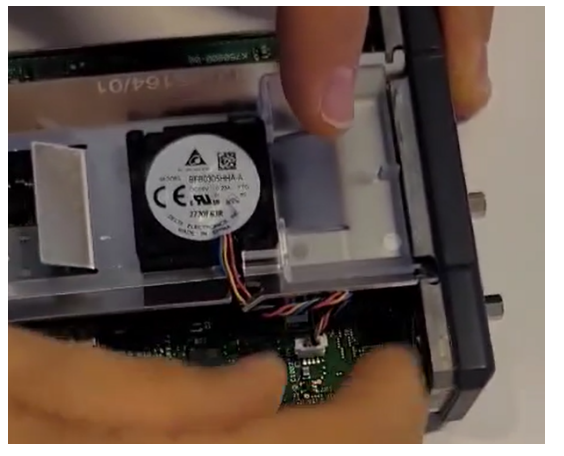

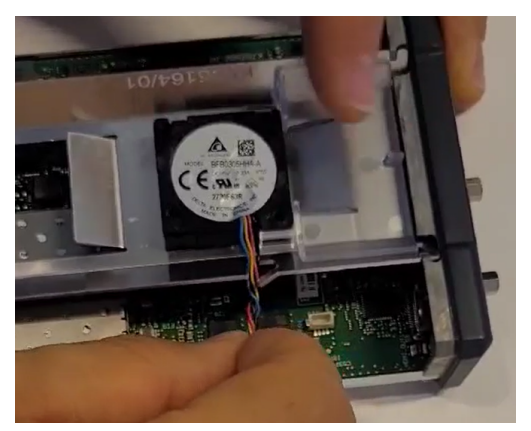

Remove the old fan connector.
Unfix the old fan wires.

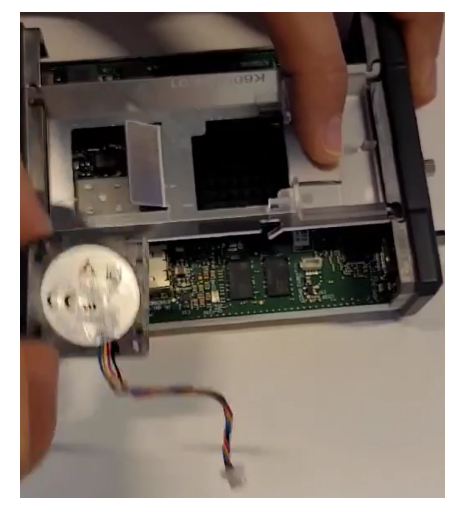

Remove the old fan.
-
Put the new fan

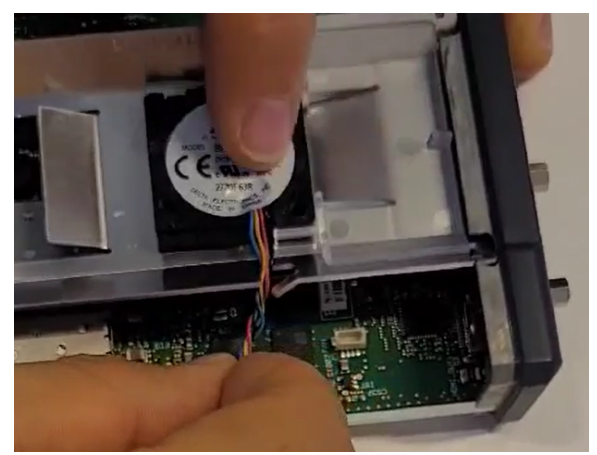

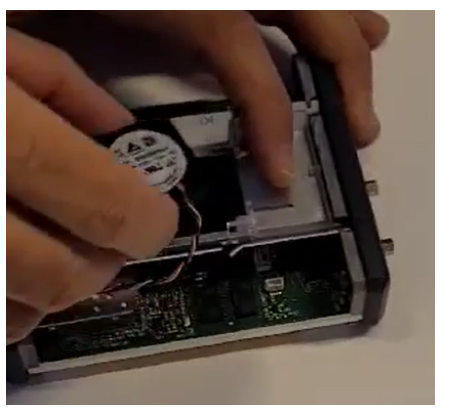

Take the new fan and put it on the device.
CAUTION: Do not put stress on the center of the fan while placing it, otherwise it may break.

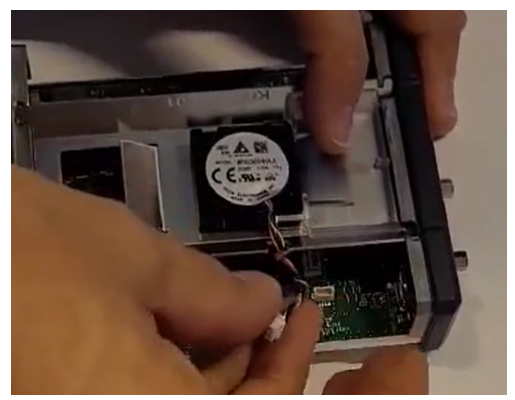

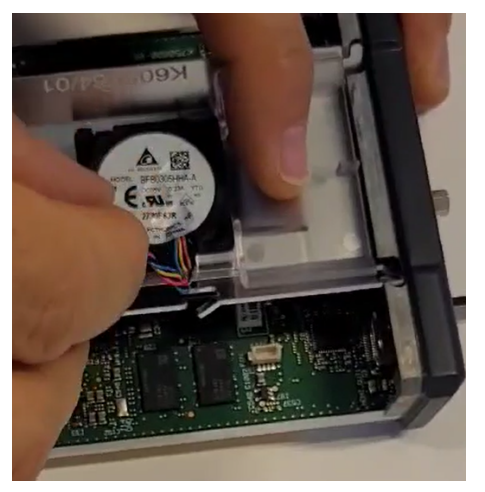

Position the new fan wires correctly (in the notch).

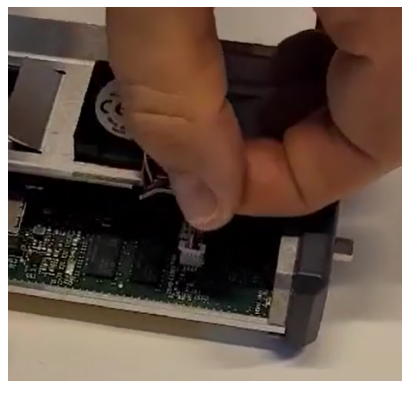

Connect the new fan connector to the PCB board. The connector electrical contacts must be positioned on the correct side so that they make contact with the receivers.
-
Replace the MNA cover
Take the device in one hand, and with the other hand, take the cover with the specialized grippers and replace it applying slight pressure.
When replacing the cover, make sure that the Barco logo is on the side of the video connectors.

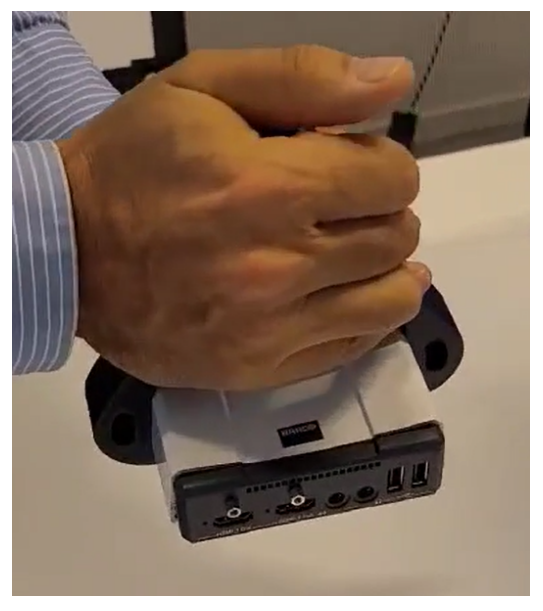

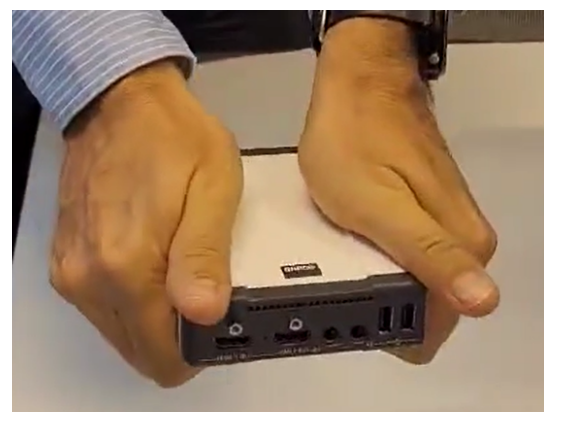

With both hands, squeeze the cover firmly, and check that it is secure all over.
-
Test the new fan
Power the unit and check that the fan is correctly working.
