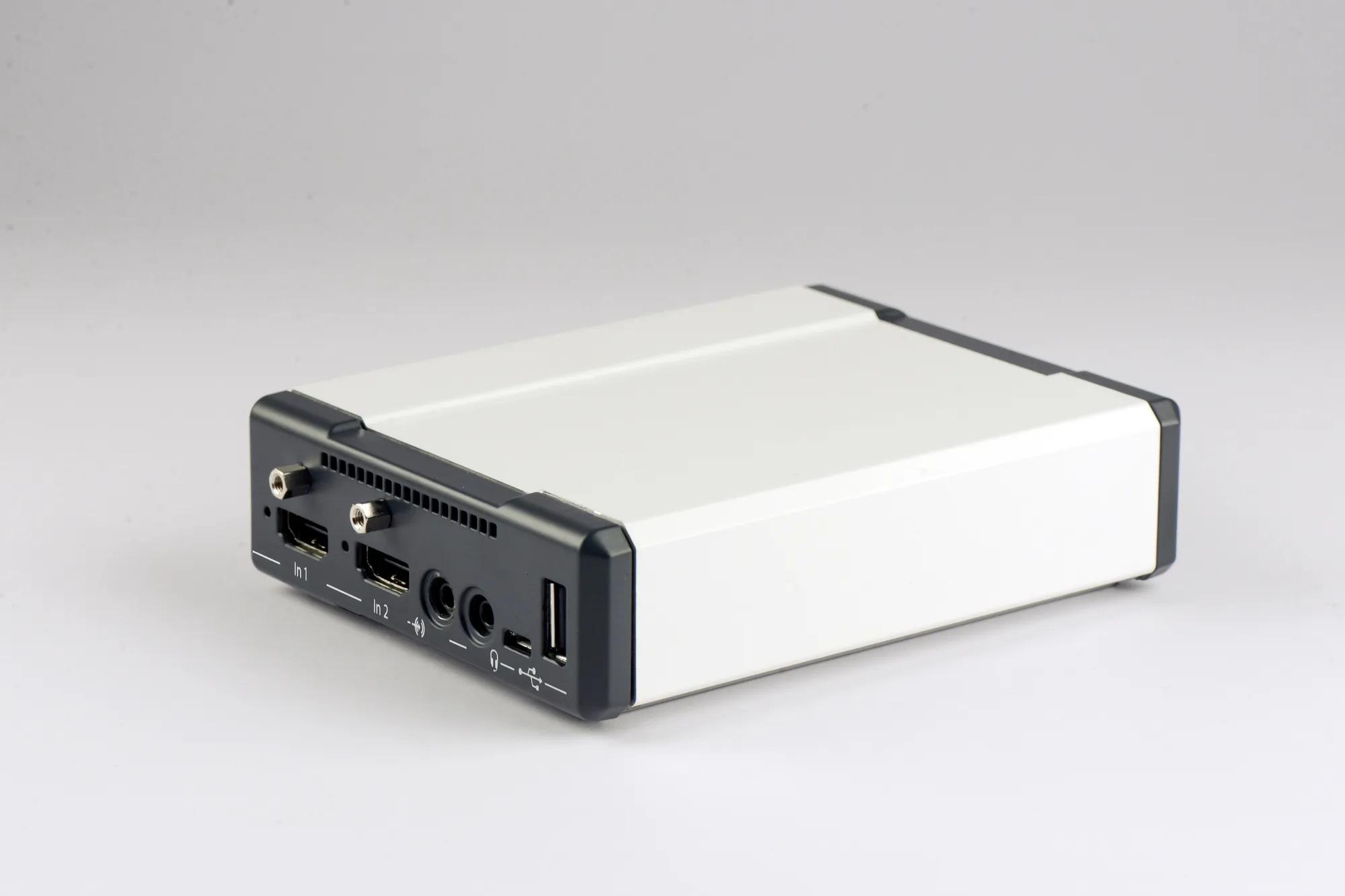

MNA‑440 ENC ‑H
4K AV-to-IP adapter for the OR and hybrid OR with HDMI™ technology
- AV-to-IP conversion
- Up to 4K resolution
- Medical-grade
- Established 3rd generation technology
List price:
(excl. VAT, duties and freight)
Price not available
MNA-440 ENC -H - Medical Network Adapter Encoder
Adapter for the operating room
The MNA-440 ENC -H with HDMI™ technology converts HDMI 2.0 video signals to Nexxis RAW IP packets. Other non-video signals such as audio and USB for keyboard/mouse are also supported. End-to-end video latency is amazingly low and is guaranteed not to exceed a single frame. The video streams that are distributed over the Nexxis network can go up to a resolution of 4K.
Capabilities
The MNA-440 adapters are part of Barco’s Nexxis solution, which provides users with uncompromised networked visualization for the digital operating room. The compact Nexxis AV-to-IP adapters offer simplicity and flexibility while maintaining the highest possible performance standards and fitness for use in demanding medical environments.
As a third generation device, the MNA-440 ENC -H with HDMI™ technology provides the full richness of the established Nexxis platform while:
- increasing future scalability
- improving ease of installation
- adding increased security performance
- reducing ecological footprint
Specifications
Download spec sheetGeneral specifications
- Video conversion
- Converts digital video signals to uncompressed IP streams
- Processing
- 4096x2160p60 on a single input channel or 1920x1200p60 per input channel
- Color depth
- RGB24 8-bit; YCbCr 4:2:0 (8-bit & 10-bit); YCbCr 4:2:2 (8-bit & 10-bit); YCbCr 4:4:4 (8-bit)
- Latency
- Subframe
- Security
- AES 128 encryption of all video, data & control signals
- Encoder system
- N/A
- Video Output
- N/A
- Video Input
- 2x HDMI 2.0 lockable connector
- Network output
- 1x 4K/UHD uncompressed IP stream & 1x downscaled FHD IP stream of native 4K/UHD source Or 2x HD uncompressed IP stream
- IP Connectivity
- 2x 10GE Fiber Optic Interface with SFP+ module
- IP Standards
- Zeroconf, IPv4, IGMP, DHCP, sRTP, sRTCP, 802.1q, AES 128b, HTTP(s)
- USB
- 1x micro-USB type B & 1x USB Type A
- Audio
- Stereo line in and Headset/Stereo line out 15mm length compatible 3.5mm TRRS jack
- Compliance
- N/A
- GPIO
- 2x GPI + 1x GPO via 15mm length compatible 3.5mm TRRS jack Camera trigger is possible via stereo line in (1x) and GPIO (2x) connector
- Nexxis Integration
- Fully integrated in the Nexxis solution, compatible with MNA-1x0, MNA-240 and MNA-4x0 devices
- NexxisPlus Integration
- N/A
- PSU
- External 12Vdc Medical Approved PSU, 100-240VAC 50-60Hz 60W with lockable connector at DC side
- Power Consumption
- Maximum: 25W Typical: 15W
- Size
- 35 mm H x 103 mm W x 131 mm | 1.4" H x 4.1" W x 5.2" D (+/- 2 mm / 0.1")
- Weight
- 0,4 kg (0.88 lbs)
- Temperature
- 5°C to 40°C (41°F to 104°F)
- Humidity
- Maximum 85%
- Altitude
- 700 hPa
- Storage conditions
- Storage temperature: -20°C to 60°C (-4°F to 140°F) Storage relative humidity: 10% to 93% Storage altitude: 500 hPa
- Acoustic noise level
- Typical 32dBA at 20°C at 1m
- Mouting
- Versatile mounting bracket included
- Certifications
- - CB (IEC 60601-1) Informative report - CB (IEC 60950-1) - cRU, RU (cRUus) - Demko - CE medical device class I - UKCA - BIS Registration, IS 13252 (part 1)
- Standards
- Medical Equipment: - IEC 60601-1:2005 + A1:2012 + A2:2020 - IEC 60601-1-6:2010 + A1:2013 + A2:2020 - IEC 60601-1-2: 2014+A1:2020 (Ed.4.1) - ANSI/AAMI ES 60601-1:2005 + A1:2012 + A2:2021 - CAN/CSA-C22.2 No.60601-1:08 + A1: 14 (Reaffirmed 2022) - EN 60601-1:2006 + A1:2013 + A12:2014 + A2:2021 - EN 60601-1-6:2010 + A1:2015 + A2:2021 - EN 60601-1-2:2015 + A1:2021 (Ed.4.1) - FCC class B - ICES-001 Level B ITE Equipment: - IEC 62368-1:2018 - EN IEC 62368-1:2020 + A11:2020 - IS 13252 (Part1): 2010
- 3D Video Support
- The following video formats are supported: 1920x1080@60Hz Line-interleaved Dual-stream 1920x1080@60Hz (using both input channels) UHD/4K60 3D Line interleaved half height: 3840/4096x1080 per view UHD/4K30 3D Dual Stream: UHD/4K resolution for every view at half framerate (30Hz), one hdmi input per view
- Streamback
- N/A
