F400-4K

Up to 4K resolution @60-120Hz framerate for great image performance
Revolutionary static laser-phosphor for speckle-free, outstanding image quality
Rock-solid and true solid-state, fully rated for shock and vibration
Next Gen Barco Pulse for more powerful processing and unified interface across all Barco projectors
5 years warranty as standard
Also available: FS400-4K with dedicated IR for NVG training

Get your quote Where to buy

Price

List price:

(excl. VAT, duties and freight)

Price not available

Show article numbers Hide article numbers

R9010613

F400-4K

Resources & tools

Get product support

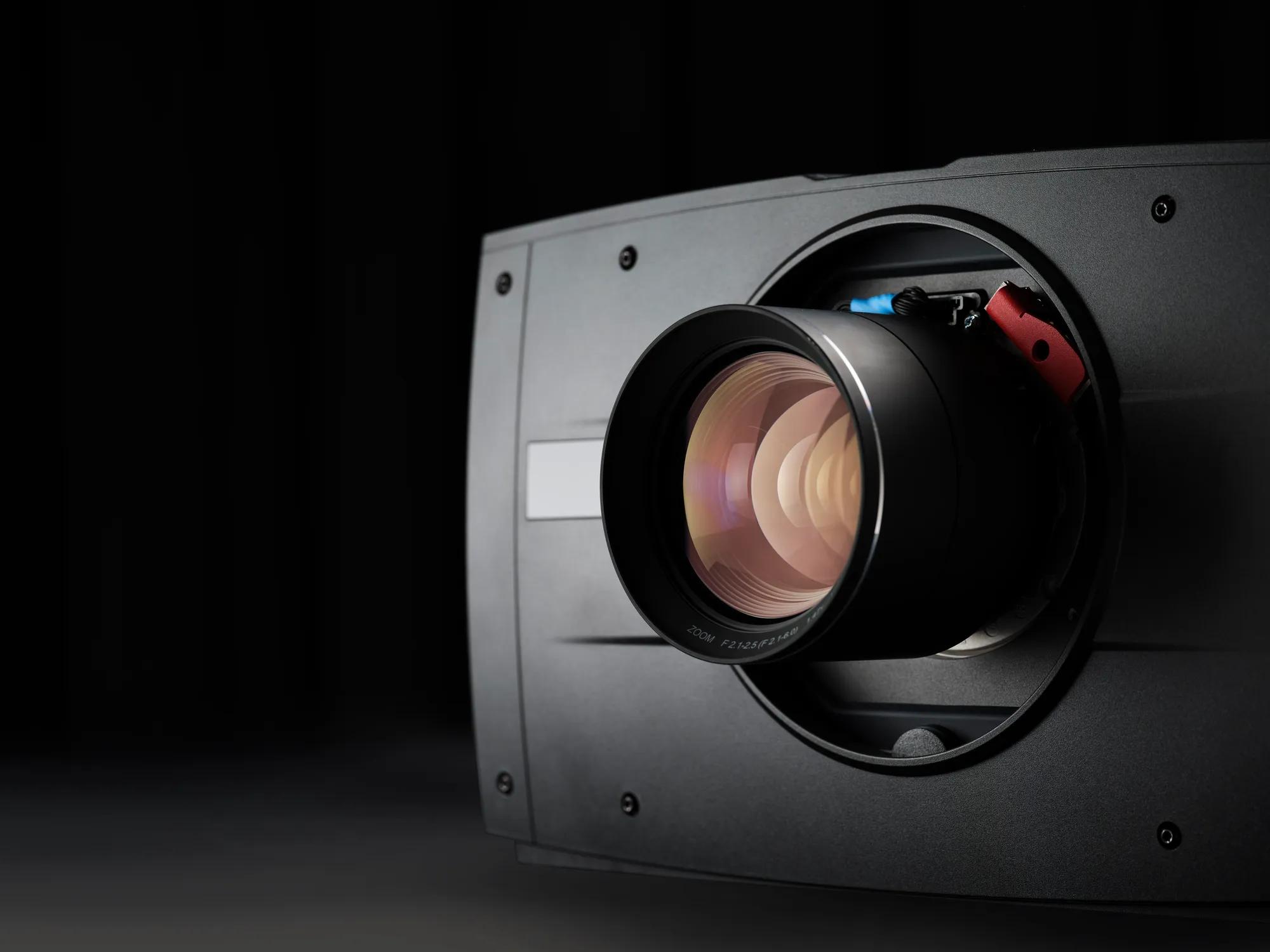

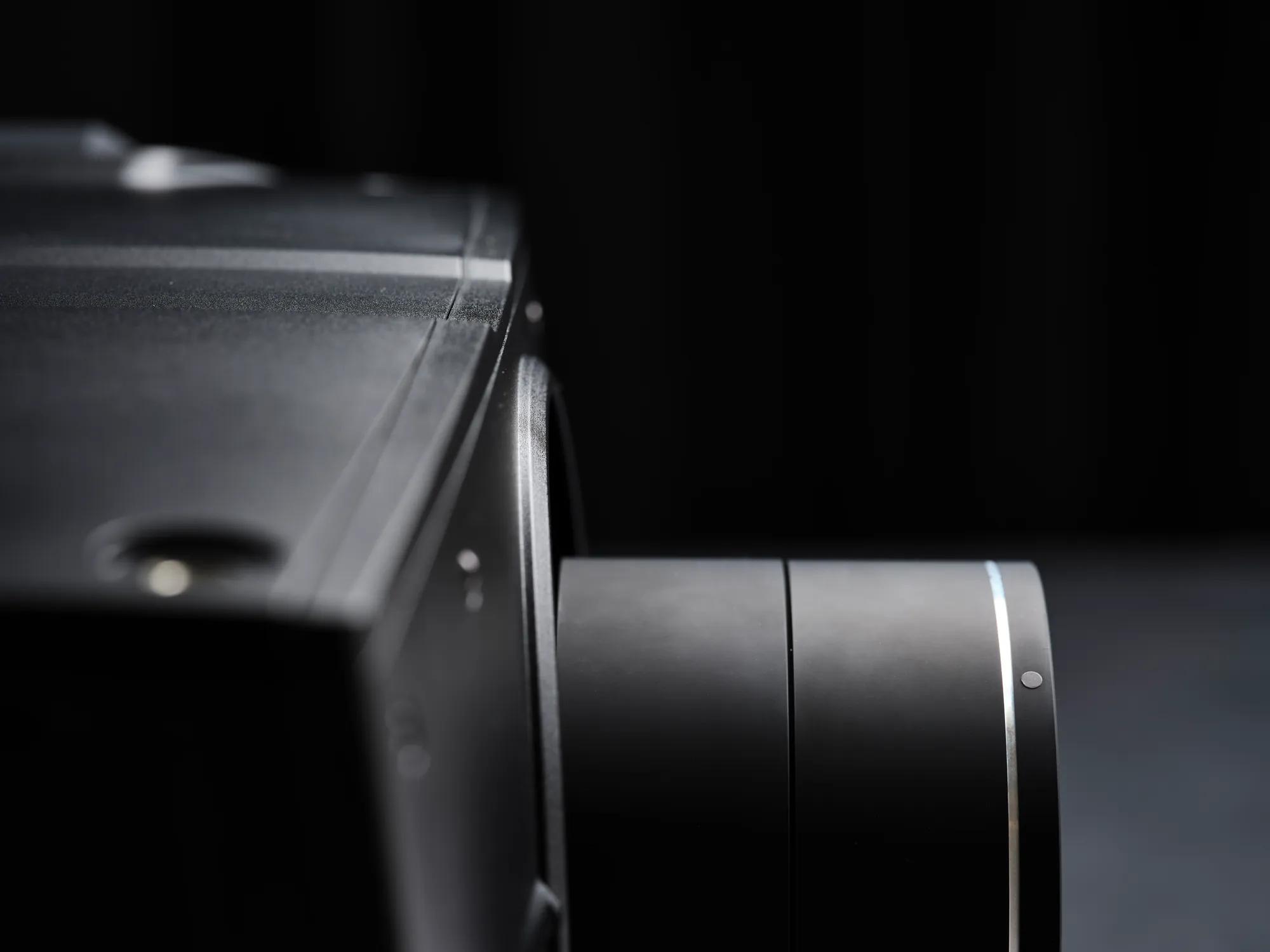

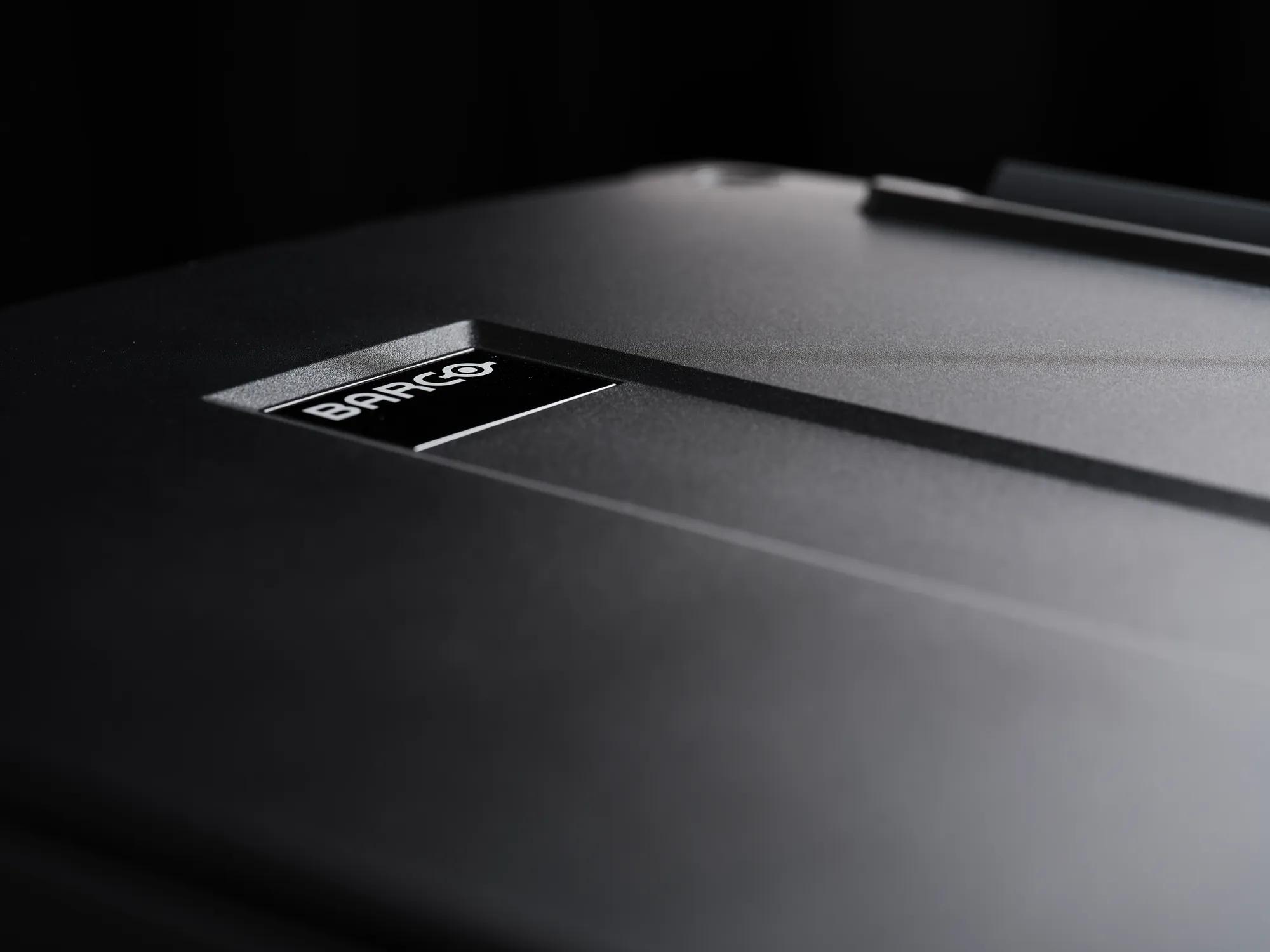

The F400-4K is a true solid-state static laser-phosphor projector designed for the simulation and training market. With a resolution up to 4K, the F400-4K is built for the most challenging environments. The F400-4K was designed specifically for the demands of the training and simulation customer, and breathes the needed sense of realism into every simulation system.

With its processing speeds of up to 120 Hz (at WQXGA resolution), the F400-4K brings all details to life in the most dynamic, high-speed environments. This great performance never comes at a cost of the image quality, which follows the scenario perfectly, at lowest latency.

Designed to perform - in all circumstances

The F400-4K also benefits from the next generation proprietary Barco Pulse electronics - the powerful and flexible software architecture that ensures advanced low-latency processing operations, like pixel-shifting, warping and blending, to take place in one single processing step. This is a huge advantage in the real-time processing environment of most simulator systems today. What's more, our API enables partners to integrate custom management tools and value-add features to complement the projector’s software.

Motion platforms, with their rapid sudden movements, are challenging environments for projectors. The F400-4K is a true solid-state product, which means no moving parts like color or phosphor wheels and is fully rated for shock and vibration. With the electronics, hardware and software built around a unique H-beam shaped aluminum core, the F400-4K has an optimized strength-to-weight ratio providing a sturdy platform as well as easy access if servicing is required. Optional accessories to support the lens on motion-based platforms are also available, contributing to even higher image robustness.

A dedicated FS400 series, designed for NVG stimulation applications, features a powerful IR light source with increased intensity.

Specifications

Download spec sheet

General specifications

Notes: PRELIMINARY SPECIFICATION

Brightness: 5,400 typical ANSI lumens
5,750 typical center lumens

Contrast ratio: 1,800 – 6,000:1 sequential

IR for NVG: No

Brightness uniformity: 90%

Aspect ratio: 16:10

Projector type: 1DLP RGB-LaPh

Resolution: 2,560 x 1,600 (WQXGA native)
3,840 x 2,400 (4K UHD)

Lens type: FLD+ / FLDX

Optical lens shift: Vertical up to 144% depending on iris
Horizontal up to 71% depending on lens
Motorized zoom & Focus + Lens memory (FLDX)
Motorized lens shift (all lenses)
