I600‑4K10
10,000 ISO lumen, 4K UHD, single-chip laser phosphor projector
- Most compact & lightweight design in its category
- Premium 4K UHD image quality thanks to SuperShift®
- DynaBlack® contrast enhancement
- Smooth integration in single- and multi-channel set-ups
- Next-gen Barco Pulse electronics
List price:
(excl. VAT, duties and freight)
Price not available

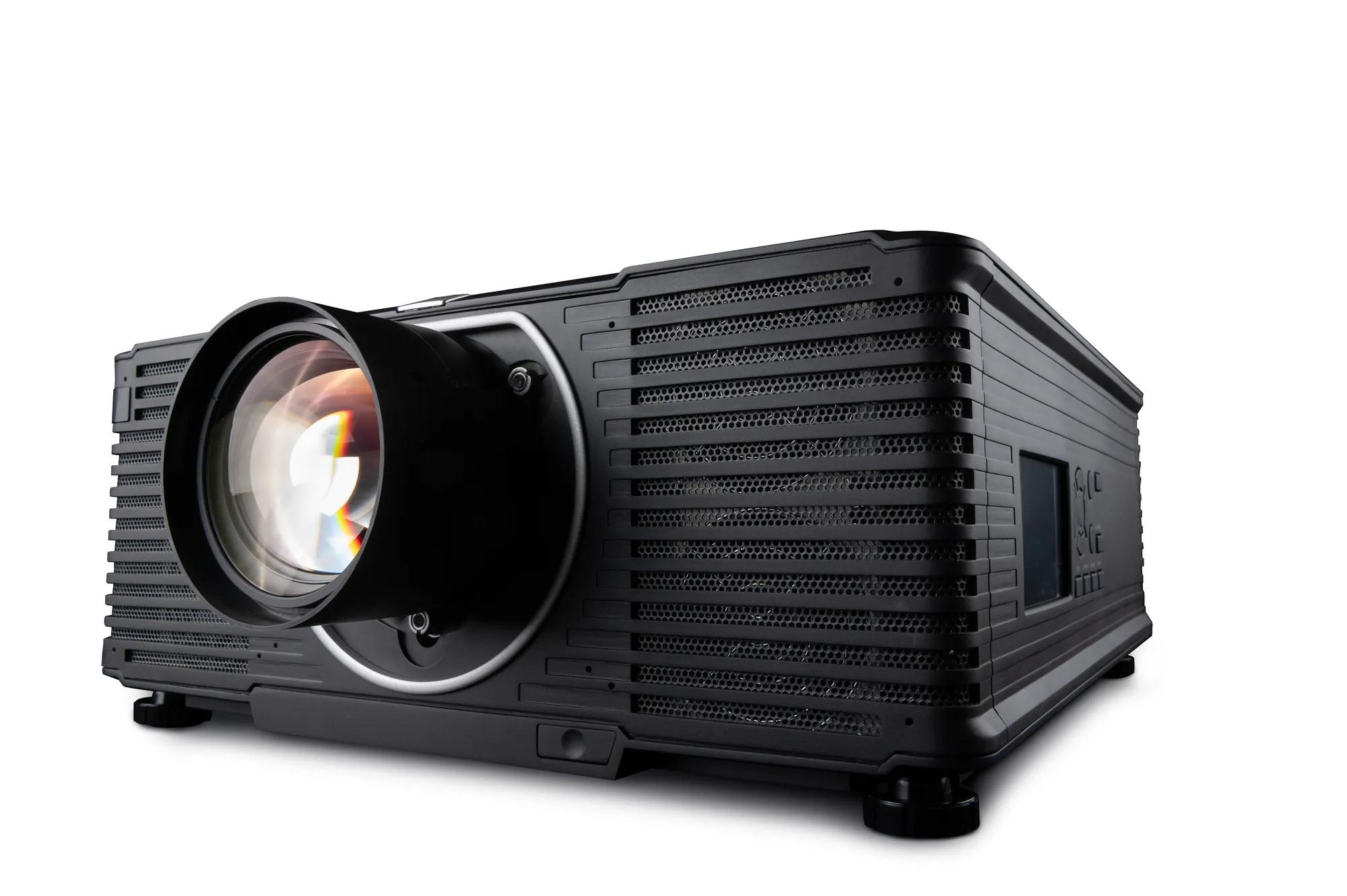

I600-4K10 - Black

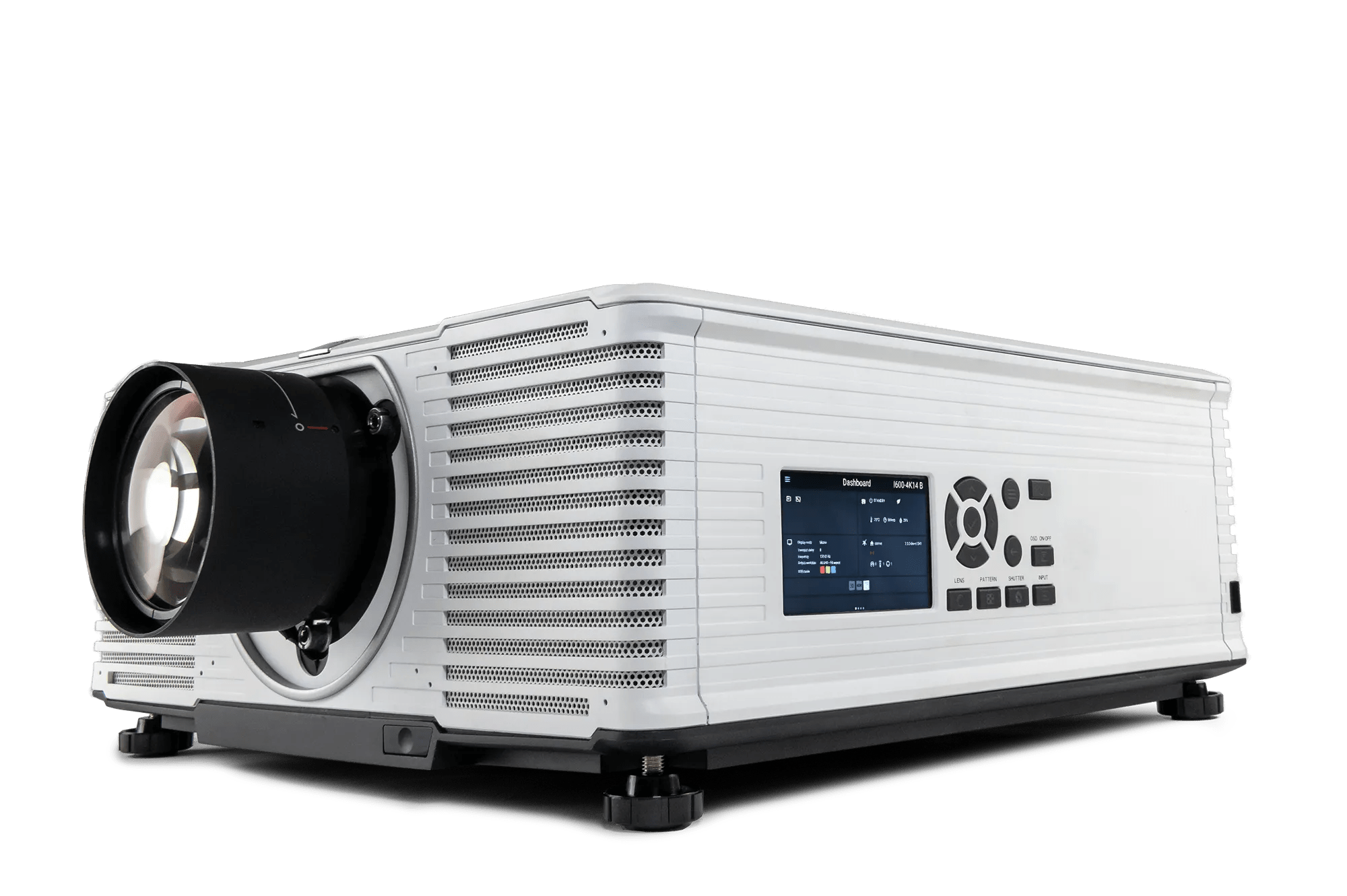

R9010813I600-4K10 - White
The I600-4K10 is a light-weight high-resolution projector with 4K UHD image quality and 10,000 lm brightness. With its focus on long-lasting image quality, multichannel compatibility and its compact size, this single-chip projection platform is your perfect pick, fit for a wide range of applications requiring high-quality content.
Running on the next generation Barco Pulse electronics and our unique Barco SuperShift® technology, the I600 makes for smoother images and sharper pixels at the lowest latency. The laser phosphor light source ensures exceptional color fidelity and image uniformity. Thanks to an internally developed smart algorithm, DynaBlack® enhances the I600 projector contrast ratio up to 20.000:1! With superlative black levels the quality of your content enhances incredibly and the contrast in dark images really stands out.

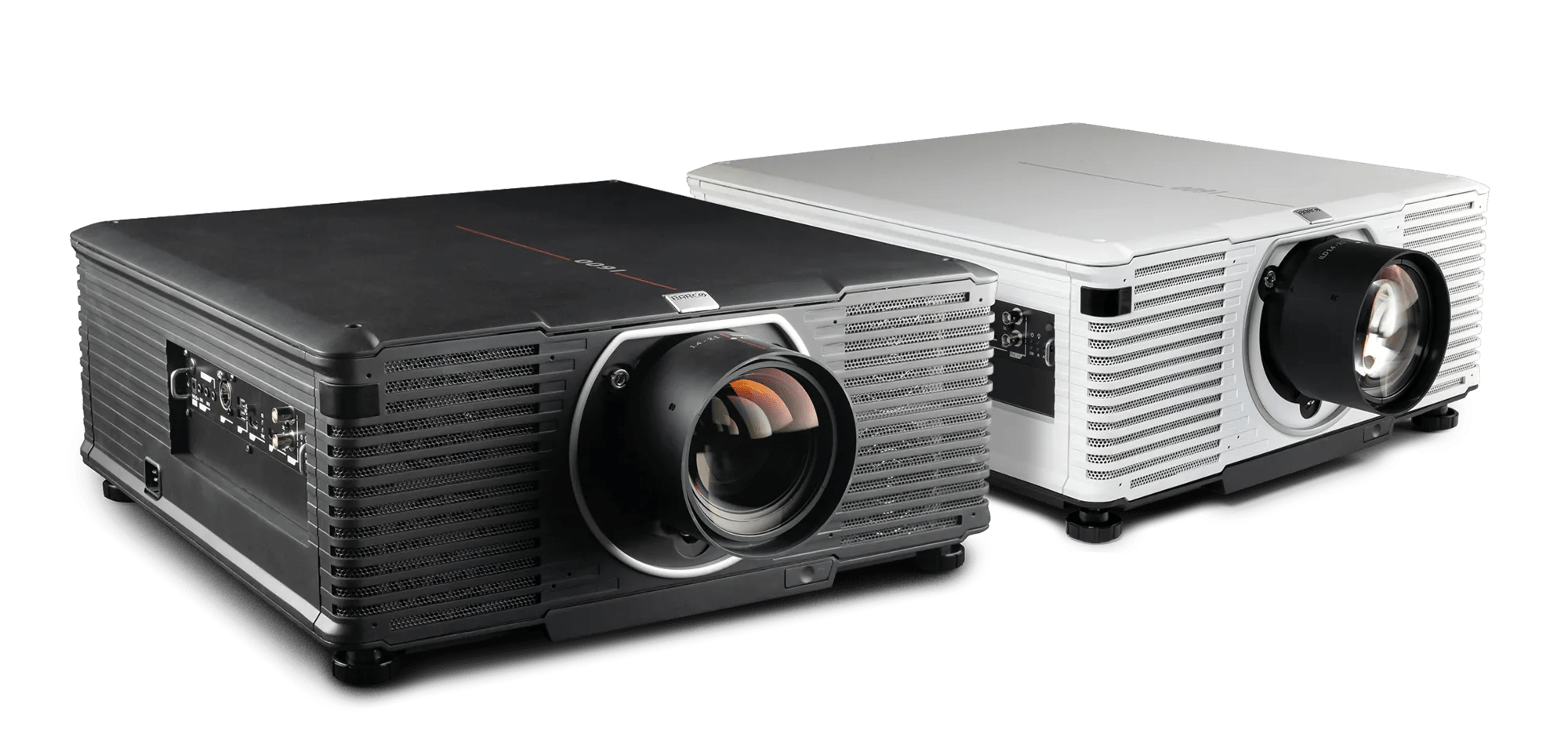

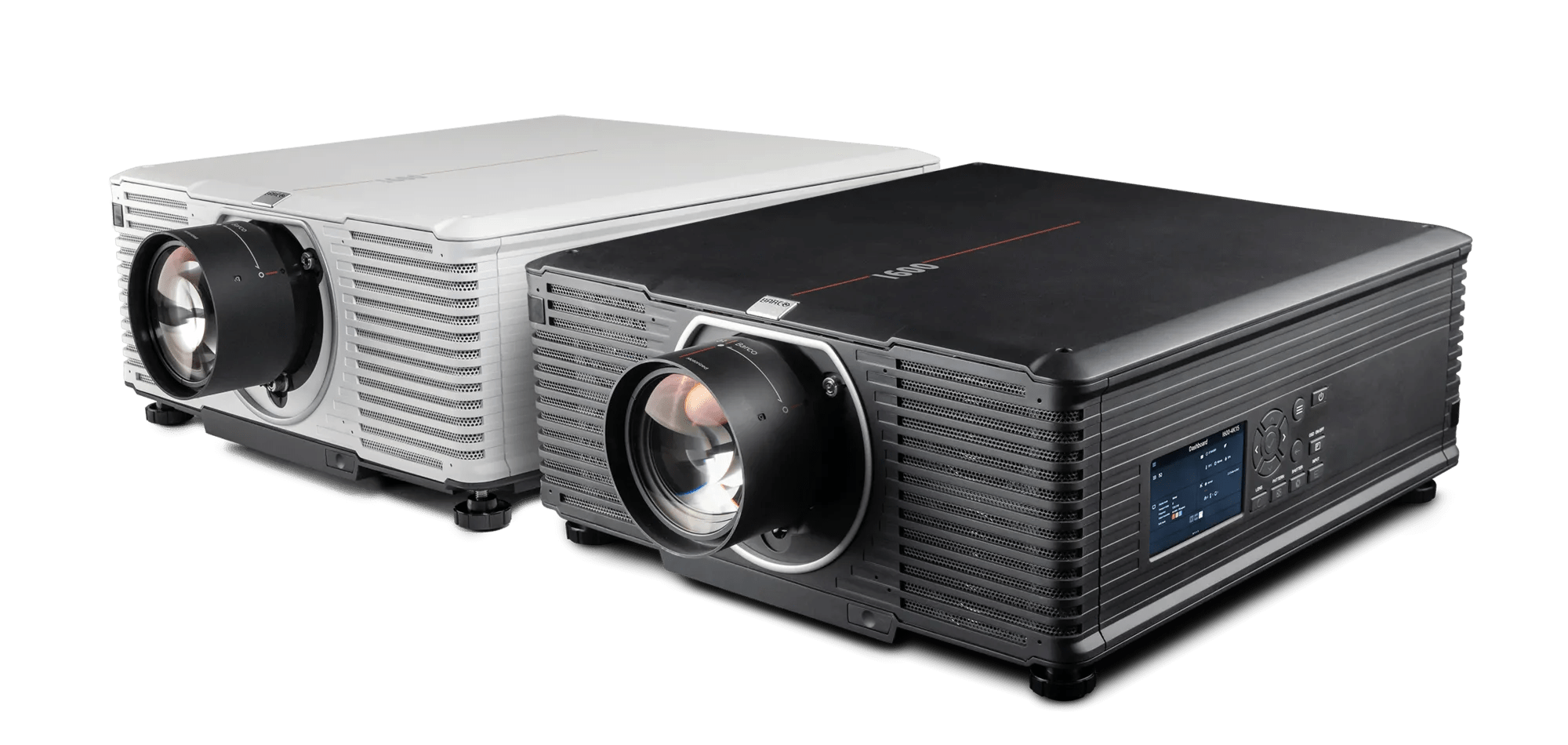

Having an optional input slot, a black or white chassis, a full range of peripherals, and a large fleet of swappable ILD lenses with variable ratios from 0.37 UST to 7.4:1 long-throw at hand, the I600 platform is tailored to match all your single and multi-channel installation needs.
What’s more, the single-chip projector is fully integrated in Barco’s Pulse ecosystem which includes various software tools such as Pulse Prospector, Pulse Mobile App, Pulse toolset and Insights Management Suite to enable easier projector control on-site and in the cloud. In addition, I600 owners can benefit from the Barco swap-based service model and global support.
Specifications
Download spec sheetGeneral specifications
- Notes
- The specifications in this document are preliminary
- Projector type
- 4K UHD 1-chip DLP digital projector
- Technology
- 0.8" DMD™
- IR for NVG
- No
- Resolution
- 3840 x 2400 (4K UHD)
1920 x 1200 (native)
- Brightness
- 10000 ISO lumen
- Brightness uniformity
- >90%
- Contrast ratio
- Full field 1.600:1
Barco DynaBlack® 20.000:1
- Light source
- Blue laser phosphor with inorganic phosphor wheel
- Light source lifetime
- 20.000hrs
- Aspect ratio
- 16:10 Native
- Color space
- REC 709
- Orientation
- 360° rotation no restrictions
- Sealed DLP™ core
- Yes
- 24/7 operation
- Yes
- Processing
- Pulse electronics
- Color correction
- P7 RealColor™
- CLO (constant light output)
- Yes
- Keystone correction
- Yes
- Image processing
- Embedded warp & blend
- 3D
- Active stereoscopic 3D / Passive stereo compatible
- Picture-by-picture
- Two sources simultaneously *
- Lens type
- ILD
- Optical lens shift
- Vertical up to 110% depending on lens
Horizontal up to 30% depending on lens
- Throw Ratio
- From 0.37 to 7.4
- Lens range
- ILD lenses - 0.37:1 / 0.5:1 / 0.65-0.8:1 / 0.8-1.0:1 / 1.0-1.4:1 / 1.4-2.1:1 / 2.1-4.0:1 / 4.0-7.4:1
- Prime lenses
- N/A
- Inputs
- HDMI™2.1 (HDCP2.2) / DP1.4 / RJ45 Ethernet / USB(5v) / 12V out / BNC 3D sync in-out
- Optional Inputs
- Quad DP1.2
Fiber SFP
HDBaseT V3, HDCP 2.2 compatible
Input Module DP1.2 HDMI™2.0 DUAL HDBaseT Quad 12G (+loop)
- Input resolutions
- Including and up to:
WUXGA: 1920x1200@240Hz
4K UHD: 3840x2400@120Hz
- Input color depth
- up to 36 bpp
- Software tools
- Projector Toolset + Android app + iOS app + IMS
- Control
- IR RJ45
- Network connection
- 10/100/1000 Mbit, Wifi (through optional dongle)
- User interface

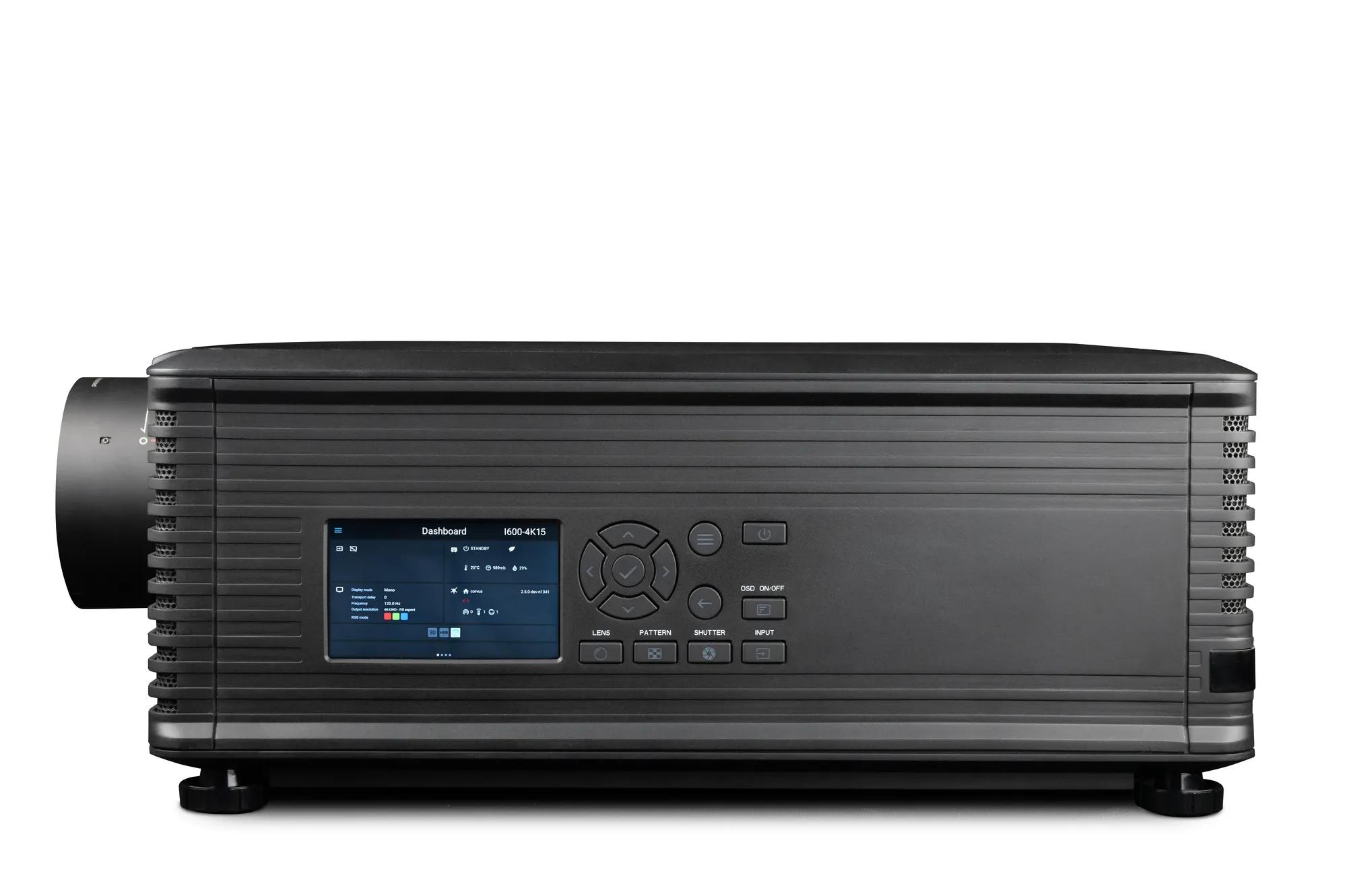

- LCD touch local keypath remote control wired remote control
- Web browser
- Yes
- Power requirements
- 100-240V / 15A-6A / 50-60Hz
- Power consumption
- 860W Typical
- Standby power
- < 0.5W
- Dissipation BTU
- 2900 BTU/h
- Noise level (typical at 25°C/77°F)
- 40dB(A)
- Operating temperature
- 5°-40°C / 41°-104°F (sea level)
- Operating humidity
- 10% - 80% RH (non-condensed)
- Storage temperature
- -20 to 60 °C
- Storage humidity
- 10 - 90% RH (non-condensed)
- Dimensions (WxLxH)
- without feet: 504x524x207mm / 19.8 x 20.6 x 8.1in
- Weight
- without lens: 23.6 kg / 52.0 lbs
- Standard accessories
- Power cord, wireless remote control
- Housing
- Plastic cover
- Certifications
- Compliant with UL: UL 62368-1, EN IEC 62368-1, and GB 4943.1;
Complies with FCC rules & regulations: Part 15 Class A and CE EN55022 Class A, GB/T 9254.1 A级 and GB 17625.1;
RoHS;
- Warranty
- Limited 3 years on parts and labor
Extendable up to 5 years
Service: single swap
- Blend
- horizontal and vertical edge blending
- *
- Supported when using of the optional 4x1.2 DP input board
EssentialCare for Entertainment
EssentialCare maintenance contract & supplementary service options
- 24/7 access to priority support
- Rely on upfront replacements
- Enjoy the peace-of-mind
- Global coverage
peripherals
3D eyewear Volfoni
accessories
I600 flight case
Flight case for I600 in adjustable rigging frame (frame not included)
All-in-one remote projector management software
accessories-for-smooth-installation
I600 rigging frame
Adjustable rigging frame for I600
lenses
ILD lens (0.5:1)
input-modules
Quad DP1.2
