Enterprise‑class Server R350‑D1
Barco certified enterprise-class server for networked visualization environment
List price:
(excl. VAT, duties and freight)
Price not available

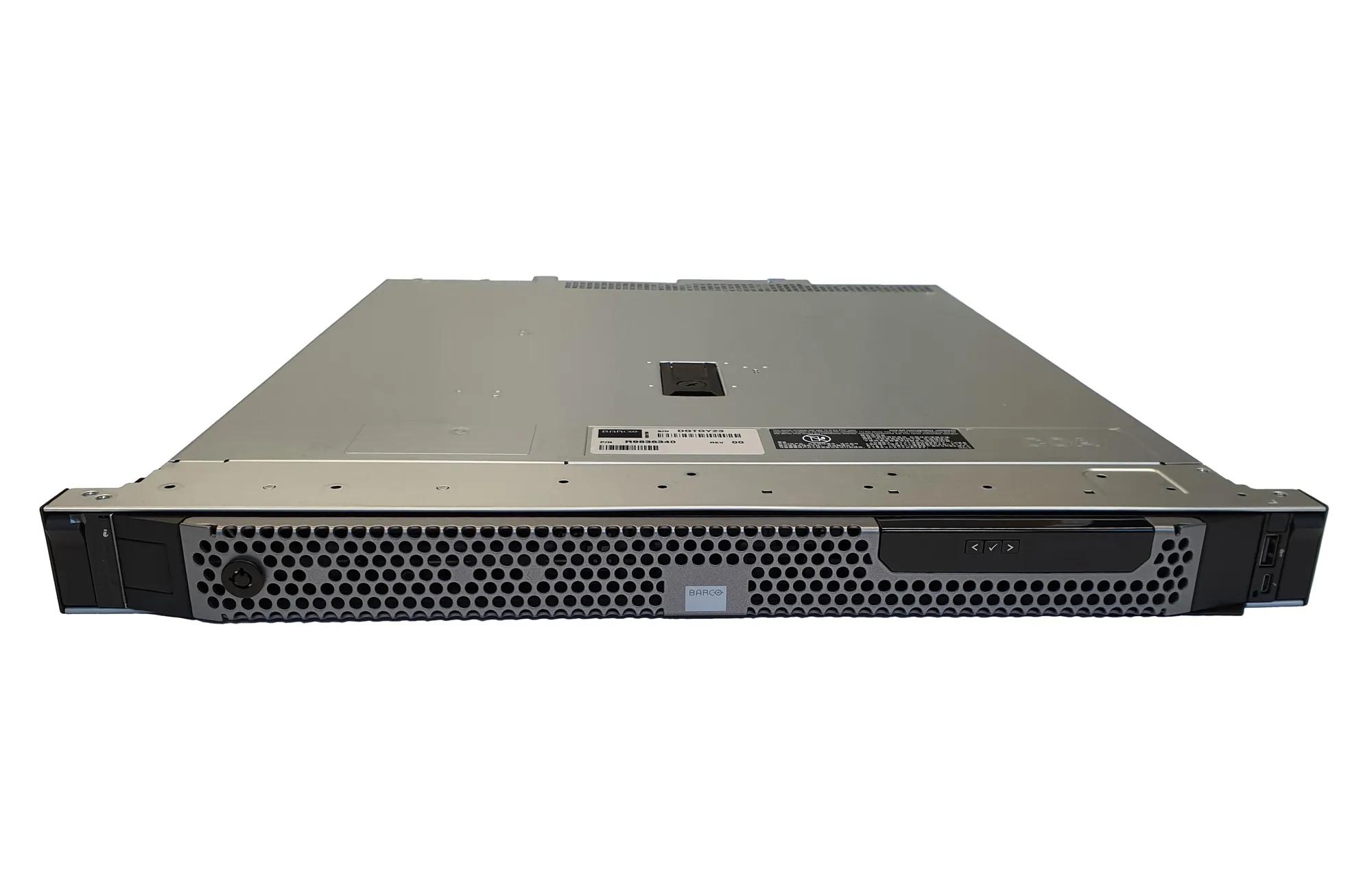

R350 (E77S) 1U Rackmount Server
The Enterprise-class Server R350-D1 is the successor of the Enterprise-class Server R340-D1.
It is a powerful computing server handling multiple tasks in a networked visualization environment. It unleashes the power of the latest Quad-Core Intel® Xeon® processors, and best-in-class media integration capabilities. The Enterprise-class Server R350-D1 represents a fully qualified platform for Barco's CMS network-centric solution.
Scalable, fully network centric integration
Perfect choice as a hardware server platform for:
• Barco TransForm N Management Server
• Barco OpSpace Server
• Supporting small up to very large multi-node and multi-source system setups
Robustness and reliability
• 19” rack mounted chassis
• Redundancy options
• Trouble-free, Barco-qualified system component
• Dell PowerEdge R350 based OEM model guarantees operational efficiency and server reliability
Specifications
Download spec sheetGeneral specifications
- CPU
- Intel® XEON® E2324G
- Memory
- 16 GB
- Hard disk
- 2 x 480 GB Solid State Drive, Hot-plug RAID-1
- Network connection
- 2x1Gb/s LAN
- Power supply
- 100-240V AC., 4.8 A-2.4A, 50/60 Hz
- Power consumption
- 2x600W Hot-plug redundant
- Redundancy
- Hot-plug redundant power supply
RAID-1 redundant disk drives
- Weight
- max. 11.74 kg / 25.88 lbs
- Housing
- 19" rackmount 1U
- Dimensions
- 434 x 42.9 x 596 mm ( 17.09" x 1.7" x 23.5")
System integration
- Supported systems
- Barco TransForm N Management Server
- System management
- IPMI 2.0, SNMP (iDRAC9 Express)
Operating conditions
- Noise Level
- max. 40 dB(A)
- Temperature range
- 10-35°C | 50-95°F
- Humidity
- max. 80% (non-condensing)
- Regulation Compliance
- CE, CB, UL, EAC, CCC, FCC
- Order Information
- R9836350 Enterprise-class Server R350-D1
R983634099 R340/R350 Sliding Rails & Cable Management Arm
