- Built for endoscopy imaging
- All-round connectivity
- Safe for near-patient use
List price:
(excl. VAT, duties and freight)
Price not available

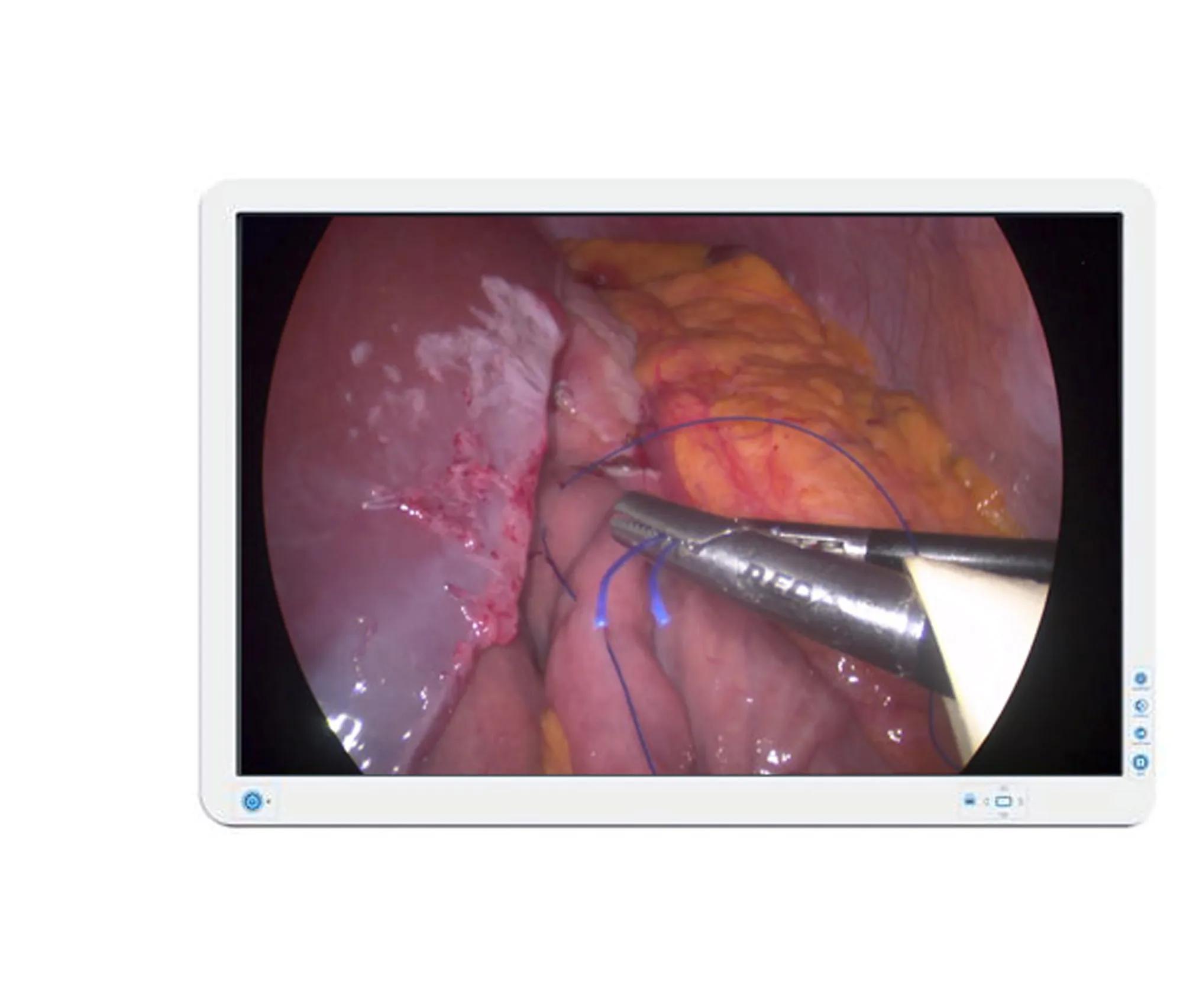

AMM240ED - 24" Surgical Display, BARCO
Barco's AMM240ED is a 24-inch near-patient surgical display with LED backlights, featuring a 1920x1200 resolution. Purpose-built for endoscopy imaging, the AMM240ED is a cost-effective but extremely reliable display. Surgical video and images can be placed in Picture-by-Picture mode with independent adjustments.
All-round connectivity
The AMM240ED supports a broad range of input types including DVI, VGA, RGB, Component & Composite Video as well as HD/SD SDI.
Safe for daily use near patients
Thanks to the sealed design (rated IP22), a protective filter and cable cover, the AMM240ED is safe for use near patients. It also ensures safe and easy mounting onto surgical arms thanks to the VESA compliance.
Specifications
Download spec sheetGeneral specifications
- Screen technology
- TFT AM LCD / LED Backlight
- Active screen size (diagonal)
- 611.3 mm (24.07")
- Active screen size (H x V)
- 520.4 x 326 mm (20.46 x 12.83")
- Aspect ratio
- 16:10
- Resolution
- 1920 x 1200
- Pixel pitch
- 0.27 mm
- Color support
- 16.7 Mio (8 bit)
- Viewing angle
- 178° Hor /178° Ver
- Luminance
- 300 cd/m²
- Contrast ratio
- 1000:1
- Gamma curve
- 1.8, 1.9, 1.95, 2.1,2.2, 2.3, 2.4
- Front protection screen
- anti-reflective PMMA protective cover
- Video inputs
- 1xDVI-I
1x HD15
1x Y/C
1x 3G-SDI
1x RGBS / YPbPr
- Video outputs
- 1x DVI-I
1x 3G-SDI
- Features
- Picture in Picture
- External power supply
- AC input : 90-264 VAC / 47-63 Hz auto-switch
DC Output : ±24VDC / 1.7A
- Dimensions (W x H x D)
- 570 x 386.9 x 63.2 mm (22,4 x 15.2 x 2.5")
- Net weight
- 7.35 Kg
- Mounting standard
- 75x75 VESA / 100x100 mm VESA
- Operating temperature
- 10°C-40°C
- Storage temperature
- -18°C-60°C
- Operating humidity
- 25%-75% non-condensing
- Storage humidity
- 15%-90% non-condensing
- Certification and compliance
- Medical Safety Compliance:
CE (Medical Device Class I)
IEC 60601-1: 2012 Edition 3.1
EN 60601-1: 2006 +A1:2013
ANSI/AAMI ES 60601-1: 2005/(R)2012
A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012
CAN/CSA-C22.2 No. 60601-1: 14
AS/NZS 3200-1:1988
CCC (GB4943.1-2011)
CB-ITE (IEC 60950-1:2005 (2nd Ed); Am1:2009 +Am2:2013
Green Compliance:
RoHS-2, REACH, WEEE
- Protection rating
- IP22
- Warranty
- 2 years
