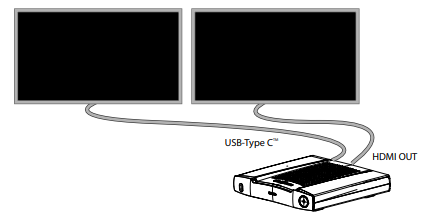

For dual display setup (KB7868) with the CX-50 Gen2, one display connects with the HDMI™ output of the Base Unit and the second display connects to the USB Type C output port of the Base Unit.
In case one of the displays does not support video via USB, a USB-C to HDMI™ adapter can be used, although any type or brand of adapter can be used, Barco has tested and validated the following brands and models.
| Brand | Description | Model Name | Resolution |
|---|---|---|---|
| LC-dolita | 8 in 1 USB C Ethernet Hub, USB C to HDMI Adapter | B07KY8DW5P | 4K@30Hz |
| USB C Hub,HDMI 4K Adapter | X000X0JDXF | 4K@30Hz | |
| j5create | USB3.1 Type-C to 4K HDMI Adapter | JCA153 | 4K@60Hz |
| moshi | USB-C Multiport Adapter | 99MO084204 | 4K@30Hz |
| USB-C Multimedia Adapter | 99MO084213 | 4K@30Hz | |
| USB-C to HDMI Adapter | 99MO084202 | 4K@60Hz |
Please note that the availability of converters may vary. Information is accurate as of the KB article’s initial release, and some converters may not be available at the time of your query.
