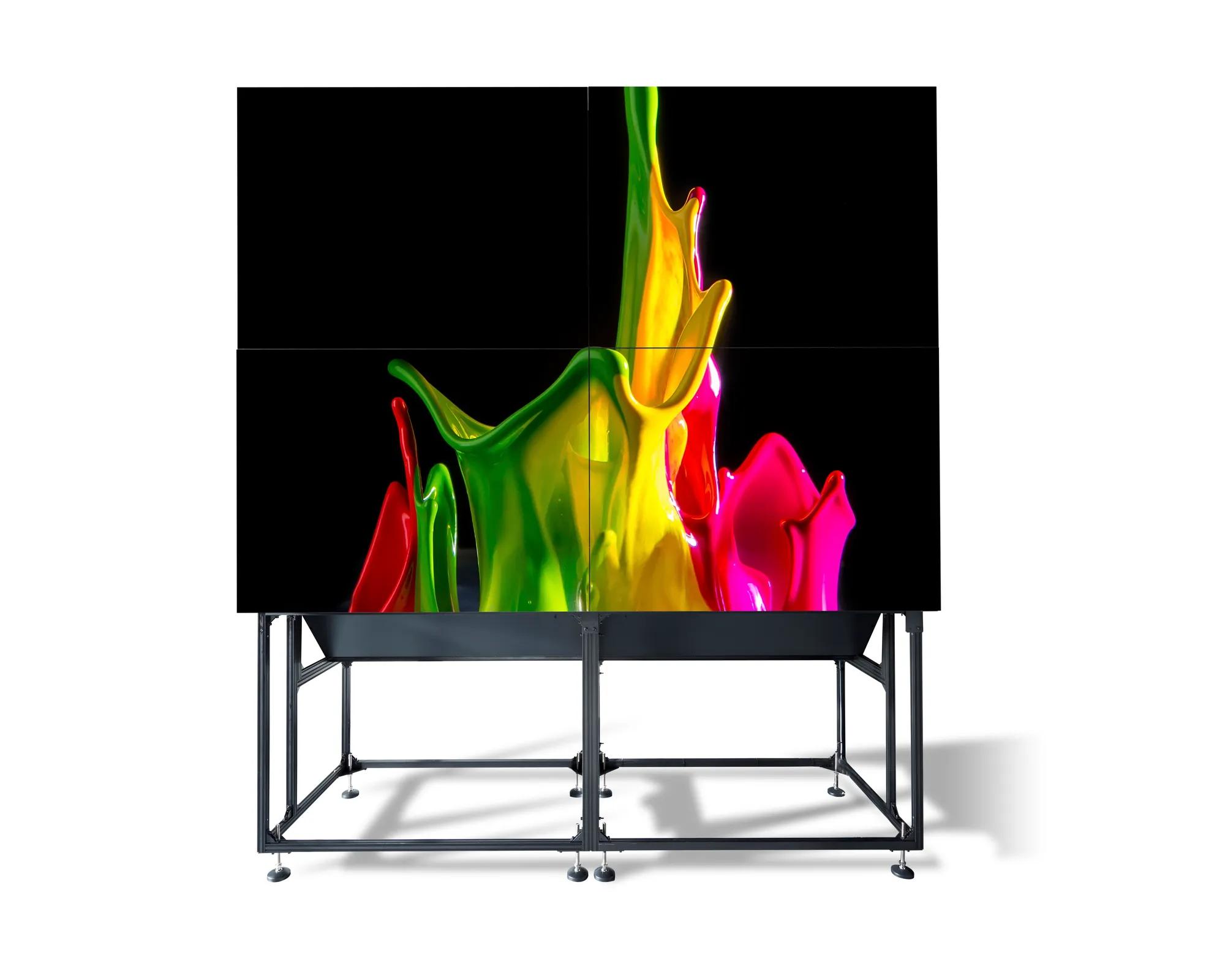

OverView KVL‑621
Industry-standard 60” full HD 16:9 LED video wall
With the OverView KVL series, Barco has launched a display range that has a well balanced set of essential features, perfectly fitting the standard requirements. All this comes without any compromise in quality, and with a special focus on limiting both the initial purchase as the runtime cost.
The OverView KVL-621 is an easy to operate 16:9 LED-lit projection module that has been designed to offer the typical detail, brightness, and features in full HD resolution for demanding small to medium-sized control rooms.
Unmatched LED lifetime
Barco’s unique cooling system significantly reduces the temperature of the LEDs. This not only prolongs the lifetime of the LEDs (>80,000 hrs), but also allows for durably higher brightness levels. The long LED lifetime guarantees a great uptime and very low overhead costs. The latest LED technology ensures that the power consumption is 30% lower than comparable products.
Comfortable viewing experience
To ensure good wall uniformity in terms of color and brightness levels, the OverView KVL-621 comes with Barco’s Sense5 automatic calibration system. This system works with an advanced color sensor that continuously measures the primary color levels of the entire wall, and adjusts white point and color when needed. This results in a significantly more accurate cube to cube uniformity, over the complete runtime. Furthermore, the module’s robust structure makes the OverView KVL-621 suitable for use in industrial environments.
Key characteristics
- 6x redundancy of LEDs (per color)
- Sense5 automatic white point and primary colors calibration, for brightness and color stability
- Unique cooling system ensures longer LED lifetime
- Low power design
- Wide color gamut
- Less disposables, less waste
- 16:9 aspect ratio
Specifications
Download spec sheetGeneral specifications
- Signal input/output
- Dual link DVI in / Dual link DVI out
- Pixel clock
- 320 MHz
- Input frequency
- 24 – 62 Hz
- Genlock
- 49 – 61 Hz
- Graphical user interface
- All settings and operational parameters
- Warranty
- 2 years
- Brightness
- on-screen: 320 Cd/m²
- Display technology
- DLP rear projection
- Color gamut
- EBU
- Signal processing
- Loop through up to 10 cubes
Cropping / upscaling
- Direct ethernet access
- Built-in web server
- White point
- 6500K, 3200K fix
- Third party interface
- WEB service API (optional)
- Light source
- Light source 6x redundancy for each of 3 LEDs
- Color stability
- Self calibration with Sense5 based on advanced color sensor
- Input voltage
- 90 – 240 V, 50-60Hz
- Brightness uniformity
- >95%
- Resolution
- 1920x1080
- Conditions for operation
- 10°C-40°C, 80% humidity (nc)
- Light source lifetime
- > 60,000h (typ.)
> 80,000h (eco)
MTBF LED: > 500,000h
- Screen
- WV-FEL
- Power
- 90W (eco)
150W (typ.)
180W (max)
- Dimensions
- Diagonal: 60"
- Width: 1328 mm | 52"
- Height: 747 mm | 29"
- Depth: 1056 mm | 42"
- Weight: 106.5 kg | 234.8 lbs
- Screen gap
- < 1 mm | 0.04" (@25°C)
< 0.2 mm | 0.0079" (at higher temperatures)
- Heat dissipation
- 310 BTU/h (eco)
510 BTU/h (typ.)
610 BTU/h (max)
- On-screen contrast
- 1,200,000:1 (dynamic)
1,600:1 (typ)
