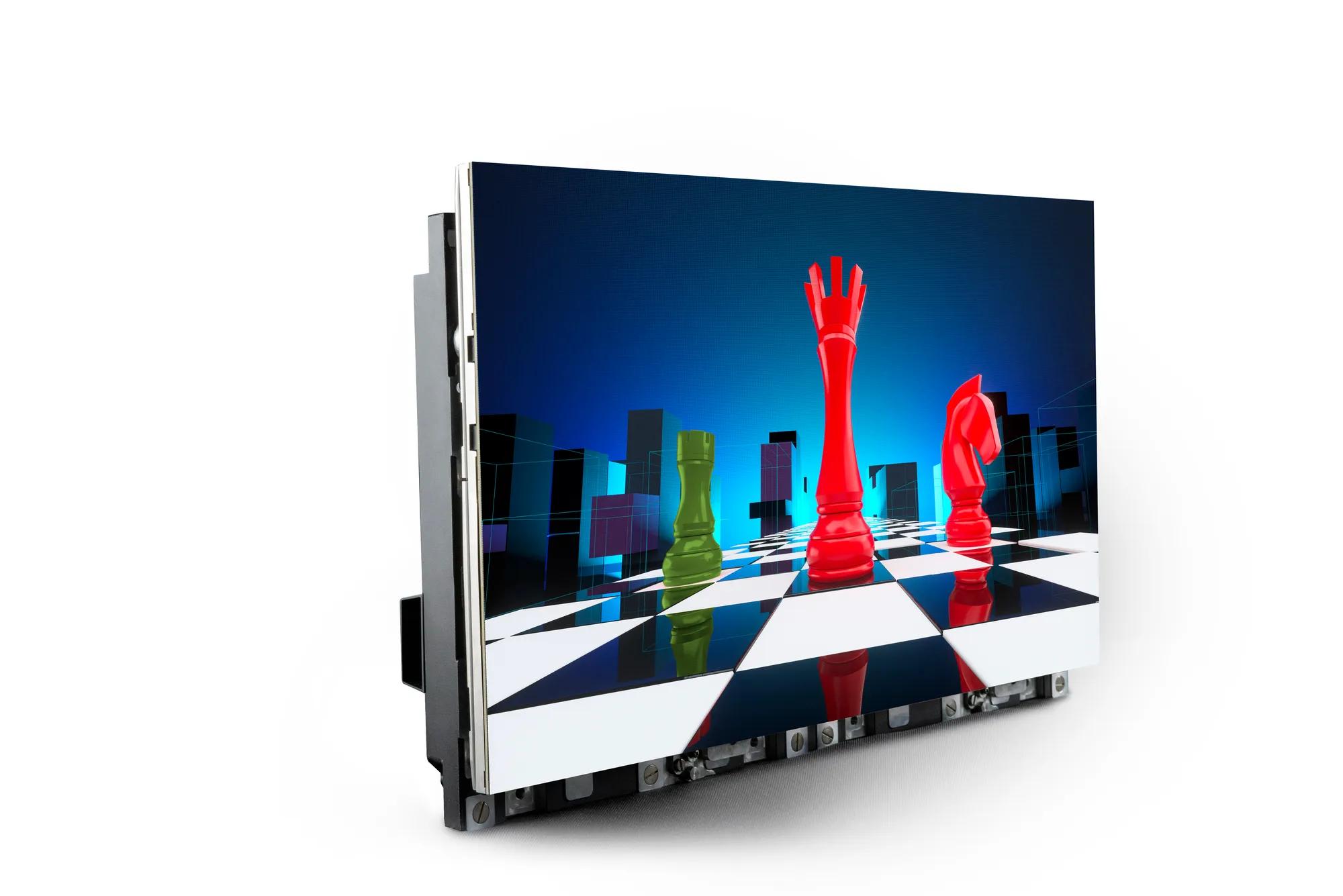

TruePix TP0.9‑I
0.9 mm pixel pitch, high-res indoor LED display
- Smart engineering guarantees truly seamless outcomes
- High brightness, less energy consumption
- Smooth and efficient operations, 24/7
- Superb color accuracy and contrast, under all lighting conditions
- Reduced ecological footprint
- TÜV Eye Comfort certification
- Up to 10 years of dedicated service and support
TruePix TP0.9-I is Barco’s new flagship indoor high-resolution LED platform. The 27.5” inch tiles, with a 16:9 aspect ratio, have a pixel pitch of only 0.9 mm. TruePix is designed for control room, corporate and broadcast visualization applications and supports both environments exposed to ambient light and controlled lighting environments.
TP0.9-I is designed to be even more reliable, optimize the viewing comfort and reduce power consumption. With its 5 star rating TÜV Eye Comfort certification, a program under which products are evaluated on eye wellness, TruePix TP0.9-I can truly be used in 24/7 critical applications.
High brightness, low power consumption
The TP0.9-I benefits from the flip chip, 'common cathode' and IMD (4-in-1 pixel package) technology, making it more robust, energy efficient and further improves the black levels to reach a spectacular contrast. Another benefit is a higher brightness of more than 1800 nit (and in peak brightness over 2300 nit) which further enhances the contrast and detail of the displayed content. Power consumption is a lot lower than conventional solutions, doubling the energy efficiency.
Truly seamless outcomes
TruePix brings content to life as intended and ensures predictable, truly seamless outcomes, by combining smart engineering and Infinipix™ Gen2, the next generation of Infinipix™. Smooth and efficient operations are guaranteed 24/7, next to full peace of mind.
Barco TruePix’ smart engineering introduces a unique mechanical concept for risk-free and precise installations, eliminating visual distortion. This unmatched seamlessness and flatness are achieved through guided module placement and self-leveling mounts. The next generation of Barco’s proprietary Infinipix™ Gen2 guarantees full image integrity at any brightness level, together with superb color accuracy. It flexibly and automatically supports any content need while reducing eye fatigue.
Peace of mind at any time
Smooth and efficient operations are guaranteed 24/7 through uninterrupted data flows. Users can reduce the carbon footprint by using the EcoPower standby mode. Up to 10 years of dedicated service and support (ensuring a uniform viewing experience) to allow for peace of mind during the entire product lifetime.
Specifications
Download spec sheetLED tiles
- Pixel pitch
- 0.953
- Pixel per module
- 640x360 (HxV)
- Aspect ratio
- 16:9
- LED lifetime
- 100.000h (video - 50% brightness)
- Brightness
- >1800 nit
- Peak brightness
- >2300 nit
- Internal processing
- 23 bit
- Color depth
- 16 bit (281 trillion colors)
- Shaders
- No
- Control
- Infinpix™ Gen2
- Refresh rate @60Hz
- 7.680 Hz
- 3D
- 3D Supported
- Frame rate
- 24 -144 Hz
- Hor. viewing angle
- 160° +/-5°
- Vert. viewing angle
- 160° +/-5°
- Brightness uniformity
- >98%
- Dimming
- 0-100%
- Contrast
- >20,000:1
- Power consumption
- 488 W/m² (max) 102 W/Tile - Standard mode
699 W/m² (max) 146 W/Tile - High mode
267 W/m² 56W/Tile (typ)
<10 W/m² (standby)
- Heat dissipation
- 1665 BTU/h/m² (max) - Standard mode
2384 BTU/h/m² (max) - High mode
911 BTU/h/m² (typ)
- Ceiling configurations supported?
- Yes
- Heat dissipation front/back
- 54%/46%
- Operation power voltage
- AC power:
100-240V 50/60Hz
DC power:
Input: 36-55Vdc 16A (max.)
Output: 36-55Vdc 10.72A/36V (max.) or 12.55A/55V (max.)
- Operational humidity
- 10 - 80%
- Operational temperature
- -10°C to +40°C / 14°F to 104°F
- Storage temperature
- -20°C to +60℃ / -4°F to 140° F
- Storage humidity
- 10 - 80%
- Redundancy
- Power: Optional
Data:
Standard inter-tile redundancy
Embedded signal loop redundancy
Optional N + N redundancy
- HDR
- HLG / HDR10 supported
- Concave curvature
- Up to 5° standard curved tile (7m radius)
Up to 5° curved modular tile (3,5m radius)
- Convex curvature
- Up to 3° standard curved tile (12m radius)
- Dimensions
- (WxHxD) 609.92x343.08x94mm / 24.01"x13.5x3.70"
- Weight
- Standard / curved tiles:
8.3kg/tile (single PSU) / 8.7kg/tile (dual PSU)
Modular curved tiles:
9.1kg/tile (single PSU) / 9.5kg/tile (dual PSU)
- Serviceability
- Full front & full back service
Modular curved tile: Full front & full back service (PSU only back access)
- Cable management
- No external cabling
- Installation
- Self-leveling with surface tolerance compensation
- Module replacement
- Automated parallel motorized extraction
- Module placement
- Guided module placement
- Ergonomics
- SteadyView™ driver algorithm to reduce eye fatigue
- Certifications
- CE, UL, FCC class A, RoHS, WEEE, REACH, CCC, RCM
- Warranty
- 3 years
- EssentialCare Service offering
- 10 years with LED batch compatible modules
