- For perfect hand-eye coordination
- Flexible multi-modality imaging
- Exceptional image quality
List price:
(excl. VAT, duties and freight)
Price not available
MDSC-8358 MNA
K9307939MDSC-8358 RL
K9307940MDSC-8358 RLG
K9307941MDSC-8358 MNAG
K9307960MDSC-8358 MNAF
K9307961MDSC-8358 MNAH

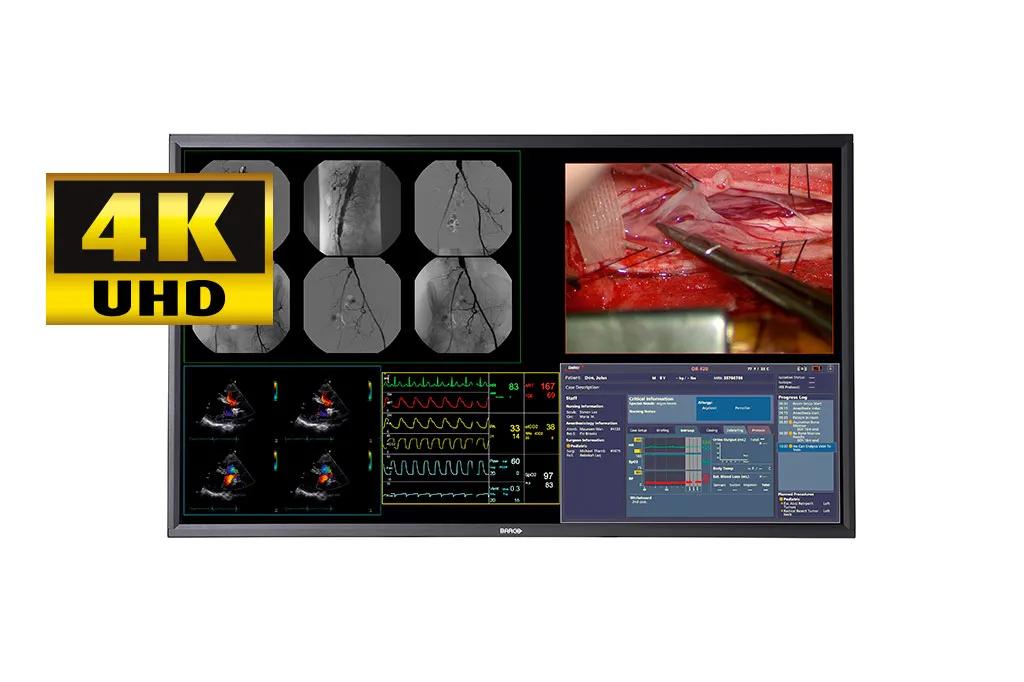

The MDSC-8358 is a slimline, large-screen surgical display with LED backlight, featuring a 58-inch LCD panel (16:9) with UHD resolution (3840 x 2160).
Perfect images in the surgical suite
The MDSC-8358 has been designed for use in hybrid operating rooms, interventional X-ray and cardiovascular suites. The MDSC-8358 delivers accurate DICOM-compliant grayscale and color images with ultra-low latency, consistent colors, and reduced noise, making it the preferred choice for real-time critical imaging.
All-around connectivity
Allowing DP, Dual Link DVI and Single Link DVI interfacing, Barco's MDSC-8358 offers a host of connectivity options, making it compatible with a large variety of OR and interventional X-ray video systems.
Reliable and safe performance
The large-size, ultra high-resolution LCD screen offers a safer and more efficient alternative to multi-monitor configurations deployed in surgical environments. The optional configuration with a redundant power supply architecture (RL) ensures stable and reliable operation in the most critical conditions.
The failover function allows automatic switchover to back-up video signals to ensure smooth, real-time imaging in the OR and safeguard patient safety at all times.
Specifications
Download spec sheetGeneral specifications
- Screen technology
- a-si TFT active matrix
- Active screen size (diagonal)
- 1473 mm (58.0")
- Active screen size (H x V)
- 1270.08 x 721.44 mm (50 x 28.4")
- Aspect ratio (H:V)
- 16:9
- Resolution
- 8MP (3840 x 2160)
- Pixel pitch
- 0.33075 mm (H) x 0.334 mm (V)
- Color imaging
- Yes
- Color support
- 16 million
- Viewing angle (H, V)
- 178°
- Maximum luminance
- 700 cd/m² (typical)
- Contrast ratio
- 4000:1 (typical)
- Response time
- 9.5 ms (typical)
- Housing color
- Black
- Video input signals
- DVI Dual link (Full screen image with 2 x DVI Inputs)
DVI Single Link (Full screen image with 4 x DVI inputs or 4 Quadrant Drive from 4 Indipendent sources)
DP 1.2 SST (Full Screen image; 4k native or 2k upscale)
Option: Nexxis MNA-240 Decoder (for uncompressed video-over-IP)
Option: 2 x Single Link DVI Dual Splitter for redistribution of auxiliary video input (see User Guide)
- Special Features
- Failover: Signal from DVI inputs automatically displayed in case of absence of DP / Nexxis signals
- Power requirements (nominal)
- 90 ÷ 264 Vac 50Hz/60Hz
- Power consumption
- 400 W (maximum)
- Power consumption
- 35 W (stand-by)
- Power save mode
- Yes
- Dot clock
- 260 MHz DVI dual link (preferred)
- Dimensions (W x H x D)
- Version w/o front glass: 1318.5 x 776 x 145.8 mm
Version with front glass: 1326.5 x 778 x 153.7 mm
- Dimensions packaged (W x H x D)
- 1540 x 413 x 940 mm
- Net weight
- 45.5 – 57.5 kg (depending on version)
- Net weight packaged
- 68.5 - 83 kg (depending on version)
- Mounting standard
- VESA (400 mm)
- Screen protection
- Protective, non-reflective glass cover, on specific versions (refer to User Guide)
- Recommended modalities
- Endoscopy, Laparoscopy, PACS, PM, US, CT, MR
- Certifications
- CE (Medical Device Class I);
EN60601-1(Ed.3) + A1:2013 +A12:2014; IEC60601-1(Ed.3) + A1:2012ANSI/AAMI ES60601-1(Ed.3) + A1:2012; C1:2009/(R)2012 and A2:2010/(R)2012;CSACAN/CSA-C22.2NO.60601-1:14;IEC/EN60601-1-2:2014; EN55011/CISPR11 (Class A)
- Supplied accessories
- User Guide
- Warranty
- 2 years
- Operating temperature
- 10-35°C for performance / 0-40°C for safety
- Storage temperature
- -20 ÷ +60°C
- Operating humidity
- 10 ÷ 90% (non-condensing)
- Storage humidity
- 10 ÷ 90% (non-condensing)
- Operating altitude
- 3000m (maximum)
- Storage altitude
- 12000m (maximum)
