MDSC‑8255
4K UHD large-screen surgical display
- 55-inch wide-screen color LCD with Quad Full HD resolution
- Wide viewing angle
- Advanced image processing algorithms
- BT.2020 compatible
- 12G-SDI and Quad-link 3G-SDI signals accepted
List price:
(excl. VAT, duties and freight)
Price not available
MDSC-8255 LED
K9352361MDSC-8255 12G
K9352362MDSC-8255 MNA
Barco's MDSC-8255 is a 55-inch surgical display purpose-built for ultra-high resolution, multi-image viewing in the digital operating room. Thanks to its high quality video performance and lightweight housing with shallow depth and thin bezel, it’s the ideal complement of any advanced video distribution system in the OR.
Large-screen 4K UHD resolution display for referral imaging

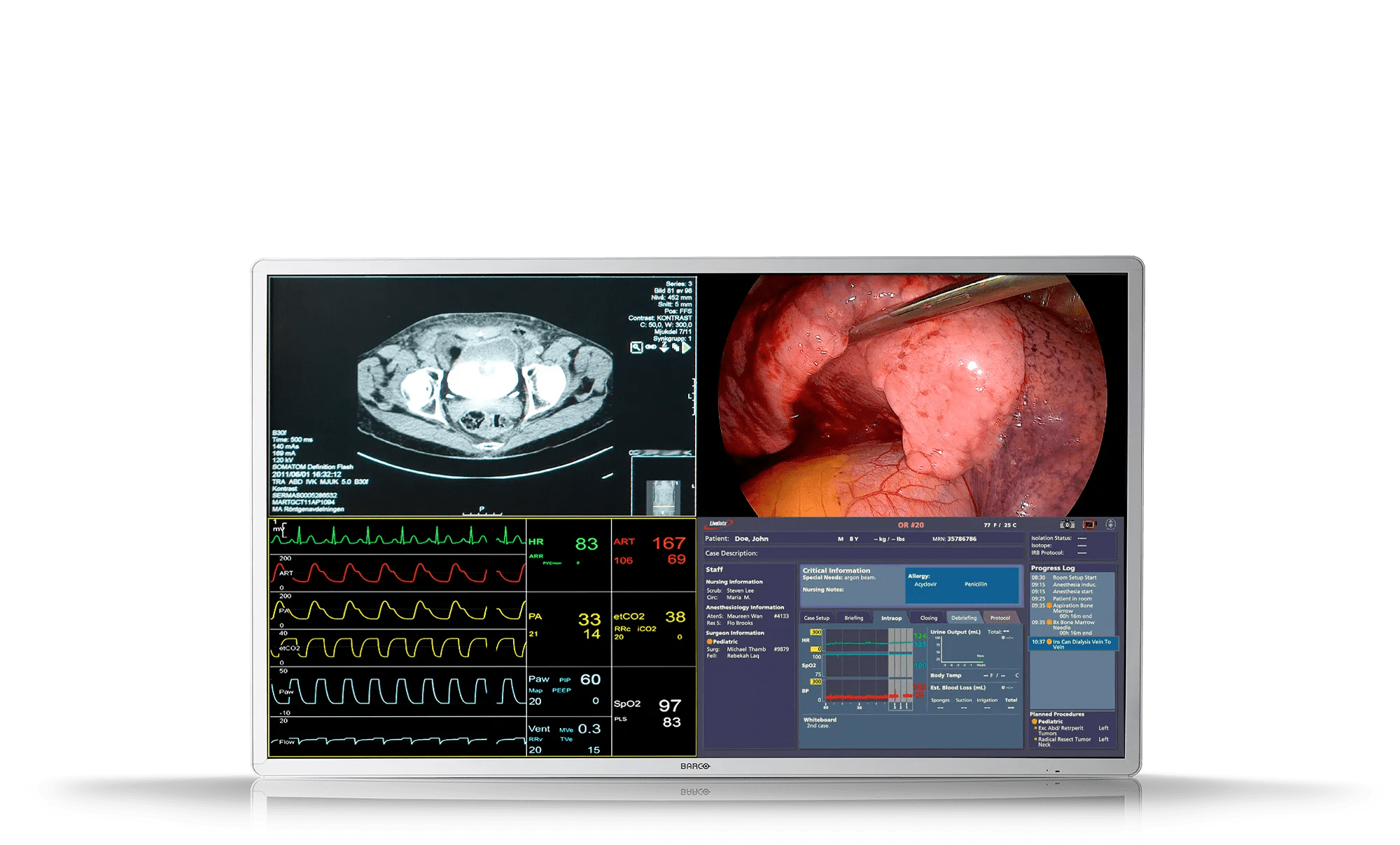

A future-proof choice for referral imaging in the OR, the MDSC-8255 can present information previously shown on four 27” monitors on one large screen, with all four images in full HD. Thanks to the integrated 4K decoder (optional) it offers seamless integration with Barco's Nexxis video-over-IP solution.
Wall-mount flexibility

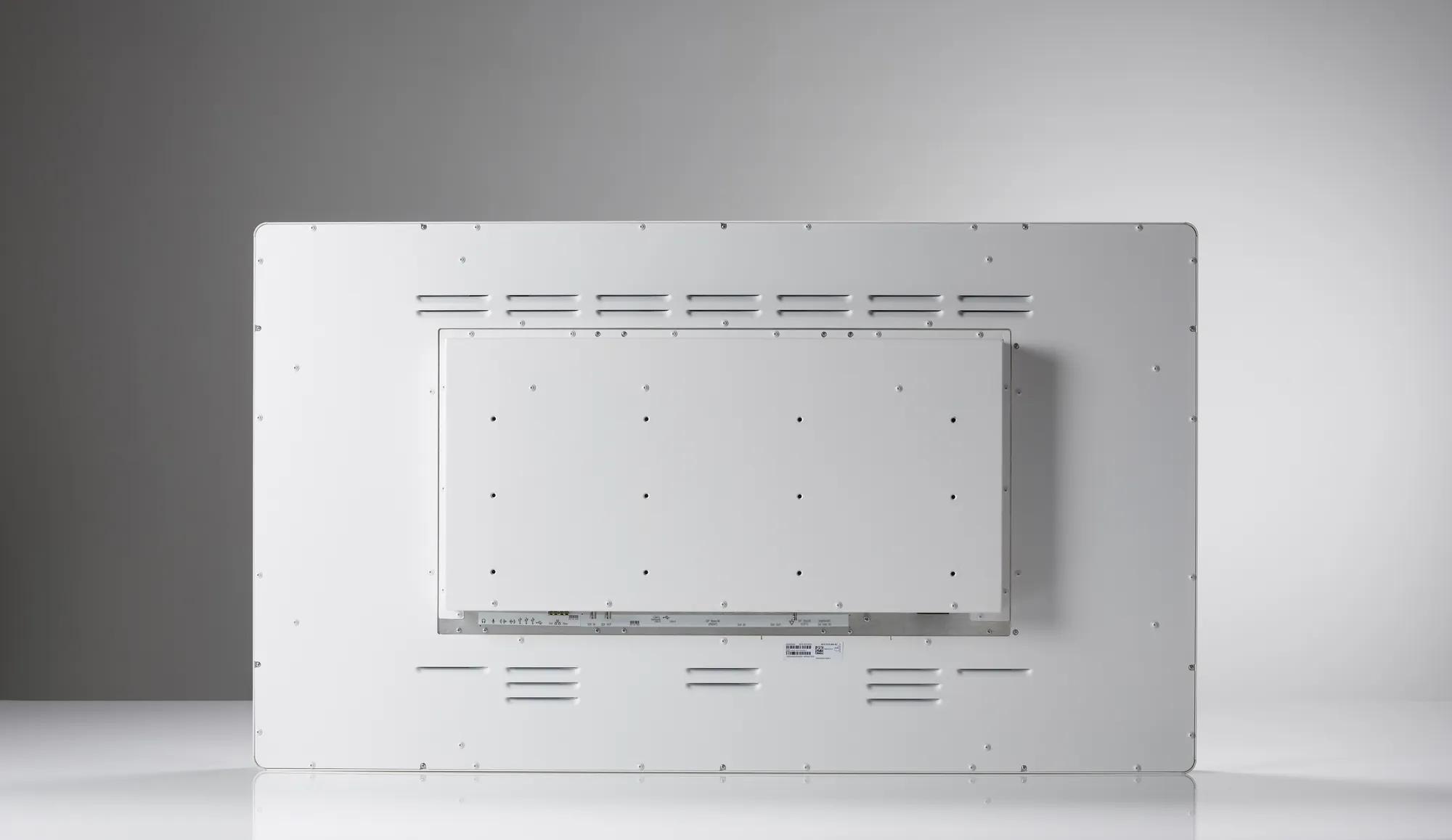

With its protective front glass, shallow depth, thin bezel and light weight the MDSC-8255 is perfect for wall mounting.
Delivering image quality on large screens
Color-calibrated, artifact free images in 4K resolution: the MDSC-8255 presents surgeons with accurate, realistic images and excellent depth perception. Advanced video processing features and noise reduction algorithms, and a full 10-bit image processing chain make this display ideal for consultation of any kind of medical referral images inside the OR.
Specifications
Download spec sheetGeneral specifications
- Screen technology
- TFT AM LCD / IPS technology / LED backlight
- Active screen size (diagonal)
- 54,6" / 1388 mm
- Active screen size (H x V)
- 1210 x 640 mm
- Aspect ratio
- 16:9
- Resolution
- 3840 x 2160
- Pixel pitch
- 0.315 mm
- Color support
- 1073 million (10-bit)
- Color calibration
- ITU-709, DCI-P3, BT.2020
- Viewing angle
- 178° Hor / 178° Ver
- Luminance
- Max: 500 cd/m² (typ.)
@6500K : 300 cd/m2 stabilized (typ.)
- Contrast ratio
- 1100:1 (max.)
- Response time
- Gray-to-Gray = 8 msec (typ.)
- White point
- Calibrated: 5600K, 6500K, 7600K, 9300K
- Gamma curve
- Native, 1.8, Video, 2.2, 2.4, DICOM
- Keyboard

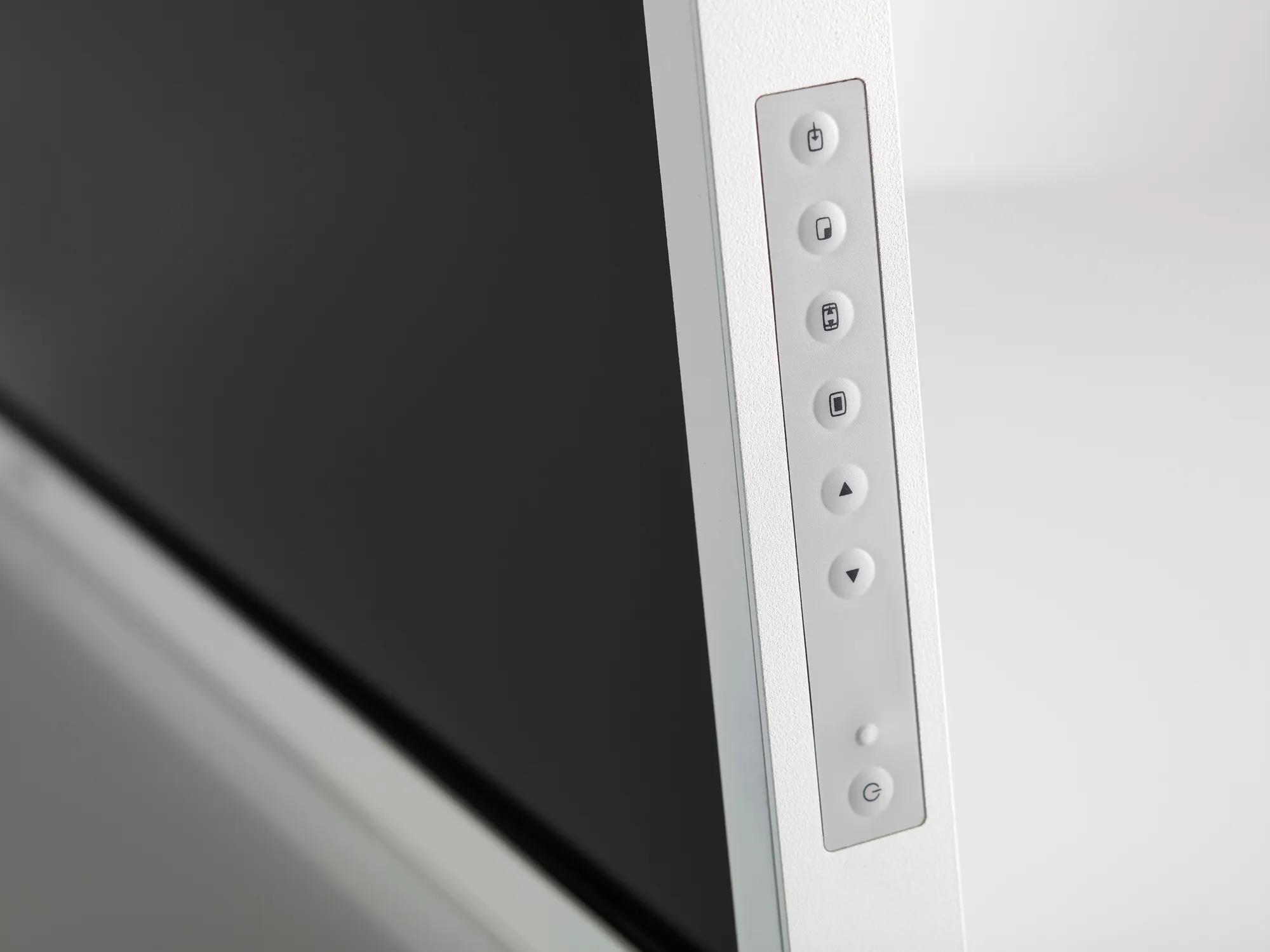

- Membrane keyboard on side
- Front protection screen
- Scratch-resistant 2-side AR glass
- Video inputs
- MDSC-8255 LED
4K-UHD input selectable among:
1x DP 1.1 up to 3840 x 2160 @25Hz/30Hz
2x DP 1.1 up to 1920 x 2160 @50Hz/60Hz
1x DP 1.2 MST up to 3840 x 2160 @50Hz/60Hz
2x HDMI 2.0 up to 3840 x 2160 @50Hz/60Hz
FHD input (upscaled to UHD):
1x DVI
1x 3G-SDI
MDSC-8255 12G
4K-UHD input selectable among:
• Quad-link 3G-SDI up to 3840 x 2160 @50Hz/60Hz
• 12G-SDI up to 3840 x 2160 @50Hz/60Hz
• 1x DP 1.1 up to 3840 x 2160 @25Hz/30Hz
• 2x DP 1.1 up to 2048 x 2160 @50Hz/60Hz
• 1x DP 1.2 MST up to 3840 x 2160 @50Hz/60Hz
• 2x HDMI 2.0 up to 3840 x 2160 @50Hz/60Hz
FHD input (upscaled to UHD):
• 1x DVI
MDSC-8255 MNA
4K-UHD input selectable among:
• 1x DP 1.1 up to 3840 x 2160 @25Hz/30Hz
• 2x DP 1.1 up to 1920 x 2160 @50Hz/60Hz
• 1x DP 1.2 MST up to 3840 x 2160 @50Hz/60Hz
• 2x FO SFP+ module for 4K-UHD Nexxis link
FHD input (upscaled to UHD):
• 1x DVI
• 1x 3G-SDI
- Video outputs
- MDSC-8255 LED & MNA
1x 3G-SDI (input loop through)
1x DVI (screen clone downscaled to FHD)
MDSC-8255 12G
2x 12G-SDI (input loop through)
1x DVI (screen clone downscaled to FHD)
- Features
- Video processing optimized for low latency and noise reduction, Picture-in-Picture, Picture-by-Picture, Image Mirror and Rotation, Failover mode, Screen clone on DVI out, FHD input upscaled to UHD, Legacy signals accepted, DC Power output
- Remote control
- MDSC-8255 LED & 12G
micro-USB port for FW download & control protocol
MDSC-8255 MNA
FW download through network connection
- Power consumption
- MDSC-8255 LED: 144W (max)/ 90 ÷ 264 Vac 50Hz/60Hz
MDSC-8255 12G: 162W (max)/ 90 ÷ 264 Vac 50Hz/60Hz
MDSC-8255 MNA: 170W (max) / 90 ÷ 264 Vac 50Hz/60Hz Low power mode
- Dimensions (W x H x D)
- 1259 x 733 x 87 mm (49.5 x 28.8 x 3.4 in)
- Net weight
- MDSC-8255 LED: 33.2 kg (73.1 lbs)
MDSC-8255 MNA: 34.2 kg (75.3 lbs)
MDSC-8255 12G: 33.5 kg (73.8 lbs)
- Net weight packaged
- MDSC-8255 LED: 39.7 kg (87.5 lbs)
MDSC-8255 MNA: 41.2 kg (90.8 lbs)
MDSC-8255 12G: 40.6 kg (89.5 lbs)
- Mounting standard
- VESA 200x200 & 600x200 mm
- Operating temperature
- 0 °C ~ 35 °C
- Storage temperature
- -20 °C ~ 60 °C
- Operating humidity
- 10% ~ 90% R.H.
- Storage humidity
- 5% ~ 90% R.H.
- Certification and compliance
- Regulation compliance:
• ANSI/AAMI ES60601-1 (2005 + C1:09 + A2:10 + A1:2014
• CAN/CSA-C22.2 No. 60601-1 (2014)
• IEC 60601-1:2005 (Third Edition) + CORR. 1:2006 + CORR. 2:2007 + A1:2012
• EN 60601-1: 2006 + CORR:2010 + A1:2013 + A12:2014
• Electromagnetic Compatibility: EMC Medical EMC Standards: IEC 60601-1-2 (2014), EN 60601-1-2 (2015) EN55011 /CISPR 11, FCC CFR47 Part 15 Subpart B (Class B)
• GB17625.1-2012; GB4943.1-2011; GB/T9254-2008
• Approvals/Marking: CE, c-UL-us, DEMKO, CCC, INMETRO, EAC
• The products comply with the Safety and performance requirements of Regulation (EU) 2017/745 (MDR)
Green compliance:
ROHS-3, REACH, WEEE
- Warranty
- 3 years
