MDMX‑25500 GNNB
55” 4K in-wall console for the OR
- 55-inch mounted in-wall console for the OR
- Integrated Nexxis connectivity
- Wide viewing angle
List price:
(excl. VAT, duties and freight)
Price not available
MDMX-25500 GNNB

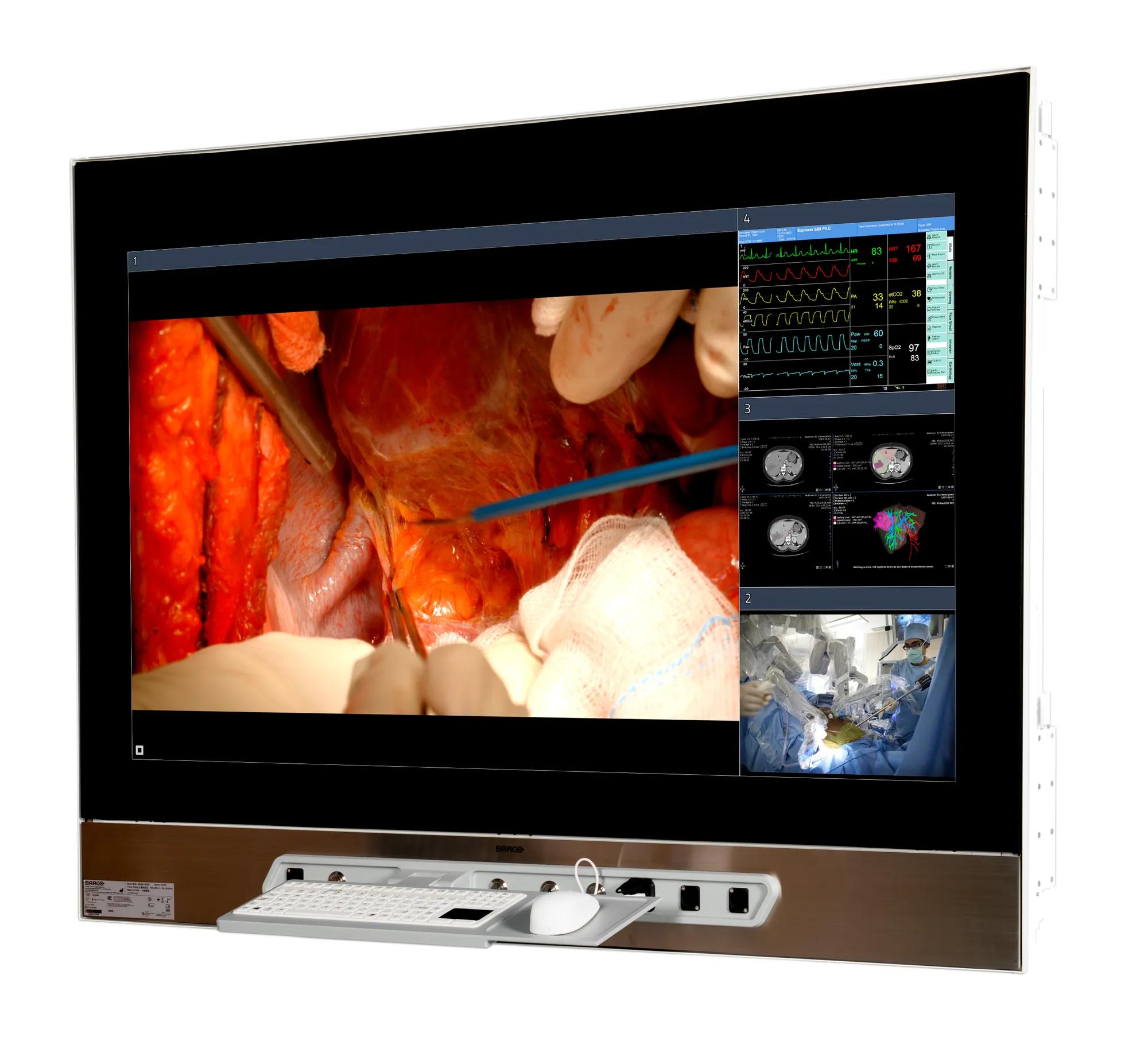

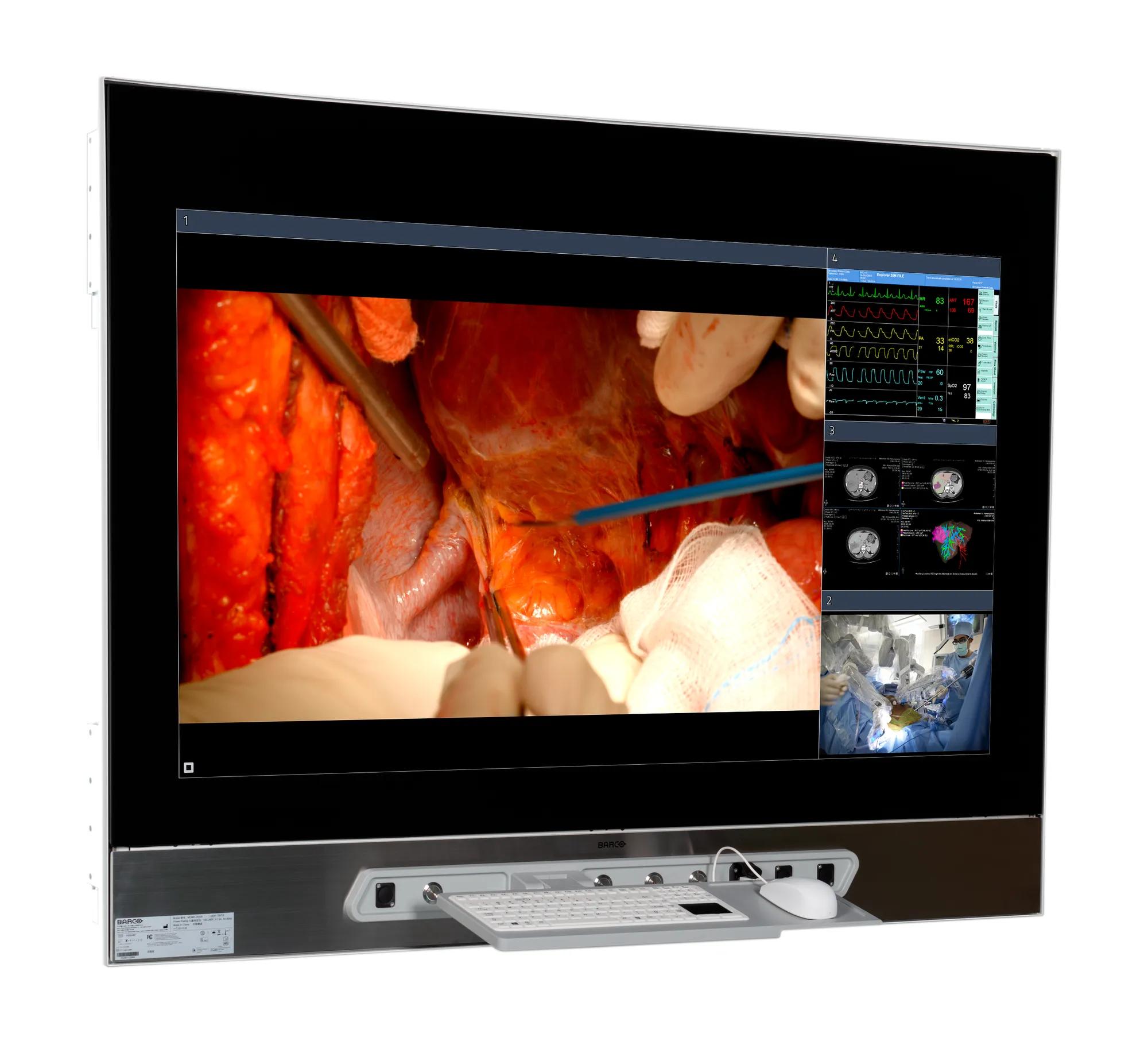

MDMX-25500 GNNB is a 55” 4K in-wall OR console with integrated Nexxis connectivity. The console consists of a single display configuration and allows the entire OR staff to combine and view multiple images, with an intuitive control system for flexible and easy use.
Optimize valuable space
The MDMX-25500 GNNB is multifunctional: it can function as a nurse station area presenting patient and surgery information, and it’s also an AV control station. It offers direct control of remote PC sources and thanks to its integrated Nexxis decoder, video routing and compositions can be managed without additional installation or configuration.
The console is integrated in the OR wall, so it doesn’t take up any additional space. The black protective, anti-reflective glass front cover allows for easy cleaning and disinfecting.
Enjoy maximum flexibility with Nexxis inside
The MDMX-25500 GNNB fits perfectly within Nexxis’ plug and play system: you can route any Nexxis source to the screen, on which multiple types of compositions are possible. The optional Barco Nexxis WorkSpot feature lets you view up to 6 sources at the same time, and control each one individually.
Additionally, a programmable Nexxis button makes it easy to adapt the console’s functionalities to the OR team’s needs: start/stop recordings, take snapshots, change video layouts, reset video source, ...
Tailor it to your needs
All components are integrated in the console, which reduces installation time and cost. An optional foldable IP68 keyboard is available in several regional variants (US, German, Italian, French, Spanish, Turkish), as well as a trackpad and USB mouse. The MDMX-25500 GNNB can be combined with the MDMX-22400 GNTB 24” console, with an optional second keyboard, for even more screen surface.
- Enjoy ergonomic viewing support for everyone in the OR: from doctors and nurses to trainees
- Use the PACS optimization button to quickly switch between color profiles: for optimal viewing of PACS images or other modalities
- Connect mobile devices, such as mobile C-arm video sources, to Nexxis
- Go for the WorkSpot feature to view and control up to 6 video sources individually
- Interact with remote-PC video sources as if you’re in front of them
Specifications
Download spec sheetGeneral specifications
- Screen/Backlight technology
- IPS/WLED
- Active screen size (diagonal)
- 1388 mm (54.64")
- Active screen size (H x V)
- 1210 mm x 680 mm (47.6 x 26.8")
- Aspect ratio (H:V)
- 16:9
- Resolution
- 3840 x 2160
- Pixel pitch
- 0.315 × 0.315 mm
- Color imaging
- Yes
- Gray imaging
- Yes
- Bit depth
- 10 bpc
- Viewing angle (H, V)
- 178°
- Ambient light sensor
- No
- Maximum luminance (panel typical)
- 500 cd/m²
- Contrast ratio (panel typical)
- 1100:1
- Response time ((Tr + Tf)/2)
- 8 m
- Housing color
- Glass/Black front -Steel/White border + back
Stainless steel dashboard below glass front for buttons/interfaces
- Video input signals
- 2 x 10GbE Fiber Optic Interface for 55” UHD Nexxis link
Optional: 4 x 10GbE Fiber Optic Interface for 2x mobile device connectivity on front
- Embedded Nexxis
- 1 x MNA-240 decoder
- Nexxis features
- View up to 6 Nexxis sources (PiP/PaP/Quad...)
Keyboard/Mouse control of source
Programmable Nexxis button (front)
Option to mount 2x front Neutrik opticalCON for mobile device connectivity
- General features
- Power control button for external PC (front)
DICOM button (front)
- Options (configurable)
- 1 x Keyboard/trackpad module available in different languages: EN-DE-FR-IT-TR-ES
Includes USB silicone mouse (cleanable)
- USB ports
- 1 x USB 2.0 downstream (External mouse for Nexxis-source control)
- Power rating
- 100-240 Vac, 50/60 Hz, 3-1.5 A
- Power consumption
- 215 Watt
- Dimensions (W x H x D)
- 1396 × 1050 × 120 mm
- Dimensions packaged (W x H x D)
- 1696 × 1337 × 341 mm
- Net weight
- 87 kg (incl. 1 x K&M module)
- Net weight packaged
- 100 kg (incl. 1 x K&M module)
- Mounting standard
- In-wall
- Screen protection
- Protective, anti-reflective glass cover
- Certification and compliance
- CE (Medical Device Class I) – CCC (China)
• Safety specific:
IEC 60950-1:2005+A1:2009+A2:2013
EN 60950-1:2006+A1:2010+A11:2009+A12:2011+A2:2013
EN IEC 62368-1:2020+A11:2020
IEC 60601-1:2005+A1:2012+A2:2020
EN 60601-1:2006+A1:2013+A12:2014+A2:2021
AAMI ES 60601-1:2005+A1:2012+A2:2021
CAN/CSA C22.2 No. 60601-1:2014 (Reaffirmed 2022)
• EMI specific:
IEC 60601-1-2:2014+A1:2020 (Ed.4.1)
EN 60601-1-2:2015+A1:2021 (Ed.4.1)
FCC part 15 Class B
ICES-001 Level B
• Environmental: EU RoHS, China RoHS, REACH, Canada Health, WEEE, Packaging Directive
- Green compliance
- ROHS-3, REACH, WEEE
- Supplied accessories
- User guide (English)
Installation guide (English)
USB stick, containing translations of the user & installation guide
2x hex key
- Optional accessories
- Neutrik opticalCON accessories
- Operating temperature
- 0 °C to 40 °C (10 °C to 40 °C within specs)
- Storage temperature
- -20 °C to +60 °C
- Operating humidity
- 20 % to 85 % (non-condensing)
- Storage humidity
- 20 % to 85 % (non-condensing)
- Operating pressure
- Minimum 70 kPa
- Storage pressure
- 50 to 106 kPa
- Warranty
- 2 years
