86" Medical Consultation Center
8MP display for improved clinical collaboration
- Smart ergonomic design
- Effortless team collaboration
- Enhanced clinical productivity

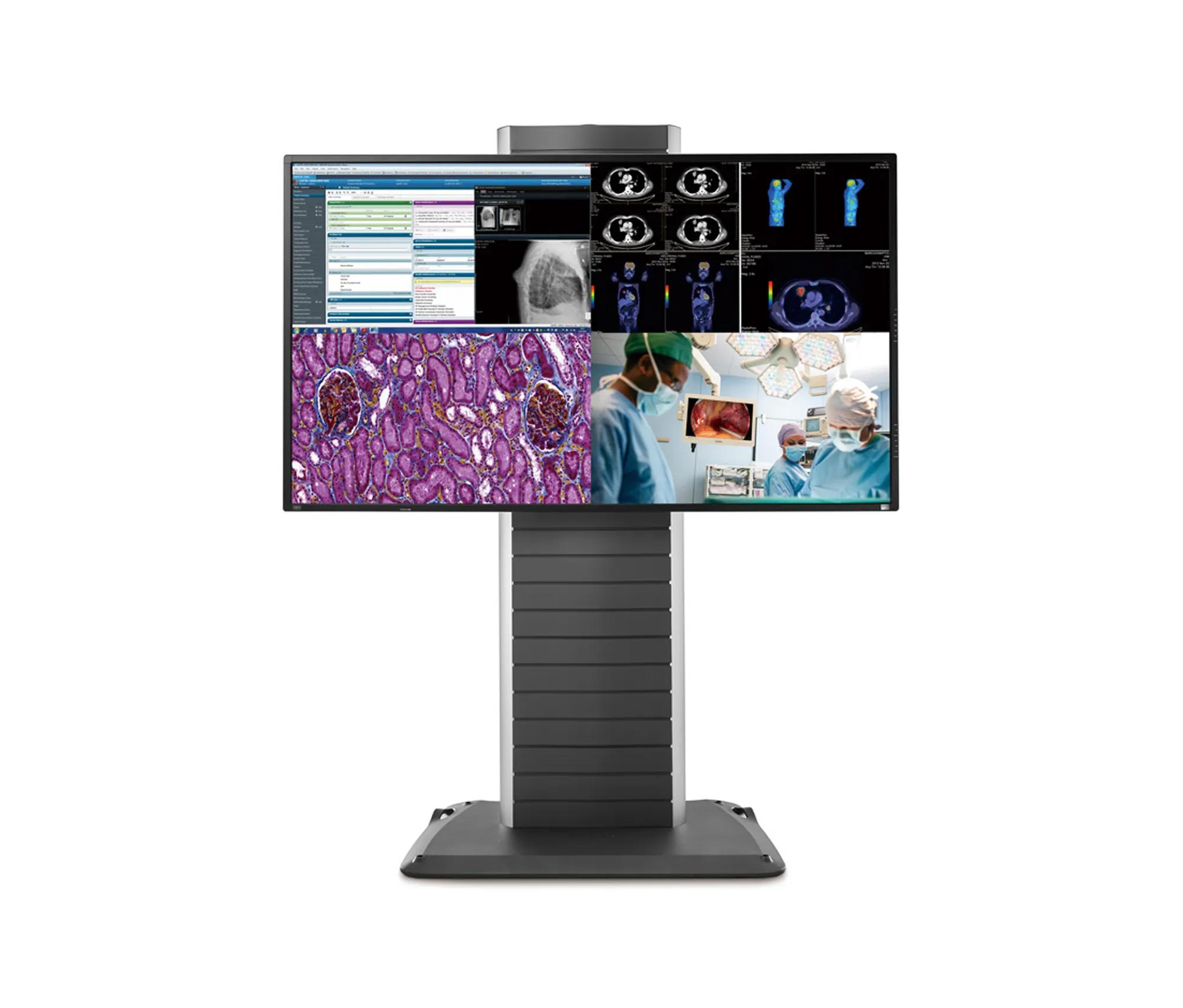

Barco’s Medical Consultation Center is a powerful solution for hospital training rooms and multidisciplinary team meeting rooms. The Medical Consultation Center is an integrated, free-standing system designed for hospital environments.
This all-in-one system includes a touchscreen display, graphics controller and visualization tools, ClickShare for enhanced collaboration, and built-in picture-and-picture capabilities. It's how Barco's Medical Consultation Center provides everything healthcare professionals need to drive clinical collaboration.
Smart ergonomic design
Clearly view even the tiniest of details on the 86” 8MP display with built-in DICOM. The 10-point multi touchscreen comes with blackboarding and annotation capabilities. This, combined with the large screen size and anti-reflective front cover, ensures fluent and easy operation, making it ideal for team collaboration.

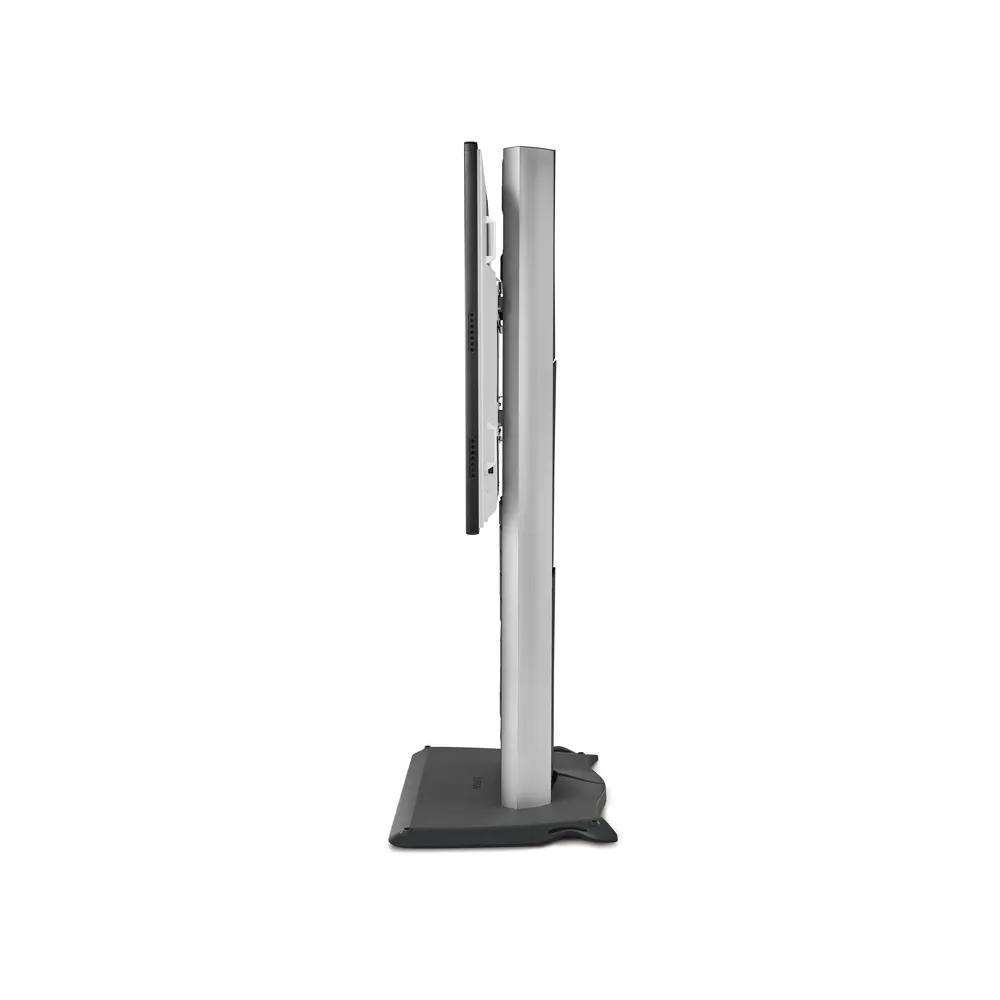

Thanks to the smart, award-winning design of the stand, Barco's Medical Consultation Center is exceptionally stable and safe.
Effortless collaboration
Discover new ways of collaborating and sharing important data. Share content from in-house clinical sources, such as EMR, radiology, pathology images, and even video conferences simultaneously on screen, thanks to the display’s 4 inputs. No external switching box needed, which means you can save cost and increase productivity.
What's more, you can reap the benefits of wireless collaboration with the integrated ClickShare suite, which allows one-click on-screen content sharing for up to 4 sources at a time.
Enhanced productivity
With 8 GB of memory, 160 GB of bandwidth and an ultra-fast GPU, the top-of-the-line display controller presents you with unmatched processing power.
- Enjoy hassle-free multiscreen setup with 4 dedicated outputs
- Innovative FindCursor™, VirtualView™ and DimView functionalities enable a highly productive experience
- Conference CloneView™ not only ensures that your content is displayed on the big screen exactly as is – but allows you to manipulate and zoom for a truly thorough collaboration session. Combined with SpotView™, you can highlight and share a region of interest during conferences and training sessions
- The ScreenShot™ screen capture tool allows you to capture screen images including annotations for training purposes and to add to MDT reports
Specifications
Download spec sheetDisplay and system
- Dimensions
- System: 1980.2(w) x 768.7 (d) x 2354.8 (h) (mm) (including stand)
Display only: 1980.2(w) x 90(d) x 1152.8 (h) (mm)
- Weight
- Free-standing structure: 78 kg; display only: 90 kg
- Resolution
- 3,840 x 2,160 pixels
- Contrast
- 1,200:1
- Dynamic contrast mode
- 2000:1
- Screen size
- 86"
- Brightness
- 500 cd/m2
- DICOM calibration
- Yes
- QA software
- MediCal QAWeb
- Connectors
- 1x DVI
1x DP1.2
1x HDMI 1.4
1x HDMI 1.4
Audio jack
- Control
Built-in OSD Key; external IR Remote controller
- Image processing
- Integrated quad view input display
- Bezel width generation
- 28 mm
- Backlight
- LED
- Power supply
- AC 100V ~ 240V (50/60Hz), 4A
- Power consumption
- 230W nominal, 300W max
- Internal speaker
- 2x speaker (2x10W)
- Horizontal frequency
- Digital : 31.5 ~ 81 KHz
- Vertical frequency
- Digital : 50 ~ 71Hz
- Operating temperature
- 0 °C to 40 °C
- Storage temperature
- -20 °C to 60 °C
- Features
- VESA Mount 400 x 600
UHD@60Hz: Only DisplayPort
4 Picture by Picture
OPS Slot Support
OSD Language: Chinese, English
- Touch screen
- IR
- Supported systems
- Windows XP/7/10
- Touch input type
- Single finger
Multiple fingers
Click, hold and drag
- Number of simultaneous touch inputs
- 10
Display controller
- Display memory
- 8 GB GDDR5
- Memory bandwidth
- 160 GB/s
- Power consumption
- 150 W
- Power Connector
- One 2x3 power connector
- Form factor
- 248mm (L) x 110mm (H) single PCIe slot wide
- Connectors
- 4-DisplayPort (DP)
- Special Features
- Conference CloneView™: enables accurate projection of medical images onto a largescreen display.
Collaboration
- Number of sources simultaneous on screen
- 8 (4 per screen)
- Number of simultaneous connections
- 64
- iPad, iPhone and Android compatibility
- Sharing of documents, browser, camera for both Android and iOS devices via ClickShare app
- Extended desktop
- Available (depending on operating system)
- Connections
- 2x Ethernet LAN (allow separate and simultaneous connection to multiple networks: e.g. guest and corporate networks) 2x USB 2.0; 2x USB 3.0 (back); 2x USB 3.0 (front) Audio analog line out on mini jack socket (3.5mm), digital S/PDIF
- Interactivity (blackboarding and annotation)
- Yes
- Moderation
- Yes
