Hodr Cinemascope

取消订阅该产品

Hodr Cinemascope has a pleasing calm uniform image and is designed for large screens or high ambient light environments.

Theater & Media Room Series
5K UHD Resolution (5,120 x 2,160)
3-Chip DLP
Up to 5,600 ANSI Lumens

数据表购买地点

价格

标价:

(不包括增值税、税费和运费)

暂无价格

显示商品编号隐藏商品编号

R9010312

Hodr CinemaScope

资源和工具

获得产品服务支持

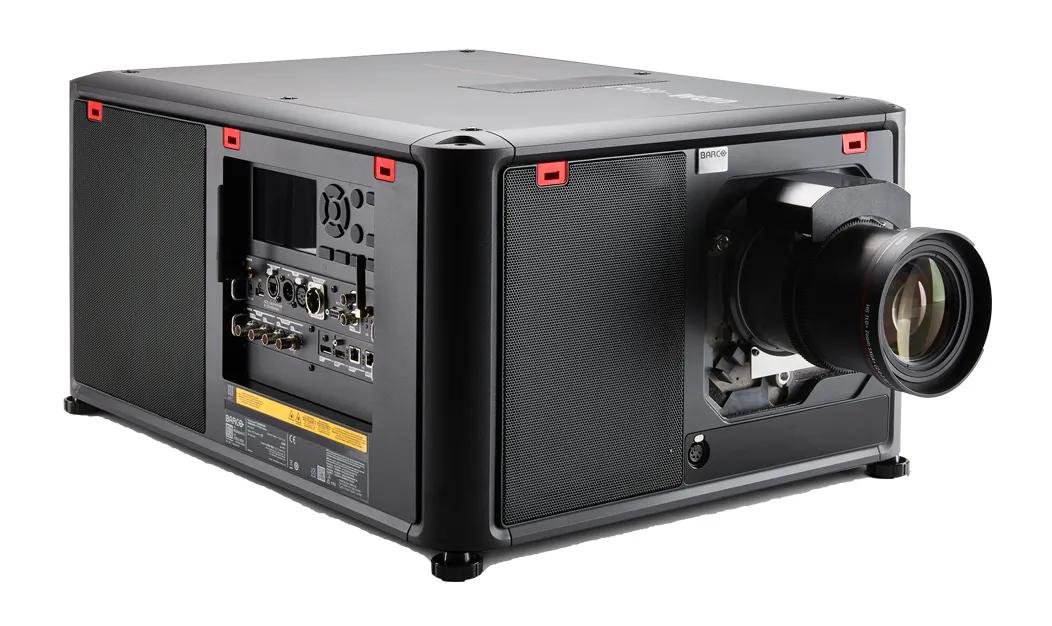

Hodr Cinemascope is Njord Cinemascope’s little brother and means warrior. Hodr Cinemascope delivers perfect cinematic colors, supporting DCI/P3 color gamut, coupled with a high-capacity 2.37:1 aspect DLP engine. Its exceptional design allows a cinemascope film to be shown without requiring an anamorphic lens.

Our Hodr Cinemascope features a pleasing and uniform image with the power light up medium to large screens, whilst delivering an unbelievably detailed image with spectacular color fidelity for an unmatched experience that will delight even the most discerning clients.

Single Step Processing SSP™

Pulse is a hardware and software based platform that simplifies the signal allowing it to transmit from source to screen much faster and more efficiently. We use an advanced image processing technique to display the image on the screen without any artefacts and with the lowest possible processing lag (<20ms with all image processing), this is made possible by our Single Step Processing (SSP™).

State of the art electronics

All new Pulse electronics have been designed to process 4K with HDMI^TM 2.0a and HDCP 2.2 and the optical engine utilises the very latest 0.9" DMD DLP chipset, delivering 5,120 x 2,160 pixels to screen.

Hodr CS also features HDR, motorised lenses and Barco’s unique RealColor processing, enables simple and accurate calibration to any desired color standard or white point.

Building Blocks

Hodr Cinemascope offers 5K UHD resolution (5,120 x 2,160) for superb image quality. Thanks to its modular design of only five building blocks, Hodr CS is easy to service.

Laser Light Source

Outstanding image quality also requires an exceptional light source which is why we designed Hodr CS with a brand new laser engine, significantly improving image uniformity (95%) over its predecessor. Hodr CS uses custom selected lasers to secure that we can deliver DCI/P3 color gamut.

Lasers last longer than traditional projector lamps, are not as fragile and offer nearly instant on/off.

规格

下载规格表

一般规格

投影机类型: Three chip DLP

技术: 3 x 0.90" DMD™ with sealed core

分辨率: 5,120 x 2,160 (5K UHD)

宽高比: 2.37:1 (CinemaScope)

光源: Laser phosphor

光源使用期限: Up to 20,000

光输出: Up to 5,600 ANSI Lumems
Dimable to 3,000 lumens

CLO（稳定光输出）: Yes

对比度: 20,000:1 (with DynaBlack enabled)
2,000:1 Sequential
600:1 ANSI

亮度均匀性: >90%

透镜范围: (R9801661) - TLD+ (0.41:1) - 90 Degree Lens
(R9862001) - TLD+ (0.73 - 0.94:1) - 90 Degree Lens
(R9801414) - TLD+ (0.92 - 1.33:1)
(R9862005 ) - TLD+ (1.24 - 1.56:1)
(R9862010) - TLD+ (1.49 - 2.02:1) *
(R9862020) - TLD+ (2.01 - 2.76:1) *
(R9862030) - TLD+ (2.69 - 4.41:1) *
(R9862040) - TLD+ (4.37 - 7.35:1) *
(R9829997) - TLD+ (6.95 - 10.83:1)

* Standard Lens Option(s)

光学镜片移动: Up to 97% shift up, 76% down, & up to 28% Horizontal (depending on lens selection) Visit the Barco Residential Lens Calculator for further information
Download Lens & Airflow Data Here

挡光板: Yes

色彩纠正: P7 RealColor™

色阶度: Up to DCI (P3)

图像处理: Embedded Warp & Blend Engine

WARP: 4-Corner Warp & Bow Correction via Warp Engine

安装角度: 360° Rotation

网络连接: 10/100 Ethernet via RJ45 connection

集成网络服务器: Yes

诊断: via Prospector web interface

HDR: HDR10

3D: Active Stereoscopic 3D
Additional hardware required please contact an authorized Barco representative for details

输入: 1 x HDMI^TM 2.0 (HDCP 2.2)
2 x HDBaseT (HDCP 1.4 - 9Gbps only)
1 x Display Port 1.2
Quad 3G / 12G SDI / BarcoLink 1 x RJ45 Ethernet
1 x RS232
1 x USB
2 x DMX (1 x Input / 1 x Output)
1 x XLR for Wired Remote
2 x 3D Sync (1 x Input / 1 x Output) Optional Upgrade: Quad DP1.2

输入分辨率: HDMI^TM:
Up to 4,096 x 2,160 @ 24/25/30/50/60Hz

DisplayPort (Single Input):
Up to 4,096 x 2,160 @ 24/30/50/60Hz

via Optional Quad DP1.2 Input Card

DisplayPort (Layout Mode: 2 x 2) *:
Up to 1,920 x 1,080 @ 120Hz
Up to 2,048 x 1,080 @ 120Hz

DisplayPort (Layout Mode: 4 x 1) *:
Up to 960 x 2,160 @ 120Hz

* Specialist GFX cards may be required

延迟: TBD

控制: IR, RS232, IP, 12v Trigger
Driver modules available for: Crestron, Control4, RTI & Savant WiFi (Optional), XLR Wired Remote, GSM (Optional)

电力要求: 110 - 130V / 200 - 240V / 50 - 60Hz

功率消耗

110V: 1,235W Max, measured in 20-25°C / 68-77°F

230V: 1178W Max 20-25°C / 68-77°F

Power consumption will increase if ambient temperatures increses above 25°C / 77°F

噪音级别（典型，25°C/77°F时）: 43 dB(A)

工作温度: 0 to 40 °C at Sea Level
Optimal Set Point: 20 °C

工作湿度: 0 to 80% (relative humidity)

每小时BTU: Max. 4,022 BTU/h @ 200 - 240V
Max. 4,216 BTU/h @ 110 - 130V

气流要求: Air Inlet (from Rear w/Feet Down): Front / Top / Right
Exhaust (from Rear w/Feet Down): Rear Clearance Requirements:
Front: 40cm
Left: 1cm
Right: 40cm
Rear: 40cm
Top: 40cm

排风量: 152 ft³/min @ 25 °C
258 m³/hour @ 25 °C Download Lens & Airflow Data Here

尺寸(宽x长x高): Excluding Lens
540 x 725 x 355 mm
21.26 x 28.54 x 14 in.

净重: Excluding Lens
48kg / 105bs

运输尺寸（宽x长x高）: Including Pallet - Excluding Lens (Packaged Separately)
850 x 665 x 613 mm
33.46 x 26.18 x 24.13 in.

毛重: TBD

标准配件: Power Cord / Remote Control

认证: CE, FCC Class A and cCSAus

安全要求: This projector may become Risk Group 3 (RG3) when an interchangeable lens with throw ratio greater than 2.3 is installed. Refer to the installation manual for further information.
