Availability

• Models: All
• Count: 8 with 2 virtual pages

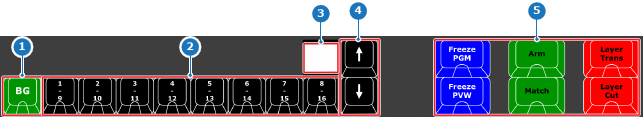

Elements

Virtual pages

Note: Virtual pages are available when some or all layers are split.

Layers 1A - 8A are available on page one. Layers 1B- 8B are available on page two.

Navigating virtual pages

There are two methods of navigating pages:

• Press the page up button to go to the next page.
• Press the page down button to go to the previous page.

The current layers are shown on the page display.

Functionality mix background layer and layer buttons

Clicking any layer button will set the mix background layer or selected layer as target for modifications on the selected destination(s). This will remove any previous selection of layer(s).

Tip: Selecting multiple layers at once can be done using the custom layer mapping on either a flex button or user assigned button. For more information, see “Assign buttons” or “User assigned buttons”.

Functionality layer command buttons

The layer command buttons contain frequently used functions that affect entire layers:

• ‘Freeze PGM’, freezes the displayed signal of the selected layer(s) on the selected destination(s) in program.
• ‘Freeze PVW’, freezes the signal of the selected layer(s) on the selected destination(s) in preview. The layers will remain frozen when sent to program.
• ‘Arm’, causes the selected layer(s) on the selected destination(s) to use the predefined movement animation when transitioning from preview to program. Arming will do nothing if no move animation was defined. For more information, see “Applying a move animation”.
• ‘Match’, exactly copies the current layers of the selected destination(s) in program to preview.
• ‘Layer Trans’, transitions the selected layer(s) on the selected destination(s) from preview to program. If ‘Arm’ was selected, the layers will preform the animation.
• ‘Layer Cut’, cuts the selected layer(s) on the selected destination(s) from preview to program without any animation. ‘Arm’ status is ignored when using cut.
