6.4 Replacement of the synthetic air filter

Warning: Switch off the projector and unplug the power cord before starting the procedure.
Required parts

New synthetic filter

How to remove
  1. Remove the front cover. See “Removal of the front cover”.

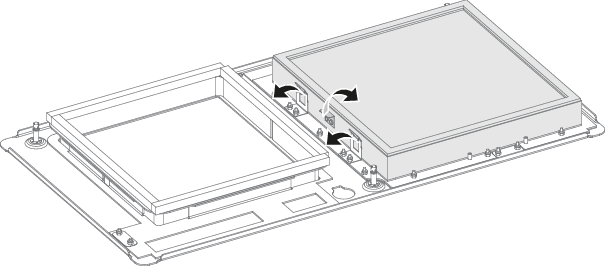

  2. Push both filter holders to the outside and flip the filter out of the holder as illustrated.

    Image 6–3 Remove old filter

  3. Remove the filter and insert a new one.

    Caution: Take notice of the air flow direction of the filter (made visible by a label). Make sure the arrow points towards the inside of the projector.
  4. Install the front cover. See “Mounting the front cover”
Caution: Never clean the filter. Always replace with a new one.
Caution: Never use the projector with removed filters !
