9.5 Mounting the front cover

Required tools

7 mm flat screw driver

How to mount

  1. Place the front cover on its place, with the filter facing the projector.

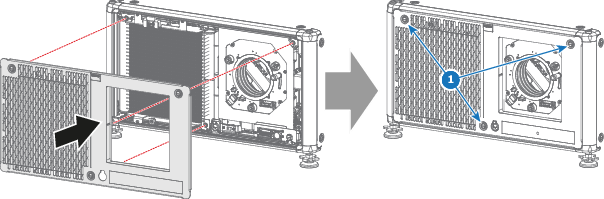

    Image 9–6 Mount front cover
  2. Fasten the three captive screws (reference 1).
  3. Mount the lens again. See “Installation of the projection lens”.
