9.1 Removal of the front cover

Required tools

7 mm flat screw driver

How to remove
  1. Remove the lens. See “Removing the projection lens”.

  2. Release the three captive screws (reference 1).

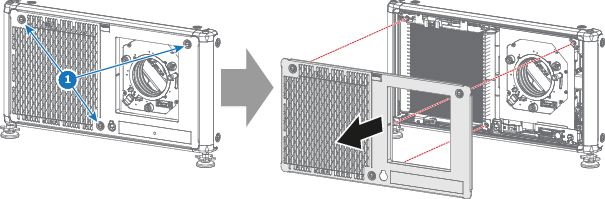

    Image 9–1 Front cover removal
  3. Remove the front cover.
