5.4 Removing the projection lens

Remove the projection lens

  1. Support the projection lens with one hand while unlock the lens holder as follows:

    1. Place primary lens lock handle (reference 1) in the “unlocked” position.
    2. Pull the secondary lens lock (reference 3) outwards.

  2. Gently pull the projection lens out of the lens holder.

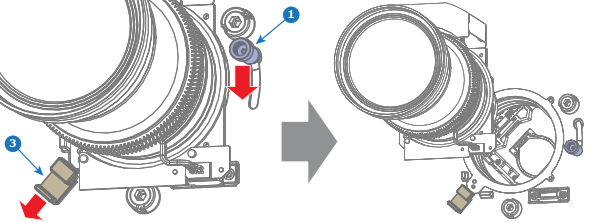

    Image 5–18

  3. Place the dust cover of the original projector packaging back into the lens opening to prevent intrusion of dust.

    Image 5–19
Tip: It's recommended to place the lens caps of the original lens packaging back on both sides of the removed lens to protect the optics of the lens.
