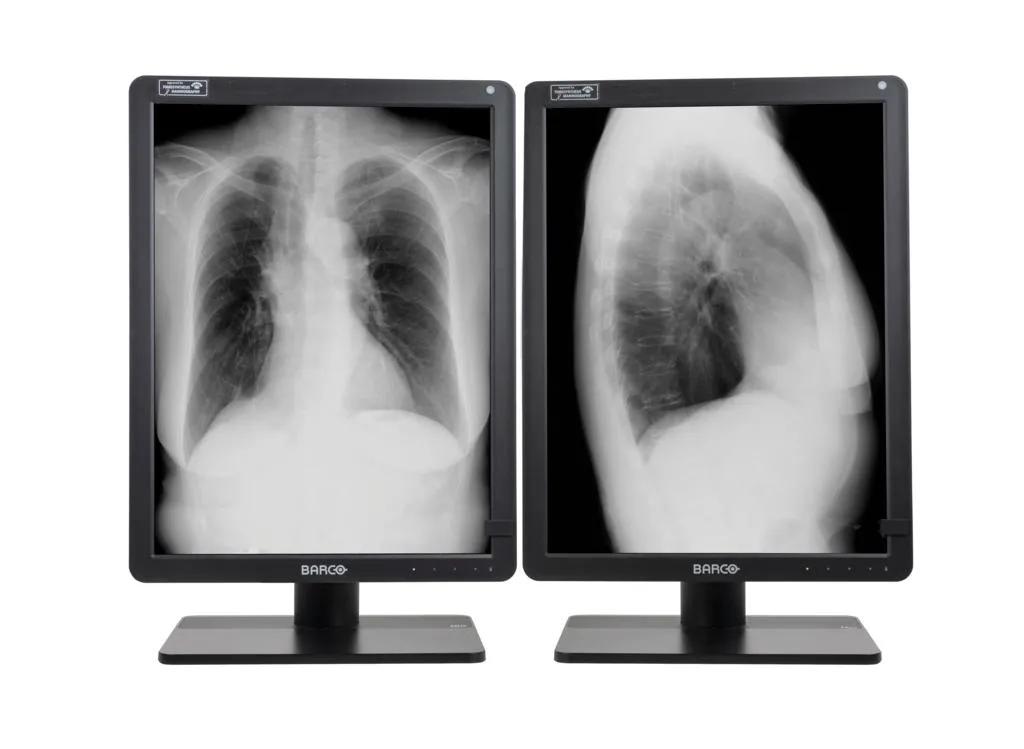

Nio Gray 5.8MP (MDNG‑6221) CN
5.8MP high-bright grayscale display
- Designed for radiology and 2D/3D mammography
- High-bright, adjustable tint grayscales
- I-Guard and QAWeb Enterprise for always-on compliance
Are you a radiologist specializing in reading breast cases in mainly grayscale modalities, such as 2D mammography and 3D tomosynthesis? If the answer is yes, then the Nio Gray 5.8MP is cut out just for you. It’s fully up to date with capabilities and innovations for today’s breast imaging, making this a modern display system that is efficient and easy for you to use. Furthermore, it’s also perfectly suited for reading grayscale general radiology images in a comfortably high resolution.
Bigger image, more details
Why 5.8MP? Well, in contrast to conventional 5.2MP display systems, you get 12% more pixels on your screen, which means that you can see more details at any given moment. Combine this with the tall 4:3 aspect ratio, which offers more room to view images in their entirety, and you get an ideal combo to start cutting back on additional panning and zooming.
Reliable reading
The Nio Gray 5.8MP offers you more Just Noticeable Differences, thanks to its high brightness and contrast ratio. Our integrated stability, calibration and uniformity technologies make sure that image quality, light output and DICOM compliance remain consistent over the years.
Efficient workflow
The Nio Gray 5.8MP is more than a grayscale monitor alone. It offers many ways to personalize settings to your liking, such as preferred tints of white or viewing angle.
On top of that, it can help you improve your efficiency and speed, thanks to the set of Intuitive Workflow Tools included with our MXRT medical display controllers.
Did you know that SpotView, for example, makes it possible to make an area you choose twice as bright as it was originally? It’s been proven to help radiologists reduce their reading time by as much as 15.5%. You can also define user profiles, saving you and your colleagues time. These automatically adjust the display in situations where it is shared by multiple people.
Long lifetime, clear view
The Nio Gray 5.8MP adheres to the latest medical standards for medical devices in Europe & MQSA in the United States. It’s also easy to install our free and highly secured QAWeb Enterprise application, with which you can rely onintervention-free, remote quality assurance. The tool makes it easy for PACS managers to centrally manage their Barco displays’ uptime and compliance – anytime, anywhere.
To summarize, your Nio Gray 5.8MP monitor is a functional, easy-to-use diagnostic display system, fully up to date with today’s innovations in general grayscale radiology, as well as 2D and 3D mammography. It comes with a 5-year warranty on its all components.
- More detail on your screen, with 5.8MP resolution
- Designed to show breast images entirely, with 3:4 aspect ratio
- Increased contrast, with 1400:1 contrast ratio and 600 to 1000 cd/m² calibrated luminance
- Consistent brightness and grays, with Uniform Luminance Technology and SteadyGray
- Always stable DICOM images and auto QA, with I-Guard front sensor and optionally, QAWeb Enterprise
- Possibility to boost luminance, with I-Luminate and SpotView
- Optional settings and tools to adjust the monitor to your workflow, with Intuitive Workflow Tools
Specifications
Download spec sheetGeneral specifications
- Screen technology
- LCD
- Active screen size (diagonal)
- 541 mm (21.3")
- Active screen size (H x V)
- 324 x 433 mm (12.77" x 17")
- Aspect ratio (H:V)
- 3:4 for each display in portrait mode, 3:2 overall
- Resolution
- 5.8 MP (2100 x 2800 pixels)
- Pixel pitch
- 0.1545 mm
- Gray imaging
- Yes
- Bit depth
- 10 bit
- Viewing angle (H, V)
- 178°
- Optical glass
- MDNG-6221 option SPEF: Yes
MDNG-6221 option SNEF: No
- Uniformity correction
- ULT
- I-Luminate
- Yes
- SteadyGray
- Yes
- Ambient light presets
- Yes, reading room selection
- Ambient light sensor
- MDNG-6221 option SPEF: Yes
MDNG-6221 option SNEF: No
- Front sensor
- Yes
- Maximum luminance
- 1300 cd/m²
- DICOM calibrated luminance
- Warrantied maximum: 1000 cd/m²
Factory default: 600 cd/m²
- Contrast ratio (panel typical)
- 1400:1
- Response time ((Tr + Tf)/2) (typical)
- 12.5 ms
- Housing color
- RAL 9003 / RAL 9004
- Video input signals
- DVI-D Dual Link (2x)
DisplayPort (2x)
- USB ports
- 1x USB 2.0 upstream (endpoint)
2x USB 2.0 downstream
- Power rating
- 24 VDC, 5 A; 5 VDC, 0.1 A
- Power requirements
- This device shall only be powered by the following medical approved power supplies:
Adapter Technology, type CMD160-P240
Ratings marked on the medical power supply:
- Input rating: 100–240 VAC, 1.9–0.8 A, 50/60 Hz
- Output rating: 24 VDC, 6.3 A; 5 VDC, 0.5 A
- Power consumption
- 60 W (nominal)
< 0.5 W (standby)
- Dimensions with stand (W x H x D)
- Portrait: 378 x 528~628 x 235 mm
Landscape: 491 x 472~572 x 235 mm
- Dimensions w/o stand (W x H x D)
- Portrait: 378 x 491 x 81 mm
Landscape: 491 x 378 x 81 mm
- Dimensions packaged (W x H x D)
- 500 x 280 x 670 mm
- Net weight with stand
- MDNG-6221 option SPEF: 11.6 kg
MDNG-6221 option SNEF: 10.2 kg
- Net weight w/o stand
- MDNG-6221 option SPEF: 6.6 kg
MDNG-6221 option SNEF: 5.2 kg
- Net weight packaged
- MDNG-6221 option SPEF: 17.0 kg (without optional accessories)
MDNG-6221 option SNEF: 15.7 kg (without optional accessories)
- Tilt
- -10° to +30°
- Swivel
- -45° to +45°
- Pivot
- 90°
- Height adjustment range
- 100 mm
- Mounting standard
- VESA (100 mm)
- Screen protection
- MDNG-6221 option SPEF: Protective, anti-reflective glass cover
MDNG-6221 option SNEF: N/A
- Recommended modalities
- All digital images, including digital mammography and breast tomosynthesis
- Certifications
- CCC (China)
Safety specific:
GB 4943.1-2011
EMI specific:
GB 17625.1-2012
GB/T9254.1-2021
Environmental:
China Energy Label, CECP, China RoHS, WEEE
- Supplied accessories
- User guide
System sheet
Video cable (1 x DisplayPort)
Mains cable(s)
USB 2.0 cable
External power supply
- QA software
- QAWeb
- Warranty
- 5 years, including 40000 hrs backlight warranty
- Operating temperature
- 0 °C to 40 °C (15 °C to 30 °C within specs)
- Storage temperature
- -20 °C to 60 °C
- Operating humidity
- 8% to 80% (non-condensing)
- Storage humidity
- 5% to 85% (non-condensing)
- Operating pressure
- 70 kPa minimum
- Storage pressure
- 50 to 106 kPa
