Nio Color 3MP (MDNC‑3421CN)
3MP high-bright color display
- Best image quality on the market for 3MP color
- Automated QA and calibration for stable DICOM images
- Fully-tested system solution
List price:
(excl. VAT, duties and freight)
Price not available
MDNC-3421 - Option CN
K9300348AMDNC-3421 - Option CN NC

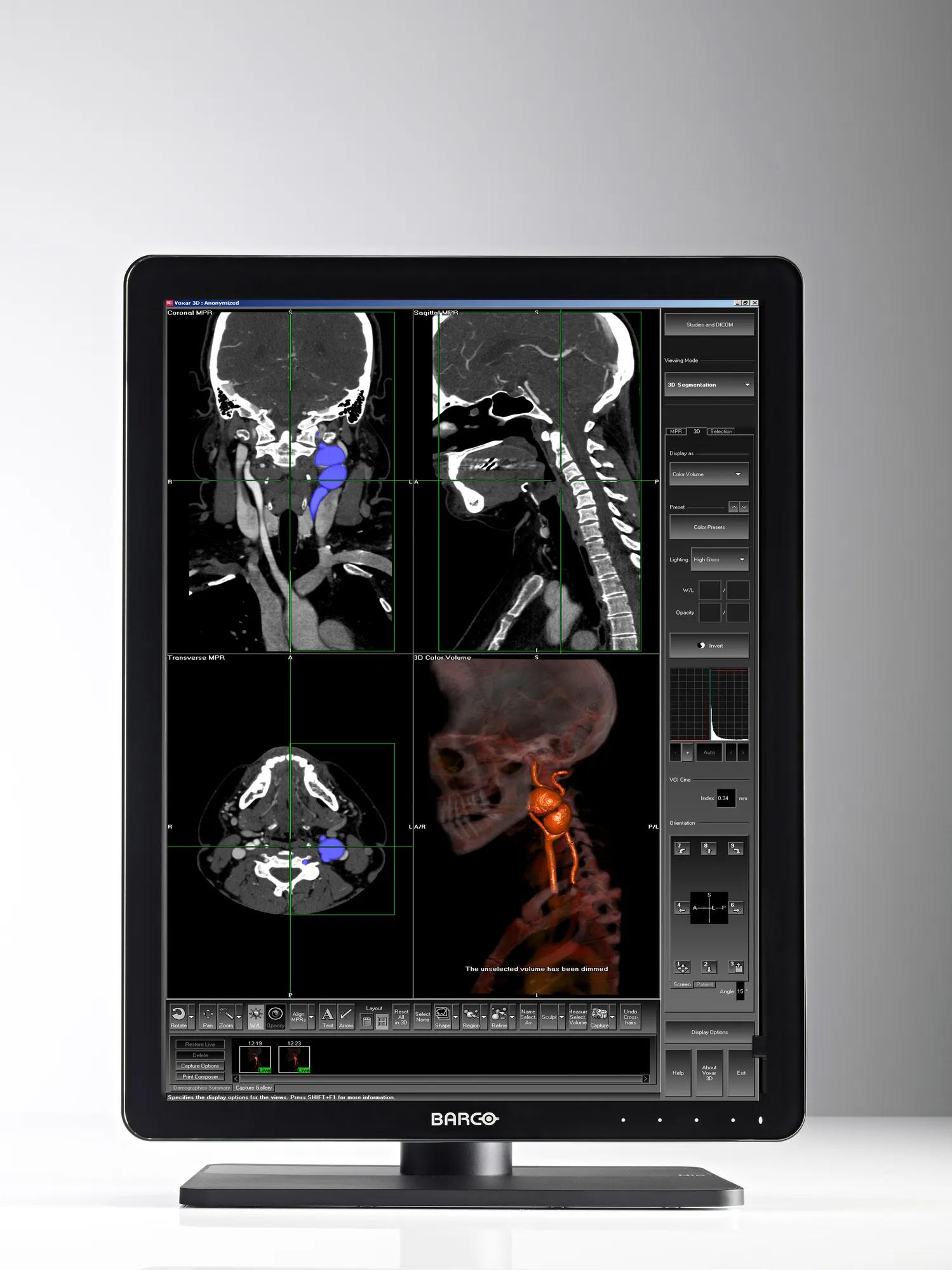

Nio® Color 3MP is a 3 megapixel high-bright color display system with LED backlights, providing excellent image quality for confident diagnoses. Its exceptional brightness (calibrated at 500 cd/m2) helps you discern even the tiniest detail - even after many years of use.
The best 3MP color solution on the market
The new Nio Color 3MP offers the best image quality in the market for a 3MP color solution. Its high brightness and high contrast ratio enable you to unveil even the subtlest details and make accurate diagnoses. With the integrated smart features, you can easily take control and improve your productivity.
SpotView™, for example, allows you to focus on an area of interest to unveil even more details. And with DimView™, any auxiliary displays can be automatically dimmed.

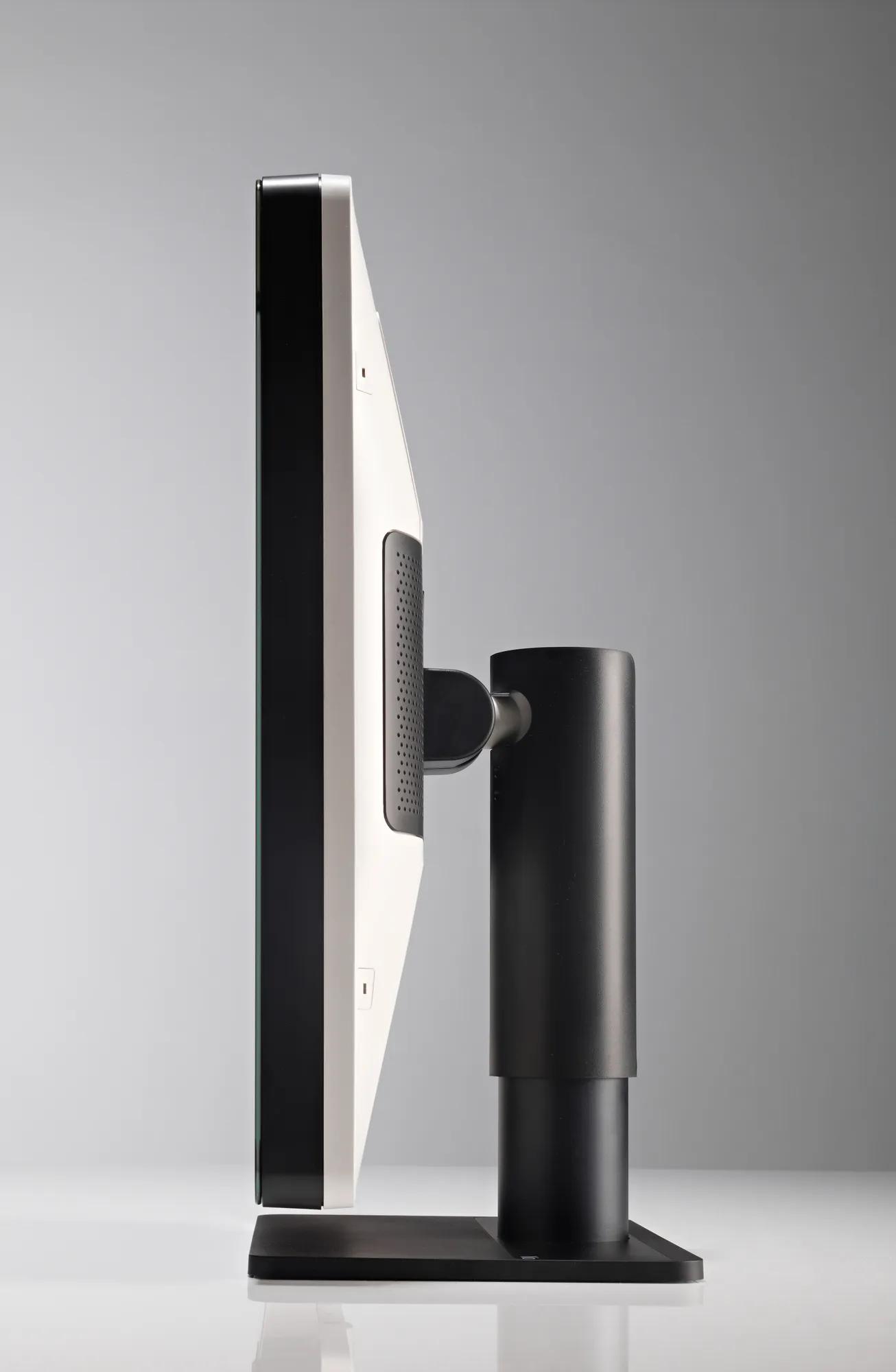

The Nio Color 3MP is also an excellent solution for radiologists who want to angle their desktop: it lets you choose your preferred viewing angle and offers highly ergonomic display configuration.
Stable image quality, durable investment

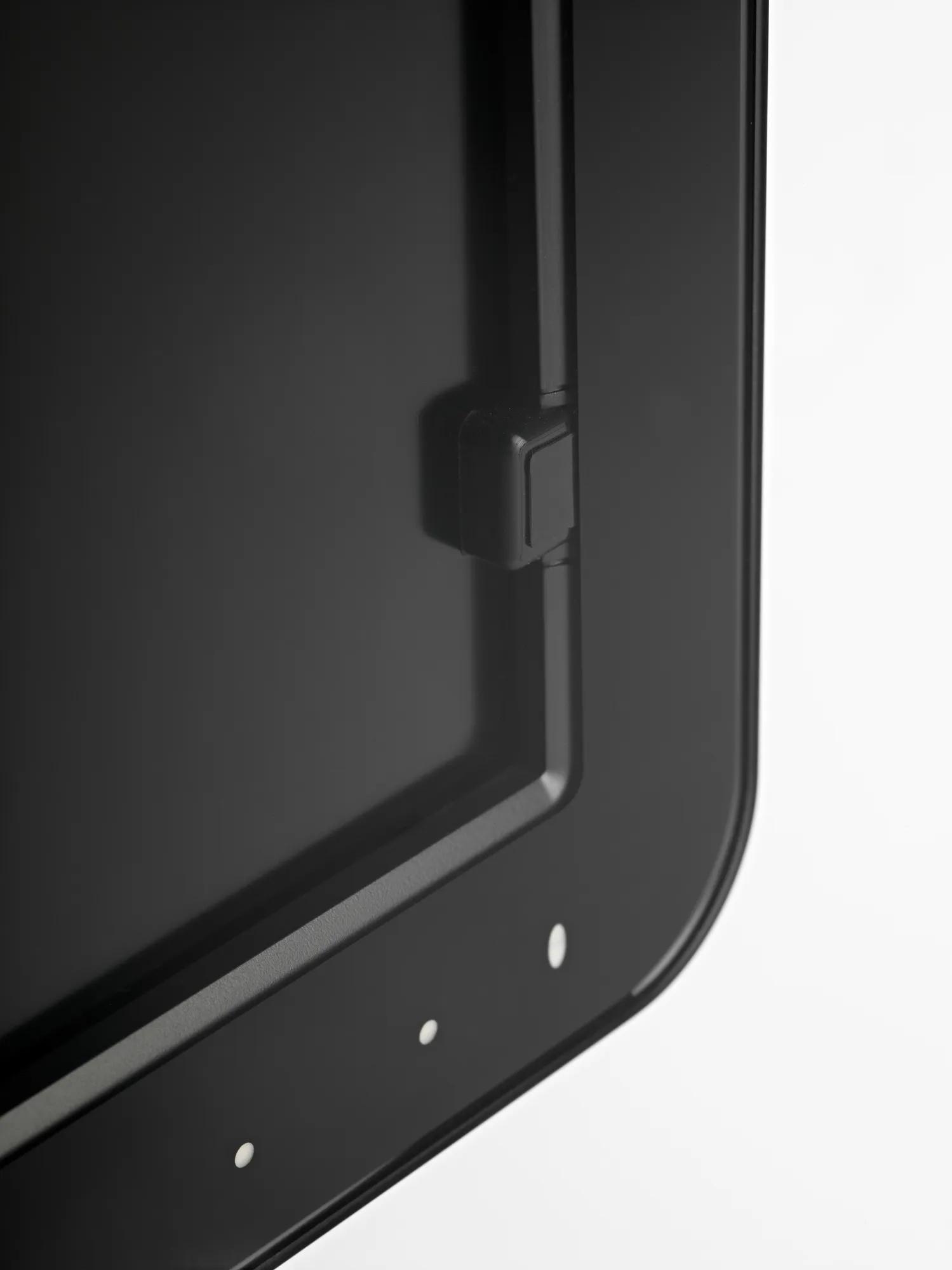

Using Barco’s integrated front sensor, the Nio Color 3MP works perfectly with Barco’s online MediCal QAWeb solution for automated Quality Assurance and calibration. QAWeb guarantees stable DICOM images throughout the display’s lifetime.
Thanks to the high-performance LED backlights, the Nio Color 3MP requires less power, even at higher calibrated luminance. This has a positive impact on both maintenance and operational costs.
Ultimate peace of mind
Barco is the only company that provides complete system solutions, from display and controllers to workflow tools and calibration via QAWeb. All components are covered by our full 5-year warranty.
- High-bright and power-efficient LED backlights
- Accurate grayscale and color rendering
- Front sensor and MediCal QAWeb for easy DICOM conformance
- High-performance 3D rendering with full 3D, OpenGL and DirectX support
Specifications
Download spec sheetGeneral specifications
- Screen technology
- IPS
- Active screen size (diagonal)
- 540 mm (21.3")
- Active screen size (H x V)
- 433 x 325 mm (17.0 x 12.8")
- Aspect ratio (H:V)
- 4:3
- Resolution
- 3MP (2048 x 1536 pixels)
- Pixel pitch
- 0.2115 mm
- Color imaging
- Yes
- Gray imaging
- Yes
- Bit depth
- 30 bit
- Viewing angle (H, V)
- 178°
- Optical glass
- MDNC-3421 (option CN): Yes
MDNC-3421 (option CN NC): No
- Uniformity correction
- ULT
- Ambient light presets
- Yes, reading room selection
- Front sensor
- Yes
- Maximum luminance (panel typical)
- 1000 cd/m²
- DICOM calibrated luminance
- 500 cd/m²
- Contrast ratio (panel typical)
- 1400:1
- Response time ((Tr + Tf)/2) (typical)
- 15 ms
- Housing color
- RAL 9003 / RAL 9004
- Video input signals
- DVI-D Dual Link
DisplayPort
- USB ports
- 1x USB 2.0 upstream (endpoint)
3x USB 2.0 downstream
- Power rating
- 24 VDC @ 4.58A, 5 VDC @ 0.5A
- Power requirements
- This device shall only be powered by the medical approved power supply of Sinpro Electronics, type CPU110-201
Ratings marked on the medical power supply:- Input rating: 100–240 VAC, 1.5–0.6 A, 47-63 HZ
- Output rating: 24 VDC, 4.58 A; 5 VDC, 0.5 A
- Power consumption
- 50 W (nominal)
< 0.5 W (hibernate)
< 0.5 W (standby)
- Dimensions with stand (W x H x D)
- Portrait: 378 x 528~628 x 235 mm
Landscape: 491 x 472~572 x 235 mm
- Dimensions w/o stand (W x H x D)
- Portrait: 378 x 491 x 84 mm
Landscape: 491 x 378 x 84 mm
- Dimensions packaged (W x H x D)
- 500 x 280 x 670 mm
- Net weight with stand
- MDNC-3421 (option CN): 11.5 kg
MDNC-3421 (option CN NC): 10.2 kg
- Net weight w/o stand
- MDNC-3421 (option CN): 6.5 kg
MDNC-3421 (option CN NC): 5.2 kg
- Net weight packaged
- MDNC-3421 (option CN): 15.6 kg (without accessories)
MDNC-3421 (option CN NC): 14.3 kg (without accessories)
- Tilt
- -10° to +30°
- Swivel
- -45° to +45°
- Pivot
- 90°
- Height adjustment range
- 100 mm
- Mounting standard
- VESA (100 mm)
- Screen protection
- MDNC-3421 (option CN): Protective, anti-reflective glass cover
MDNC-3421 (option CN NC): N/A
- Recommended modalities
- All digital images, except digital mammography
- Certifications
- CCC GB92542008+ GB4943.12011+ GB17625.12003
China RoHS
- Supplied accessories
- User guide
Documentation disc
System disc
Video cable (1 x DisplayPort)
Mains cable (Chinese (CCC))
USB 2.0 cable
External power supply
- Optional accessories
- Graphics board
- QA software
- MediCal QAWeb
- Warranty
- 5 years, including 35000 hrs backlight warranty
- Operating temperature
- 0 °C to 40 °C (15 °C to 35 °C within specs)
- Storage temperature
- -20 °C to 60 °C
- Operating humidity
- 8% to 80% (non-condensing)
- Storage humidity
- 5% to 85% (non-condensing)
- Operating pressure
- 70 kPa minimum
- Storage pressure
- 50 to 106 kPa
