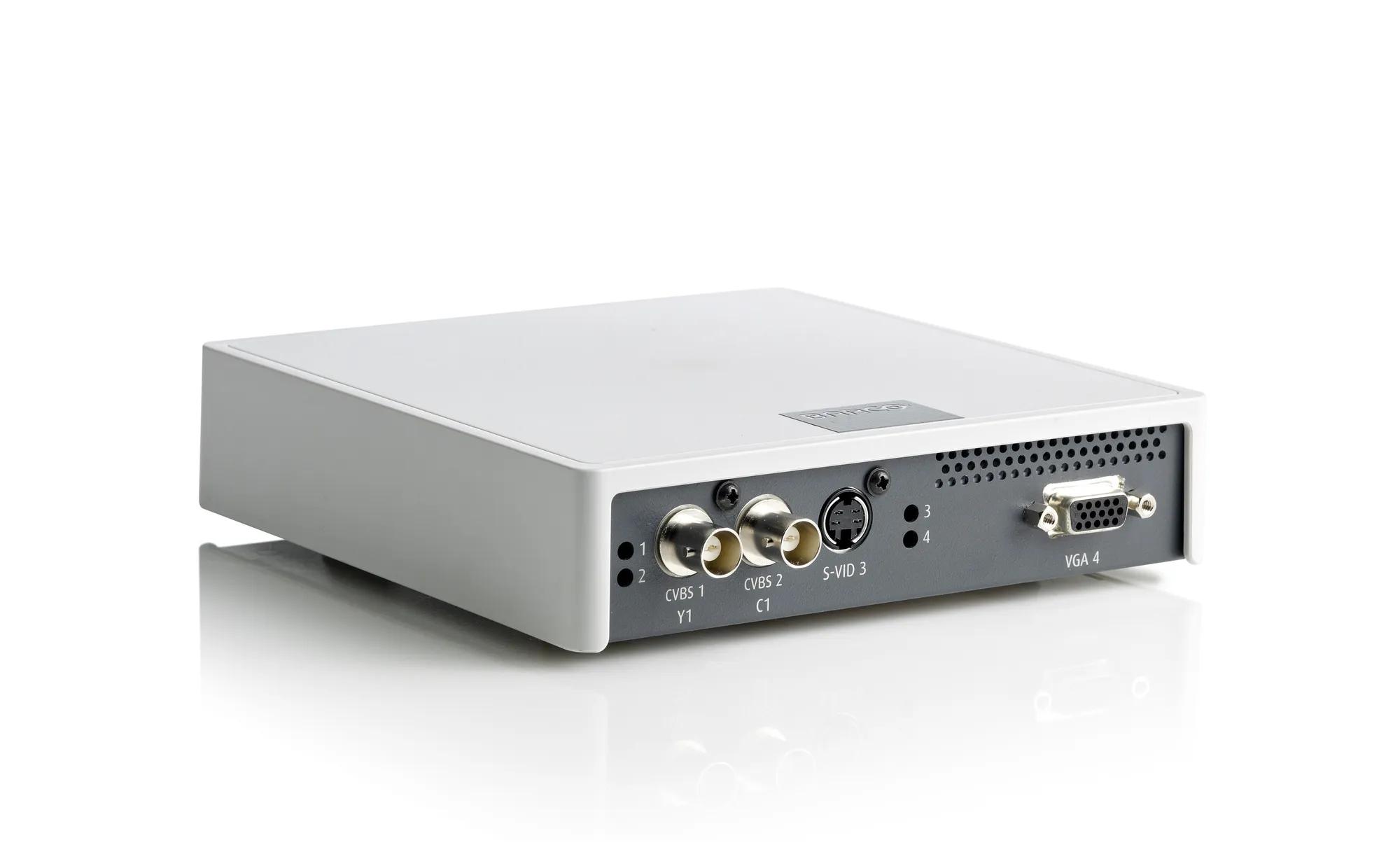

MNA‑120 ENC ANA
AV-to-IP encoder for the digital operating room with VGA & CVBS or VGA & S-Video
List price:
(excl. VAT, duties and freight)
Price not available
MNA-120 ENC ANA AUDIO - Medical Network Adapter Encoder Analog Audio
Barco's MNA series comprises adapters to encode and decode video, data and other information (e.g. control signals) to and from IP streams. These medically certified adapters ensure overall connectivity and support for current and legacy video sources. Automated device detection eliminates the need for user interventions when setting up the operating room.
Conversion to IP
The MNA encoders take in baseband video and non-video data and convert these to IP streams for transportation over a standard high-bandwidth IP network. The MNA decoders reconvert these raw IP packets to DVI video signals and other signals such as USB. End-to-end latency is amazingly short and is guaranteed not to exceed a single frame (< 15 ms).
The medical-grade MNA adapters offer:
- AV-to-IP conversion at the imaging source
- Complete connectivity for current and legacy video sources in the operating room, cath lab or interventional suite
- Support for non-video traffic (e.g. keyboard, mouse and audio)
- Easy integration via central API provided by Barco's NMS 1.0 software
- Smooth setup and ease of use
- Full auto-detection of all devices, no end-user intervention required for setup and use
- Full API to control all functionalities and solve network and configuration complexities – Barco Nexxis NMS 1.0
- Provides advanced image processing capabilities such as de-interlacing, scaling, overlaying, color conversion
- Secure decryption and encryption of all data
- Status LEDs for simple identification of key parameters
Specifications
Download spec sheetGeneral specifications
- Video conversion
- Converts analog baseband video signals to uncompressed IP video streams
- Processing
- One channel S-video/CVBS (720x576i50 or 720x485i60) + one channel analog graphical source (1920x1200p60 with reduced blanking)
- Color depth
- CVBS/S-Video: YCbCr 4:2:2 10 bit/color VGA: RGB24 8 bit/color & RGB30 10bit/color
- Latency
- Subframe
- Security
- AES 128 encrypted transmission of all video, data & control signals
- Encoder system
- VGA & CVBS or VGA & S-Video
- Video Output
- N/A
- Video Input
- N/A
- Network output
- 1x PAL/NTSC uncompressed IP stream + 1x HD uncompressed IP stream
- IP Connectivity
- 10GbE Fiber Optic Interface with SFP+ connector module
- IP Standards
- AVB, IP, IGMP, IGMP snooping, PIM, RTP, RTCP, 802.1q, AES 128b, HTTP(s)
- USB
- Micro USB type B USB Type A
- Audio
- Line-in, line-out and mic-in connector
- Compliance
- Supporting HIPAA-compliant external 12V Medical Approved PSU
- GPIO
- Trigger via any audio connector via 15mm length compatible 3.5mm TRRS jack
- Nexxis Integration
- N/A
- NexxisPlus Integration
- N/A
- PSU
- N/A
- Power Consumption
- < 30W
- Size
- 37 mm H x152 mm W x152 mm D
- Weight
- Maximum 750g
- Temperature
- Range +5°C to +35°C Temperature change <1°C/min
- Humidity
- Operational: 35°C / 85% RH non condensing Storage: RH + 40°C / 95% non condensing
- Altitude
- N/A
- Storage conditions
- Temperature: Range -20°C to +60°C (Temperature change <1°C/min)
- Acoustic noise level
- Typical 38 dBA at 20°C at 1m
- Mouting
- N/A
- Certifications
- - CB (IEC 60601-1) - CB (IEC 60950-1) - cUL, UL (cULus) - Demko - CE medical device class I - BIS Registration, IS 13252 (part 1)
- Standards
- Medical Equipment: -IEC 60601-1:2005 + A1:2012 + A2:2020 -IEC 60601-1-6:2010 + A1:2013 + A2:2020 -IEC 60601-1-2: 2014+A1:2020 (Ed.4.1) -ANSI/AAMI ES 60601-1:2005 + A1:2012 + A2:2021 -CAN/CSA-C22.2 No.60601-1:08 + A1:14 (Reaffirmed 2022) -EN 60601-1:2006 + A1:2013 + A12:2014 + A2:2021 -EN 60601-1-6:2010 + A1:2015 + A2:2021 -EN 60601-1-2:2015 + A1:2021 (Ed.4.1) -FCC class B -ICES-001 Level B ITE Equipment: - IEC 62368-1:2018 - EN IEC 62368-1:2020 + A11:2020 - IS 13252 (Part1): 2010
- 3D Video Support
- N/A
- Streamback
- N/A
