Just as the mythical Medea flew in a golden chariot driven by dragons, our Medea will bring fantasy to life.

Media Room Series
4K UHD Resolution (3,840 x 2,160)
Laser Phosphor
Up to 6,500 ANSI lumens

Get in touch Data Sheet

Price

List price:

(excl. VAT, duties and freight)

Price not available

Show article numbers Hide article numbers

R90059501

Medea MKII

Resources & tools

Get product support

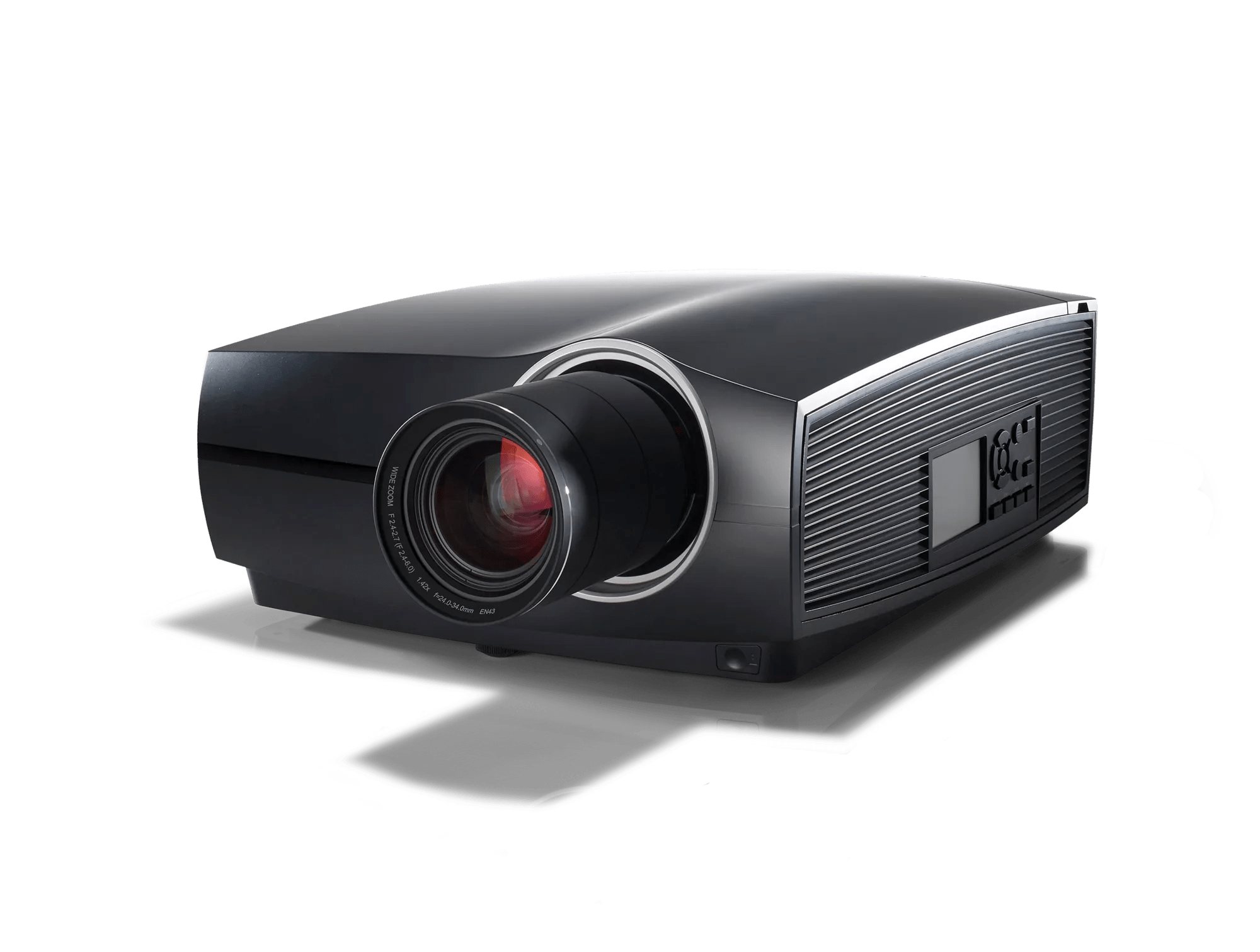

Medea is our entry level 4K UHD projector, with up to 6,500 ANSI lumens, laser phosphor illumination and custom Barco Pulse electronics.

Painstakingly designed, optimised and manufactured in our European design centers, Medea delivers unprecedented performance in small to medium sized media rooms and dedicated home cinemas.

Professional grade optics

Medea’s optical engine architecture is world-class, built from custom designed aspherical glass elements and enhanced low dispersion glass lenses. The resulting image quality is simply outstanding.

State of the art "Pulse" electronics

Our “Pulse” electronics are built on a superior FPGA platform, featuring a dual core processor on the industry’s only 20 nm SoChave, with 96 transceiver lanes delivering 3.3 Tbps of serial bandwidth.

Thanks to our unique single step processing technology (SSP^TM), Pulse electronics are designed to process 4K UHD, HDMI^TM 2.0a, HDCP 2.2 and HDR10 signals with extremely low latency. This provides exceptional gaming and movie viewing experiences.

RealColor

Barco’s RealColor processing enables simple and accurate calibration to your desired color gamut and white point.

Award winning DLP technology

Medea utilises the very latest 0.66" DMD from Texas Instruments which features a 5.4 Micron Micromirror Pitch and a ±17° Micromirror Tilt (Relative to Flat Surface). This technology allows us to display flawless 4K UHD (3,840 × 2,160 px) images.

Laser light source

Light on demand, allows you to adjust light output to match the time of day and/or content you’re viewing. Medea’s long laser lifetime means you can treat it like a TV, whilst still getting the big screen experience. 20,000 hours laser usage equates to 5 hours viewing every day for 11 years.

Specifications

Download spec sheet

General specifications

Projector type: Single chip DLP

Technology: 0.66" DMD™

Resolution: 3,840 x 2,160 (4K UHD)

Aspect ratio: 1.78:1 (16:9)

Light source: Laser phosphor

Light source lifetime: 40,000hrs in Long Life Mode
20,000hrs in Normal Mode
12,000hrs in Silent Mode
12,000hrs in High Brightness Mode

Light output: Up to 6,500 ANSI lumens

CLO (constant light output): Yes

Contrast ratio: 1,300:1 Sequential
350:1 ANSI

Brightness uniformity: >85%

Lens range: (R98017241) - GLD (0.80 - 1.00:1)
(R98017221) - GLD (1.00 - 1.35:1)
(R98017201) - GLD (1.35 - 2.00:1) *
(R98017191) - GLD (1.35 - 2.00:1) - Manual Zoom & Focus **
(R98017211) - GLD (2.00 - 3.00:1)

NOTE: The below lens options require an EN Series lens adapter (R9801442)
(R9801832) - FLDX UST (0.54:1) - 90° lens
(R9802244) - EN67 (0.86:1)
(R9802243) - EN66 (1.06 - 1.60:1)
(R9802003) - EN76 (1.26 - 1.72:1)
(R9802242) - EN63 (1.58 - 2.25:1)
(R9802241) - EN61 (2.25 - 3.31:1)
(R9801211) - EN44 (3.30 - 6.08:1)

* Standard Lens Option(s) - USA
** Standard Lens Option(s) - Rest of World

Optical lens shift: GLD Series Lens Options
Up to 60% vertical lens shift & up to 18% horizontal lens shift (depending on lens selection) EN Series Lens Options
Up to 67% vertical lens shift & up to 18% horizontal lens shift (depending on lens selection) Visit the Barco Residential Lens Calculator for further information
Download Lens & Airflow Data Here

Optical dowser: Yes

Color correction: P7 RealColor™

Color gamut: REC.709

Image processing: Embedded Warp & Blend Engine

WARP: 4-Corner Warp & Bow Correction via Warp Engine

Orientation: 360° Rotation

Network connection: 10/100 Ethernet via RJ45 connection

Integrated web server: Yes

Diagnostics: via Prospector web interface

HDR: HDR10

3D: Active Stereoscopic 3D
Additional hardware required please contact an authorized Barco representative for details

Inputs: 1 x HDMI 2.0 (HDCP 2.2)
1 x HDBaseT (HDCP 1.4 - 9Gbps only)
2 x Dual Link DVI-D
2 x Display Port (1.2)
12G-SDI 1 x RJ45 Ethernet
1 x RS232
1 x Remote Control (RC)
3 x USB (2 x Rear, 1 x Front)
DMX (1 x Input, 1 x Output)

Input resolutions: From VGA up to 4K UHD (3,840 x 2,160) @ 60Hz
or up to 2,560 x 1,600 @ 120Hz

Latency: TBD

Control: IR, RS232, IP, 12v Trigger
Driver modules available for: Crestron, Control4, RTI & Savant NOTE: 12v Trigger(s) do not follow standard functionality and require an IP command to enable / disable them.
Download our integration guide for more information.

Power requirements: 100 - 240V / 50 - 60Hz
US Requires: 20A Service (NEMA 5-20P Plug Type)

Power consumption: 850 W maximum

BTU per hour: 2,900 BTU/h maximum

Noise level (typical at 25°C/77°F): 35 dB(A)

Operating temperature: 10 to 45 °C at Sea Level
Optimal Set Point: 20 °C

Operating humidity: 20 to 80% (relative humidity)

Airflow requirements: Air Inlet (from Rear w/Feet Down): Left Side
Exhaust (from Rear w/Feet Down): Right Side Clearance Requirements:
Front: 1cm
Left: 50cm
Right: 80cm
Rear: 20cm
Top: 1cm

Exhaust airflow: 221 ft³/min @ 22.9 °C
375 m³/hour @ 22.9 °C
Download Lens & Airflow Data Here

Dimensions (WxLxH): Excluding Lens
481 x 680 x 239 mm
18.9 x 26.8 x 9.4 in.

Weight: Excluding Lens
25.5 kg / 56.2 lbs

Shipping dimensions (WxLxH): Excluding Lens
920 x 700 x 700 mm
36 x 27 x 27 in.

Shipping weight: Excluding Lens
42 kg / 92 lbs

Accessories: Power Cord, Remote Control

Certifications: CE, FCC Class A and cCSAus

Safety requirements: This projector is Risk Group 2 (RG2) according to IEC EN 62471-5. This projector may become Risk Group 3 (RG3) when an interchangeable lens with throw ratio greater than 3.5 is installed.<\p> Refer to the installation manual for further information.
