MDPC‑8127
27" 8MP, ultra-high definition display, cleared for digital pathology
- Visual richness and color confidence
- Panning and zooming with minimal blurring
- Stable image quality & automated calibration

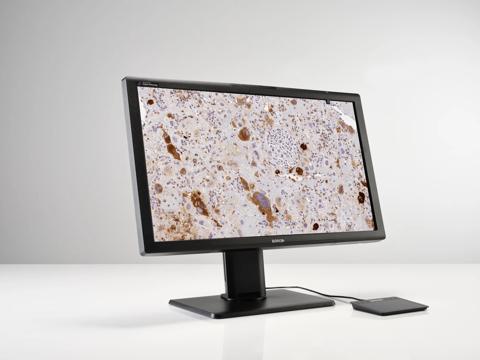

Meet MDPC-8127, our ultra-high definition medical grade display designed exclusively for digital pathology. With regulatory clearances as an IVD device (Europe and FDA) for use in digital pathology including primary diagnosis, it’s the first display that you can confidently integrate into your digital pathology workflow with multiple whole slide imaging systems.* Work with superior imaging technology and analyze your histological samples confidently, with unprecedented visual richness.
*In the USA the MDPC-8127 can be used with WSI scanners and viewing software that have been validated for use with the display.
The device may be used for primary diagnosis in the following validated FDA-cleared WSI systems and digital pathology viewing software:
Barco’s MDPC-8127 510(k) clearance:
- Philips Intellisite Pathology Solution with Philips Image Management System viewing software, cleared under K192259
- Philips Intellisite Pathology Solution with Paige.AI Inc. FullFocus DX viewing software, cleared under K201005
- Leica Aperio AT2 DX System with ImageScope DX viewing software, cleared under K190332
- Leica Aperio AT2 DX scanner with Sectra Digital Pathology Module, cleared under K193054
FDA- Cleared WSI systems and Digital Pathology Viewing Software with MDPC-8127:
- Hamamatsu NanoZoomer S360MD slide scanner system, cleared under K233027
- Leica Aperio GT 450 DX scanner with Aperio WebViewer DX, cleared under K232202
- Philips Intellisite Pathology Solution with JelloX MetaLite Dx Digital Pathology Software, cleared under K240303
- Philips IntelliSite Pathology Solution with Philips Image Management System and Galen™ Second Read™ AI, cleared under K241232
- Epredia E1000 Dx scanner with E1000 Dx IMS, cleared under K241717
- Hamamatsu NanoZoomer S360MD scanner with Lumea Viewer+, cleared under K242244
MDPC-8127 Validation protocol:
- Leica Aperio GT 450 DX scanner with Sectra Digital Pathology Module (3.3)
- Roche Ventana DP200 scanner with Roche uPath Enterprise Software
- Hamamatsu NanoZoomer S360MD Slide scanner with Proscia Concentriq® AP-Dx Digital Pathology software
A+ ecolabel for MDPC-8127
The MDPC-8127 has been subjected to Barco’s ecoscoring protocol and has received an A+ rating. Some key factors that contributed to this rating are:
- High energy efficiency
- Possibility to switch to standby mode when device is not in use
- Use of halogen-free materials on all levels: cables, PCBs, plastics
- Number of screws and screw types is reduced significantly to improve ease of disassembly
- Unpainted large plastic parts
Specifications
Download spec sheetGeneral specifications
- Screen technology
- IPS LCD with LED backlight
- Active screen size (diagonal)
- 684 mm (27")
- Active screen size (H x V)
- 569 x 335 mm (22.4 x 13.2")
- Aspect ratio (H:V)
- 16:9
- Resolution
- 8MP (3840 x 2160 pixels @ 120 Hz)
- Pixel pitch
- 0.155 mm
- Color imaging
- Yes
- Gray imaging
- Yes
- Bit depth
- 10 bit (1.07 billion possible colors)
- Viewing angle (H, V)
- 178°
- Uniformity correction
- PPU
- SteadyColor
- Yes, with QAWeb Enterprise
- Color gamut NTSC
- 115% (typical)
- Color gamut sRGB
- 132% (typical)
- Color gamut DCI-P3
- 105% (typical)
- sRGB Delta E2000 (typical)
- < 1 (average)
< 3 (maximum)
- Ambient light presets
- Yes, reading room selection
- Ambient light sensor
- Yes
- Front sensor
- Yes, I-Guard
- Maximum luminance (panel typical)
- 850 cd/m²
- DICOM calibrated luminance
- 450 cd/m²
- Contrast ratio (panel typical)
- 1000:1
- Response time ((Tr + Tf)/2) (typical)
- 8 ms
- Housing color
- Black / White
- Video input signals
- 2x DisplayPort 1.2
- USB ports
- 1x USB 2.0 upstream (endpoint)
2x USB 2.0 downstream
- Power rating
- 100-240 Vac, 50/60 Hz, 3.6-1.6 A
- Power consumption
- 75 W (nominal) @ calibrated luminance of 450 cd/m²
< 0.5 W (hibernate)
< 0.5 W (standby)
- Dimensions with stand (W x H x D)
- 651 x 482~582 x 238 mm
- Dimensions w/o stand (W x H x D)
- 651 x 390 x 66 mm
- Dimensions packaged (W x H x D)
- 800 x 650 x 295 mm
- Net weight with stand
- 12.5 kg
- Net weight w/o stand
- 7.9 kg
- Net weight packaged
- 17.4 kg (without optional accessories)
- Tilt
- -5° to +25°
- Swivel
- -30° to +30°
- Pivot
- N/A
- Height adjustment range
- 100 mm
- Mounting standard
- VESA (100 mm)
- Recommended modalities
- Digital Pathology and Whole Slide Imaging
- Certifications
- FDA 510(k) K203364
CE (In Vitro Diagnostic Medical Device)
CCC (China)
Safety specific:
EC 60950-1:2005+A1:2009+A2:2013
EN 60950-1:2006+A1:2010+A11:2009+A12:2011+A2:2013
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
IEC 60601-1:2005+A1:2012+A2:2020
EN 60601-1:2006+A1:2013+A12:2014+A2:2021
AAMI ES 60601-1:2005+A1:2012+A2:2021
CAN/CSA C22.2 No. 60601-1:2014 (Reaffirmed 2022)
IEC 61010-1:2010+A1:2016
EN 61010-1:2010+A1:2019 (Ed. 3.1)
UL 61010-1:2012+R1:2019+R2:2023 (Ed. 3.2)
CAN/CSA C22.2 No. 61010-1:2012+A1:2018 (Ed 3.1) (Reaffirmed 2023)
EMI specific:
IEC 60601-1-2:2014+A1:2020 (Ed.4.1)
EN 60601-1-2:2015+A1:2021 (Ed.4.1)
IEC 61326-2-6:2020 (Ed. 3.0)
EN IEC 61326-2-6:2021
FCC part 15 Class B
ICES-001 Level B
VCCI (Japan)
RCM (Australia)
Environmental:
EU RoHS, China RoHS, REACH, Canada Health, WEEE, Packaging Directive
- Supplied accessories
- User guide
Documentation disc
Video cables
Mains cables
USB cable
Touch pad
- Optional accessories
- MXRT display controller
- QA software
- QAWeb Enterprise
- Warranty
- 5 years, including 20000 hrs backlight warranty
- Operating temperature
- 0 °C to 35 °C (20 °C to 30 °C within specs)
- Storage temperature
- -20 °C to 60 °C
- Operating humidity
- 8% to 80% (non-condensing)
- Storage humidity
- 5% to 85% (non-condensing)
- Operating pressure
- 50 kPa minimum
- Storage pressure
- 50 to 106 kPa
