Eonis 3D (MDRC‑8127)
Glasses-free medical 3D display
- Autostereoscopic 3D with advanced eye-tracking & lenticular lens projection
- 4K resolution on standard-size 27” screen
- Effortless switching between 2D & 3D for any task
- DICOM-compatible, Class 1 medical-grade display
- Remote QA management tools
List price:
(excl. VAT, duties and freight)
Price not available
MDRC-8127 SLIB
See beyond dimensions. Discover depth without limits
Discover the world's first glasses-free, medical 3D display

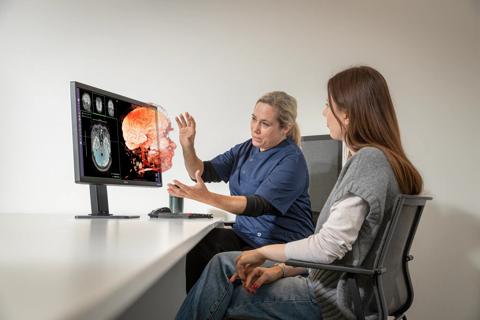

Revolutionize medical visualization across patient consultations, surgical planning, and medical education with Eonis 3D, Barco’s pioneering 3D monitor solution. This groundbreaking technology delivers uncompromised glasses-free 3D imaging, providing you with unprecedented depth perception and easy spatial understanding.
All-in-one versatility for any workflow
Eonis 3D comes in a comfortable, standard 27” size – perfect for any desk. And without the need for special eyewear, Eonis 3D renders complex anatomical structures with exceptional clarity and true depth, allowing for intuitive interpretation of pathologies.
Remote QA management
A Class 1 medical device, Eonis 3D integrates seamlessly with existing PACS and imaging platforms while its ergonomic design supports eye comfort during extended viewing sessions. Advanced calibration through its front sensor and integration with QAWeb Enterprise software maintains consistent image quality across the entire display, during its entire lifespan.
Medical-grade reliability & longevity
Experience transformative visualization that helps to improve patient opt-in rates, enhance surgical preparation, and accelerate learning curves for residents and students!
Specifications
Download spec sheetGeneral specifications
- Screen technology
- IPS
- Active screen size (diagonal)
- 684 mm (26.96")
- Active screen size (H x V)
- 597 x 336 mm (23.49 x 13.22")
- Aspect ratio (H:V)
- 16:9
- Resolution
- 8MP (3840 x 2160 pixels @ 60 Hz)
- Pixel pitch
- 0.1554 mm
- Color imaging
- Yes
- Gray imaging
- Yes
- Bit depth
- 30 bit
- Viewing angle (H, V)
- 178°
- SteadyGray
- N/A
- SteadyColor
- N/A
- Pathology Setting
- Yes
- Color gamut NTSC
- 82%
- Color gamut sRGB
- 99%
- sRGB Delta E2000 (typical)
- Average: < 3
Max: < 5
- Ambient light presets
- Yes, reading room selection
- Front sensor
- Yes, Front Consistency Sensor
- Maximum luminance (panel typical)
- 330 cd/m²
- DICOM calibrated luminance
- 250 cd/m²
- Contrast ratio (panel typical)
- 1000:1
- Response time ((Tr + Tf)/2) (typical)
- 14 ms
- Housing color
- Black (RAL 9004) / White (RAL 9003)
- Video input signals
- 2x DisplayPort 1.4
1x USB-C 3.2 DisplayPort Alt Mode
- Video output signals
- 1x DisplayPort 1.4 (MST)
- USB ports
- Upstream:
2x USB-B 2.0
1x USB-C 3.2 (DisplayPort Alt Mode, Power Delivery up to 100W)
Downstream:
2x USB-A 2.0
1x USB-C 2.0 (side of the display, Power Delivery up to 7.5W
- LAN/RJ45 ports
- 1x 1GbE
- Power rating
- 100-240 Vac, 50/60 Hz, 2.5-0.9 A
USB-C output: 5VDC 3A, 9VDC 5A, 15VDC 5A, 20V 5A
USB-C output (side): 5VDC 1.5A
- Power requirements
- This device shall only be powered by the medical approved power supply of Adapter Tech., type ATM200T-P240:
- Input: 100-240 Vac, 50-60 Hz, 2.5-0.9 A
- Output: 24 Vdc, 8.3 A
- Power consumption
- 35 W (nominal)
< 0.5 W (hibernate)
< 0.3 W (switched off)
- Dimensions with stand (W x H x D)
- Landscape: 624 x 479~579 x 225 mm
- Dimensions w/o stand (W x H x D)
- Landscape: 624 x 386 x 66 mm
- Dimensions packaged (W x H x D)
- 755 x 285 x 570 mm
- Net weight with stand
- 10,6 kg
- Net weight w/o stand
- 7.6 kg
- Net weight packaged
- 15 kg (without optional accessories)
- Tilt
- -5° to +25°
- Swivel
- -30° to +30°
- Pivot
- N/A
- Height adjustment range
- 100 mm
- Mounting standard
- VESA (100 mm)
- Screen protection
- N/A
- Recommended modalities
- All digital images, except digital mammography.
- Certifications
- CE (Medical Device)
FDA Class I 510(k) exempt
CCC (China)
KC (Korea)
INMETRO (Brazil)
BIS (India)
UKCA (UK)
Safety specific:
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
IEC 60601-1:2005+A1:2012+A2:2020
EN 60601- 1:2006+A1:2013+A12:2014+A2:2021
AAMI ES 60601-1:2005+A1:2012+A2:2021
CAN/CSA C22.2 No. 60601-1:2014 (Reaffirmed 2022)
EMI specific:
IEC 60601-1-2:2014+A1:2020 (Ed.4.1)
EN 60601-1-2:2015+A1:2021 (Ed.4.1)
FCC part 15 Class B
ICES-001 Level B
VCCI (Japan)
Environmental:
EU RoHS, China RoHS, REACH, Canada Health, WEEE, Packaging Directive
- Supplied accessories
- User Guide
Quick Install Sheet
Documentation disc
Video cables
Mains cables
USB cable
- QA software
- QAWeb Enterprise
- Warranty
- 3 years
- Operating temperature
- 0 °C to 35 °C (20 °C to 30 °C within specs)
- Storage temperature
- -20 °C to +60 °C
- Operating humidity
- 20 % to 80 % (non-condensing)
- Storage humidity
- 10 % to 85 % (non-condensing)
- Operating pressure
- 70 kPa
- Storage pressure
- 50 to 106 kPa
