ENCORE3

Unsubscribe from this product

World’s most versatile Screen Management System

Uncompromised native 4K content processing
Improved setup with assisted workflows
Resilient flexibility with ultra low latency
Integrated Dante & embedded audio
Refined yet familiar user interface

Get your quote Where to buy

We appreciate your feedback.

Let us know what you think about our products on imageprocessing-feedback@barco.com

Price

List price:

(excl. VAT, duties and freight)

Price not available

Resources & tools

Download spec sheet

Manuals, drivers and support

Better, Faster, Stronger

The Barco Encore3 image processing platform is nothing short of a game-changer. We’re giving every live event AV professional broader canvas space, expanded system resources by easy linking, and advanced transition between layers during runtime. High-quality 4K processing with unrivaled flexibility. All boxed into one future-proof solution, for premium peace of mind.

The Encore3 supports a boundless canvas with 8x 4K60 PGM outputs at 12 bits 4:4:4 processing with always available 8x 4K60 layers per screen. Call on embedded audio, screen composition for layered videos, Multiviewer as a source and the ability to manage all your screens.

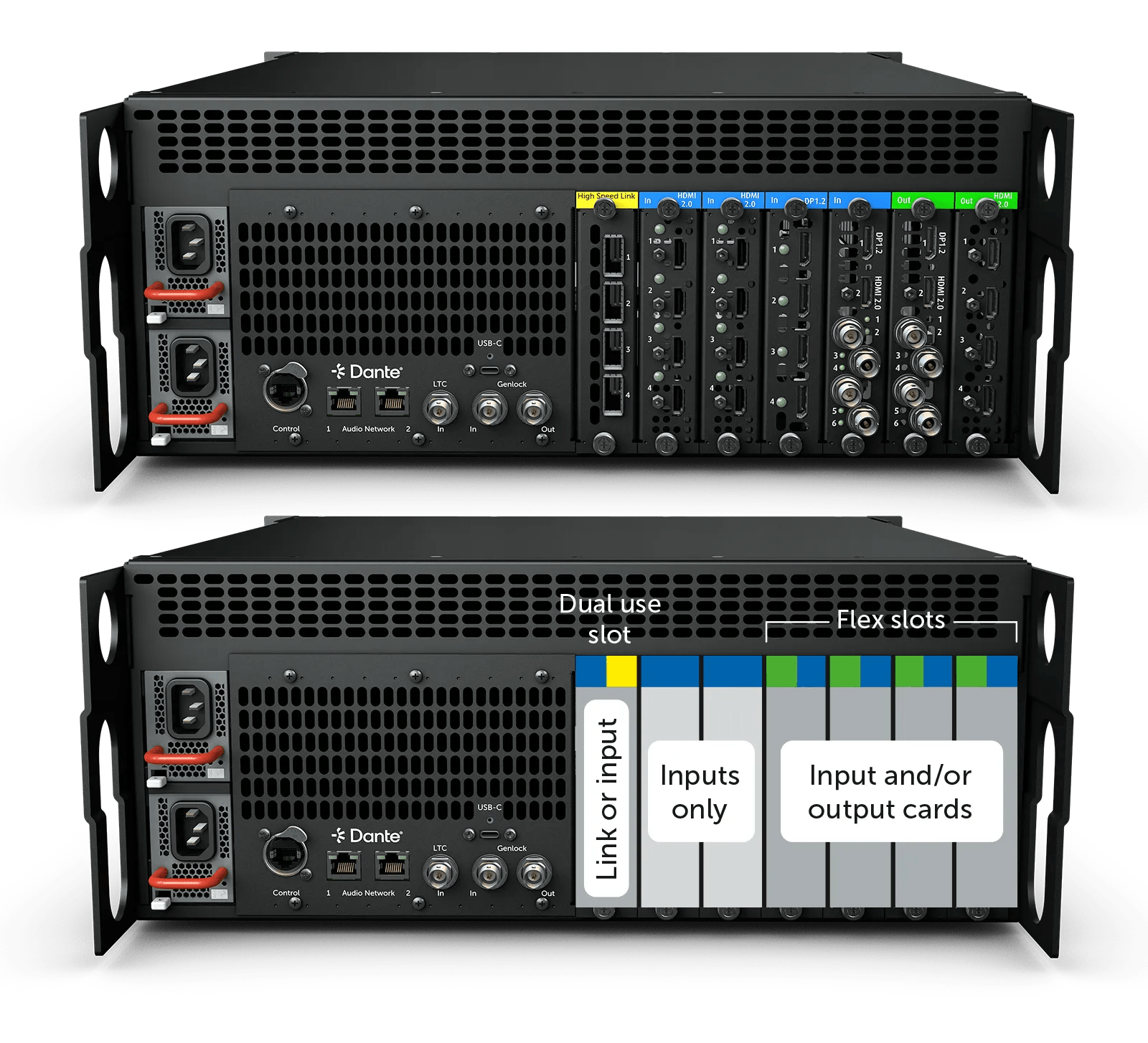

Build your own configuration

Event Master Encore3 will have a standard, finished and stocked configuration. But as it’s a scalable and modular system, it will also be available as BTO - “Build To Order” - system.

Inputs Up to 7 input capable card slots, each input card supports up to 4x 4K@60p inputs
Outputs Up to 4 output capable card slots, each output card supports up to 4x 4K@60p outputs
A system comprises of maximum of two chassis at first release

Specifications

Download spec sheet

General specifications

Notes: The specifications in this document are preliminary

Live effects canvas: Boundless canvas with 8x 4K60 PGM outputs

Video inputs

Up to 7 input capable card slots to occupy with Event Master Gen2 cards

Each input card supports up to 4x 4K @60p inputs

Standard Encore3 Configuration

16x 4K @60p inputs
Up to 4x HD/3G/6G/12G SDI connectors
Up to 9x HDMI™ 2.0 (up to 4096x2160 @60Hz)
Up to 5x DisplayPort 1.2 (up to 4096x2160 @60Hz)

Video outputs

Up to 4 output capable card slots to occupy with Event Master Gen2 cards

Each output card supports up to 4x 4K @60p outputs

Standard Encore3 Configuration

8x 4K@60p outputs
Up to 4x HD/3G/6G/12G SDI connectors
Up to 5x HDMI™ 2.0 (up to 4096x2160 @60Hz)
Up to 1x DisplayPort (up to 4096x2160 @60Hz)

Genlock: Analog reference input/Output on BNC connectors;
bi-level and blackburst at SD and tri-level at HD

Program output

Up to 8 program outputs configurable as single screens or tiled/blended widescreens

Configurable for up to 8x 4096 X 2160 @60p

Independent edge blending/feathering control for all four sides

Scaled Aux outputs

User definable for up to 8x 4096 x 2160 @60p

Each output card supports up to 2x AUX ouputs

Mixers

Positionable non-scaled background mixer per output screen
Independent layer transitions or full Preview/Program transitions
Pre-assigned 4 mixable / 8 single (up to 16 mixable / 32 single) scalable PIP/key layers per output screen

Still stores: Store up to 2160MB (~60 4K60) of still images, supporting stills up to a staggering 160,000px in either horizontal or vertical dimensions

Layer effects

Borders (hard, soft, halo) and drop shadows
Color effects
Strobe, H&V flip
Luma, chroma and Cut/Fill keys
PIP moves via Keyframes

Multiviewer

2x 4K @60p MultiViewer as source that be sent to any output or layer.
Flexible user-definable layouts
Monitor all Inputs and screens PVW & PGM

Expandability

Easily expandable for larger display applications via 4x QSFP28 link connection. Quad 100G High Speed Expansion Link Card required.
Link units to increase available Inputs and Outputs for larger tiled/blended widescreen applications
Encore3 ships with the ability to link 2 chassis for expansion at first release
