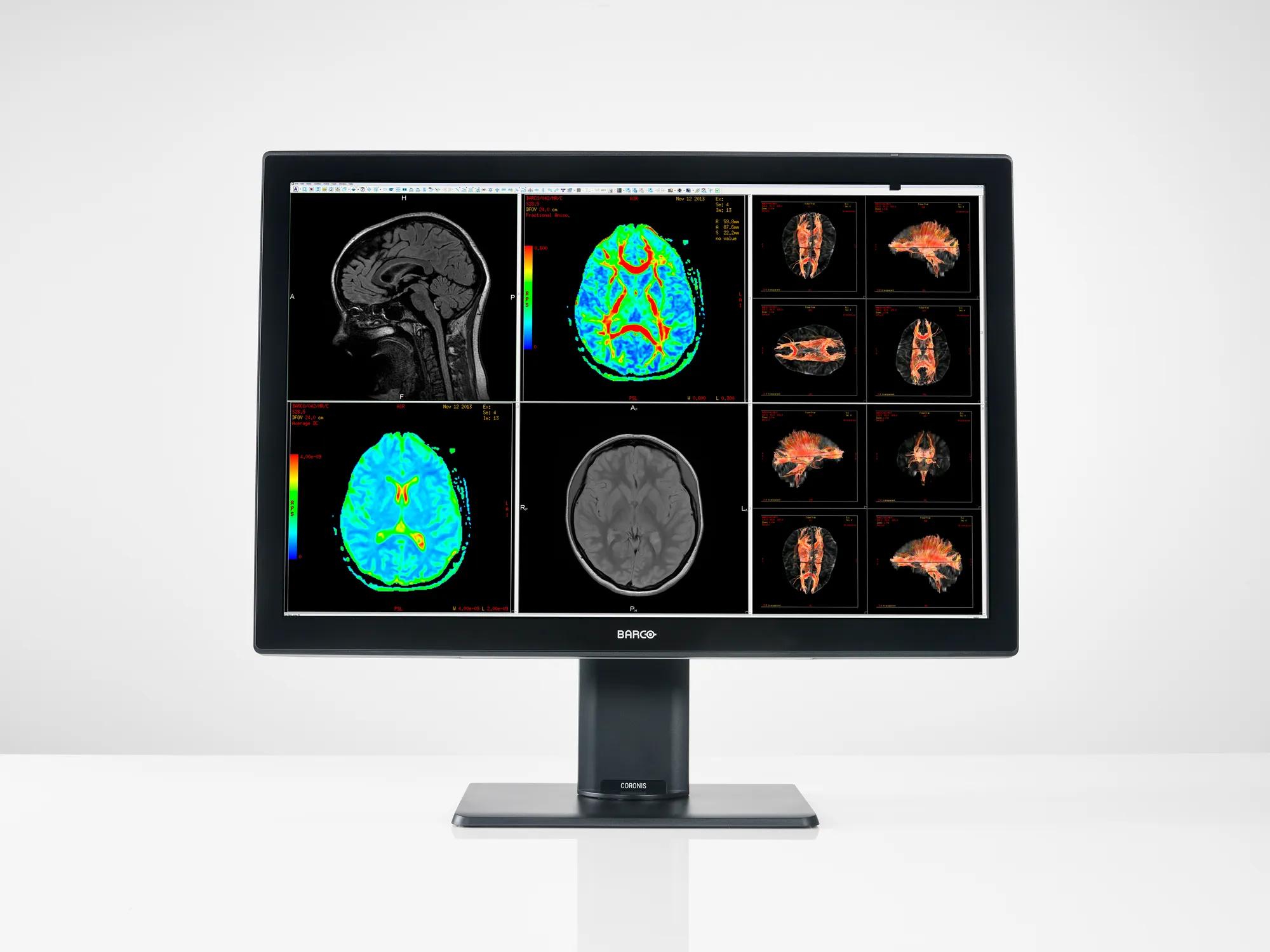

Coronis Fusion 6MP (MDCC‑6530 Option CN)
6MP diagnostic color display system
- Color fusion display for flexible multimodality imaging
- With toolset to spark productivity
- Automated QA and calibration
A brighter diagnosis
Coronis Fusion, Barco's renowned multi-modality display for radiologists, now comes in a new, energy-efficient and lightweight design. Bright on so many levels, Coronis Fusion has been designed to help radiologists provide care with confidence.
See more details quickly thanks to the high brightness, high contrast ratio and best-in-class image quality. What's more, the wide color gamut in combination with SteadyColor™ calibration technology helps you see even more colors and more details on the 30-inch screen.
Smart workflow
Designed for your comfort and to boost productivity, Coronis Fusion comes with smart image-enhancing features and clinical workflow tools. The display's wide viewing angle combined with the SoftGlow™ task and wall light help reduce eye strain. Thanks to SpotView™, a proven clinical tool, radiologists can further improve detection accuracy as well as reading productivity.
Effortless quality & compliance
Like all of Barco's medical display systems, Coronis Fusion comes with QAWeb Enterprise, a cloud-based technology for automated calibration, Quality Assurance and compliance to ensure maximum uptime of the display with no need for human intervention.
A one-stop-shop solution
Barco medical display systems include exclusive display controllers that are validated with the latest workstations and with all major PACS applications. All components are under the full 5-year warranty (including the display backlight) for complete peace of mind.
Specifications
Download spec sheetGeneral specifications
- Screen technology
- IPS
- Active screen size (diagonal)
- 772 mm (30.4")
- Active screen size (H x V)
- 654 x 409 mm (25.8 x 16.1")
- Aspect ratio (H:V)
- 16:10
- Resolution
- Native 6MP (3280 x 2048 pixels)
Configurable to 2 x 3MP+ (1640 x 2048 pixels)
Configurable to 2 x 3MP (1536 x 2048 pixels)
- Pixel pitch
- 0.1995 mm
- Color imaging
- Yes
- Gray imaging
- Yes
- Bit depth
- 30 bit
- Viewing angle (H, V)
- 178°
- SteadyColor Calibration
- Yes, when used as system with MXRT-x600 display controller or later, using Barco MXRT driver 10.184.2.2 or later and with the latest version of QAWeb Enterprise.
- Ambient light presets
- Yes, reading room selection
- Ambient light sensor
- Yes
- Front sensor
- Yes, I-Guard
- Maximum luminance (panel typical)
- 1050 cd/m²
- DICOM calibrated luminance
- 600 cd/m²
- Contrast ratio (panel typical)
- 2000:1
- Response time ((Tr + Tf)/2) (typical)
- 18 ms
- Housing color
- Black / White
- Video input signals
- 2x DisplayPort 1.2
- Video output signals
- 1x DisplayPort (MST)
- USB ports
- 1x USB 2.0 upstream (endpoint)
2x USB 2.0 downstream
1x USB 2.0 downstream with high-power charging functionality
- Power rating
- 100-240 Vac, 50/60 Hz, 3.6-1.6 A
- Power consumption
- 80 W (nominal) @ calibrated luminance of 600 cd/m²
< 0.5 W (hibernate)
< 0.5 W (standby)
- Dimensions with stand (W x H x D)
- 714 x 524~624 x 240 mm
- Dimensions w/o stand (W x H x D)
- 714 x 478 x 74 mm
- Dimensions packaged (W x H x D)
- 800 x 650 x 295 mm
- Net weight with stand
- 16.3 kg
- Net weight w/o stand
- 11.7 kg
- Net weight packaged
- 20.9 kg (without optional accessories)
- Tilt
- -5° to +25°
- Swivel
- -30° to +30°
- Pivot
- N/A
- Height adjustment range
- 100 mm
- Mounting standard
- VESA (100 mm)
- Recommended modalities
- All digital images, except digital mammography
- Certifications
- CCC (China)
Safety specific: GB 4943.1-2011
EMI specific: GB 17625.1-2012, GB/T 9254-2008
Environmental: China Energy Label, China RoHS, WEEE
- Supplied accessories
- User guide
System sheet
Video cables
Mains cables
USB cable
- QA software
- QAWeb
- Warranty
- 5 years, including 40000 hrs backlight warranty
- Operating temperature
- 0 °C to 35 °C (10 °C to 30 °C within specs)
- Storage temperature
- -20 °C to 60 °C
- Operating humidity
- 20% to 85% (non-condensing)
- Storage humidity
- 20% to 85% (non-condensing)
- Operating pressure
- 70 kPa minimum
- Storage pressure
- 50 to 106 kPa
