Coronis Fusion 6MP (MDCC‑6530)

Unsubscribe from this product

6MP diagnostic color display system

Color fusion display for flexible multimodality imaging
With toolset to spark productivity
Automated QA and calibration

This product is not available in your country/region

This product is currently only available in the following countries/regions: Afghanistan, Albania, Algeria, American Samoa, Andorra, Angola, Anguilla, Antarctica, Antigua & Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia & Herzegovina, Botswana, Bouvet Island, Brazil, British Indian Ocean Territory, British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Canada, Cape Verde, Caribbean Netherlands, Cayman Islands, Central African Republic, Chad, Chile, Christmas Island, Cocos (Keeling) Islands, Colombia, Comoros, Congo - Brazzaville, Congo - Kinshasa, Cook Islands, Costa Rica, Croatia, Cuba, Curaçao, Cyprus, Czechia, Côte d’Ivoire, Denmark, Djibouti, Dominica, Dominican Republic, Ecuador, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, Ethiopia, Falkland Islands, Faroe Islands, Fiji, Finland, France, French Guiana, French Polynesia, French Southern Territories, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Greenland, Grenada, Guadeloupe, Guam, Guatemala, Guernsey, Guinea, Guinea-Bissau, Guyana, Haiti, Heard & McDonald Islands, Honduras, Hong Kong 香港, Hungary, Iceland, India, Indonesia, Iran, Iraq, Ireland, Isle of Man, Israel, Italy, Jamaica, Japan, Jersey, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Libya, Liechtenstein, Lithuania, Luxembourg, Macau 澳門, Macedonia, Madagascar, Malawi, Malaysia, Maldives, Mali, Malta, Marshall Islands, Martinique, Mauritania, Mauritius, Mayotte, Mexico, Micronesia, Moldova, Monaco, Mongolia, Montenegro, Montserrat, Morocco, Mozambique, Myanmar (Burma), Namibia, Nauru, Nepal, Netherlands, New Caledonia, New Zealand, Nicaragua, Niger, Nigeria, Niue, Norfolk Island, North Korea, Northern Mariana Islands, Norway, Oman, Pakistan, Palau, Palestinian Territories, Panama, Papua New Guinea, Paraguay, Peru, Philippines, Pitcairn Islands, Poland, Portugal, Puerto Rico, Qatar, Romania, Russia, Rwanda, Réunion, Samoa, San Marino, Saudi Arabia, Senegal, Serbia, Seychelles, Sierra Leone, Singapore, Sint Maarten, Slovakia, Slovenia, Solomon Islands, Somalia, South Africa, South Georgia & South Sandwich Islands, South Korea, South Sudan, Spain, Sri Lanka, St. Barthélemy, St. Helena, St. Kitts & Nevis, St. Lucia, St. Martin, St. Pierre & Miquelon, St. Vincent & Grenadines, Sudan, Suriname, Svalbard & Jan Mayen, Swaziland, Sweden, Switzerland, Syria, São Tomé & Príncipe, Taiwan 台湾, Tajikistan, Tanzania, Thailand, Timor-Leste, Togo, Tokelau, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan, Turks & Caicos Islands, Tuvalu, U.S. Outlying Islands, U.S. Virgin Islands, Uganda, Ukraine, United Arab Emirates, United Kingdom, United States, Uruguay, Uzbekistan, Vanuatu, Vatican City, Venezuela, Vietnam, Wallis & Futuna, Western Sahara, Yemen, Zambia, Zimbabwe, Åland Islands

Get your quote Where to buy

Price

List price:

(excl. VAT, duties and freight)

Price not available

Resources & tools

Download spec sheet

Get product support

A brighter diagnosis

Coronis Fusion, Barco's renowned multi-modality display for radiologists, now comes in a new, energy-efficient and lightweight design. Bright on so many levels, Coronis Fusion has been designed to help radiologists provide care with confidence.

See more details quickly thanks to the high brightness, high contrast ratio and best-in-class image quality. What's more, the wide color gamut in combination with SteadyColor™ calibration technology helps you see even more colors and more details on the 30-inch screen.

Smart workflow

Designed for your comfort and to boost productivity, Coronis Fusion comes with smart image-enhancing features and workflow tools. The display's wide viewing angle combined with the SoftGlow™ task and wall light help reduce eye strain. Thanks to SpotView, radiologists can further improve detection accuracy as well as reading productivity.

Effortless quality & compliance

Like all of Barco's medical display systems, Coronis Fusion comes with QAWeb Enterprise, a cloud-based technology for automated calibration, Quality Assurance and compliance to ensure maximum uptime of the display with no need for human intervention.

A one-stop-shop solution

Barco medical display systems include exclusive display controllers that are validated with the latest workstations and with all major PACS applications. All components are under the full 5-year warranty (including the display backlight) for complete peace of mind.

Ensuring diagnostic confidence with MDR Class IIa

Our radiology displays are MDR-certified as Class IIa. Their product information has been reviewed and cleared by independent medical and technical experts, and is audited yearly. In other words, we ensure diagnostic confidence and peace of mind for our users.

Models

MDCC-6530: includes protective, anti-reflective glass cover
MDCC-6530 NC: without cover

Specifications

Download spec sheet

General specifications

Screen technology: IPS

Active screen size (diagonal): 772 mm (30.4")

Active screen size (H x V): 654 x 409 mm (25.8 x 16.1")

Aspect ratio (H:V): 16:10

Resolution: Native 6MP (3280 x 2048 pixels)
Configurable to 2 x 3MP+ (1640 x 2048 pixels)
Configurable to 2 x 3MP (1536 x 2048 pixels)

Pixel pitch: 0.1995 mm

Color imaging: Yes

Gray imaging: Yes

Bit depth: 30 bit

Viewing angle (H, V): 178°

Uniformity correction: Color PPU

SteadyColor: Yes, when used as system with MXRT-x600 display controller or later, using Barco MXRT driver 10.171.1.0 or later and with QAWeb Enterprise 2.2 or later.

Ambient light presets: Yes, reading room selection

Ambient light sensor: Yes

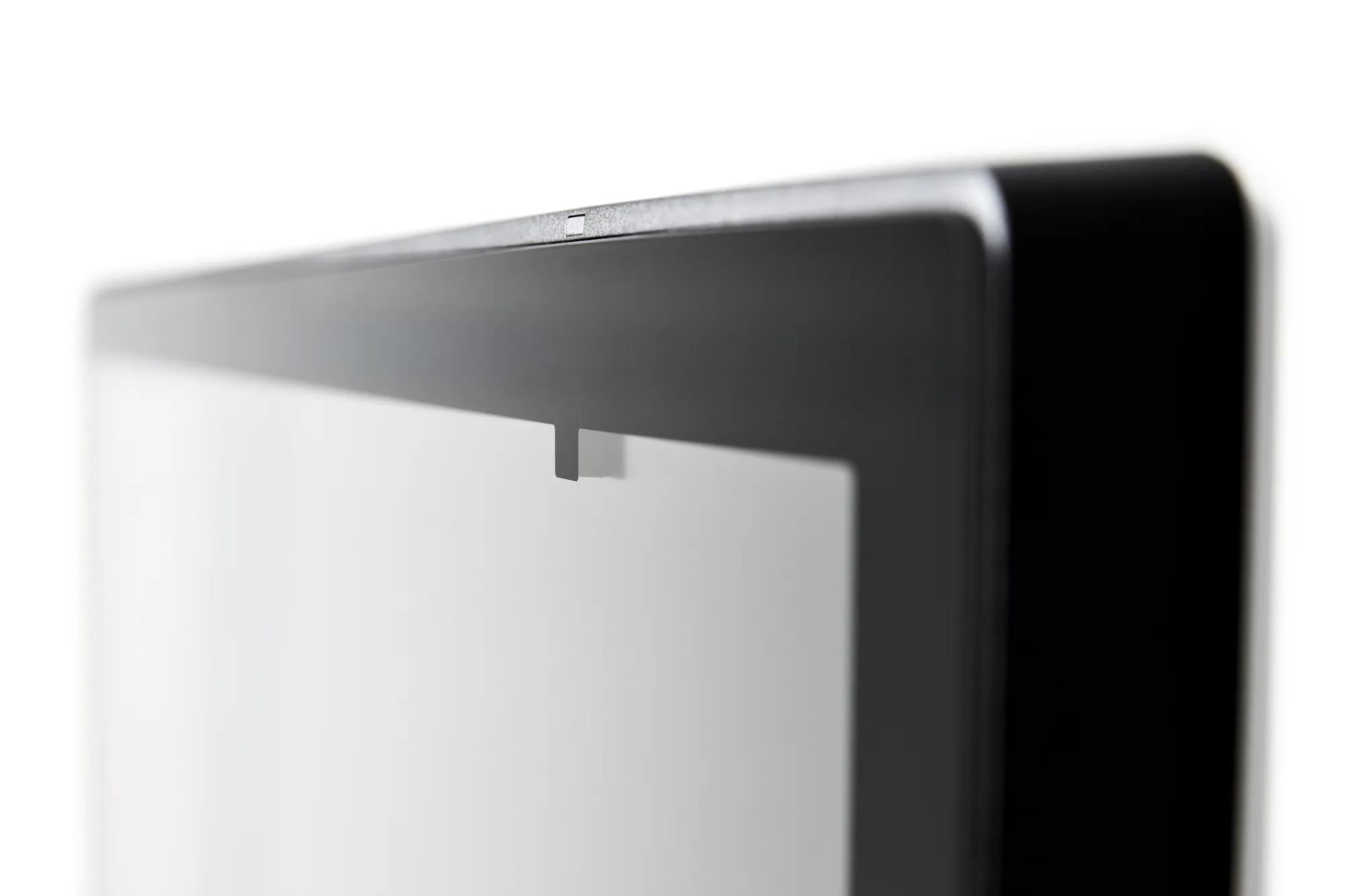

Front sensor: Yes, I-Guard

Maximum luminance (panel typical): 1050 cd/m²

DICOM calibrated luminance: 600 cd/m²

Contrast ratio (panel typical): 2000:1

Response time ((Tr + Tf)/2) (typical): 18 ms

Housing color: Black / White

Video input signals: 2x DisplayPort 1.2

Video output signals: 1x DisplayPort (MST)

USB ports: 1x USB 2.0 upstream (endpoint)
2x USB 2.0 downstream
1x USB 2.0 downstream with high-power charging functionality

Power rating: 100-240 Vac, 50/60 Hz, 3.6-1.6 A

Power consumption: 80 W (nominal) @ calibrated luminance of 600 cd/m²
< 0.5 W (hibernate)
< 0.5 W (standby)

Dimensions with stand (W x H x D): 714 x 524~624 x 240 mm

Dimensions w/o stand (W x H x D): 714 x 478 x 74 mm

Dimensions packaged (W x H x D): 800 x 650 x 295 mm

Net weight with stand: MDCC-6530:17.7 kg
MDCC-6530 NC: 16.3 kg

Net weight w/o stand: MDCC-6530: 13.1 kg
MDCC-6530 NC: 11.7 kg

Net weight packaged: MDCC-6530: 22.3 kg (without optional accessories)
MDCC-6530 NC: 20.9 kg (without optional accessories)

Tilt: -5° to +25°

Swivel: -30° to +30°

Pivot: N/A

Height adjustment range: 100 mm

Mounting standard: VESA (100 mm)

Screen protection: MDCC-6530: Protective, anti-reflective glass cover
MDCC-6530 NC: No glass cover

Recommended modalities: All digital images, except digital mammography

Certifications: FDA 510(k) K191845
CE0123 (Medical Device)
CCC (China)
INMETRO (Brazil - Prodcut numbers K9301636B(1X), K9301638B(1X)
KC (Korea)
BIS (India)
EAC (Russia, Kazakhstan, Belarus, Armenia and Kyrgyzstan)
Safety specific:
IEC 60950-1:2005 + A1:2009+A2:2013
EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013
IEC 62368-1:2018
EN IEC 62368-1:2020 + A11:2020
IEC 60601-1:2005+A1:2012+A2:2020
EN 60601-1:2006 + A1:2013 + A12:2014+A2:2021
AAMI ES 60601-1:2005 + A1:2012+A2:2021
CAN/CSA C22.2 No. 60601-1:2014 (Reaffirmed 2022)

EMI specific:
IEC 60601-1-2:2014+A1:2020 (ed.4.1)
EN 60601-1-2:2015+A1:2021 (ed.4.1)
FCC part 15 Class B
ICES-001 Level B
VCCI (Japan)

Environmental:
EU RoHS
China RoHS
REACH
Canada Health
WEEE
Packaging Directive
