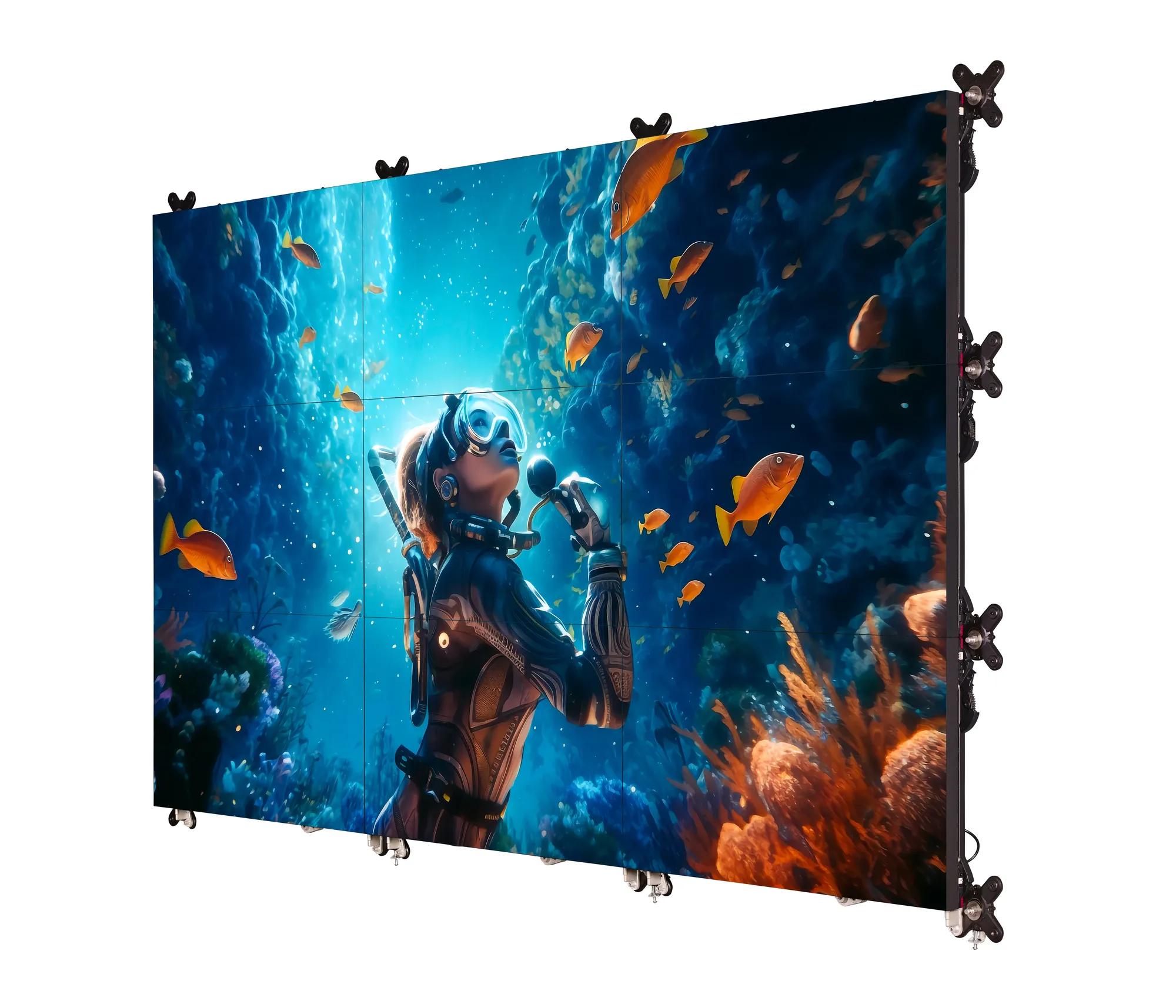

Barco UniSee II
55" bezel-less tiled LCD video wall platform for high-brightness applications
- Strike with HDR contrast and wider color gamut
- Complete display canvas uniformity
- Reduced eye fatigue measures for end user ergonomy
- Fastest servicing
- Modular, future-proof platform
List price:
(excl. VAT, duties and freight)
Price not available
Uni-2008 View800N
R985016WME-050 Video Wall Manager Edge
R985016IAUWME-050 Video Wall Manager Edge AU
R985016BWME-050 Video Wall Manager Edge
R985016BTWWME-050 Video Wall Manager Edge
R985016DWME-050 Video Wall Manager Edge
R985016FWME-050 Video Wall Manager Edge
R985016GWME-050 Video Wall Manager Edge
R985016IWME-050 Video Wall Manager Edge
Strike with more brightness, colors and contrast
LCD video wall visualization reaches a new level with Barco UniSee II. This updated version of the revolutionary Barco UniSee platform will shape the future of critical decision-making with its striking visual performance. New innovations, including the use of mini-LEDs and Chip-on-Glass technology, contribute to optimal contrast with deep blacks. Additionally, quantum dot technology results in crisp colors and more saturation. The uniformity is revolutionary, with superior inter-panel communication. Coupled with the renowned bezel-less LCD panels, this makes the video wall act as a real large single canvas.
Designed for critical applications

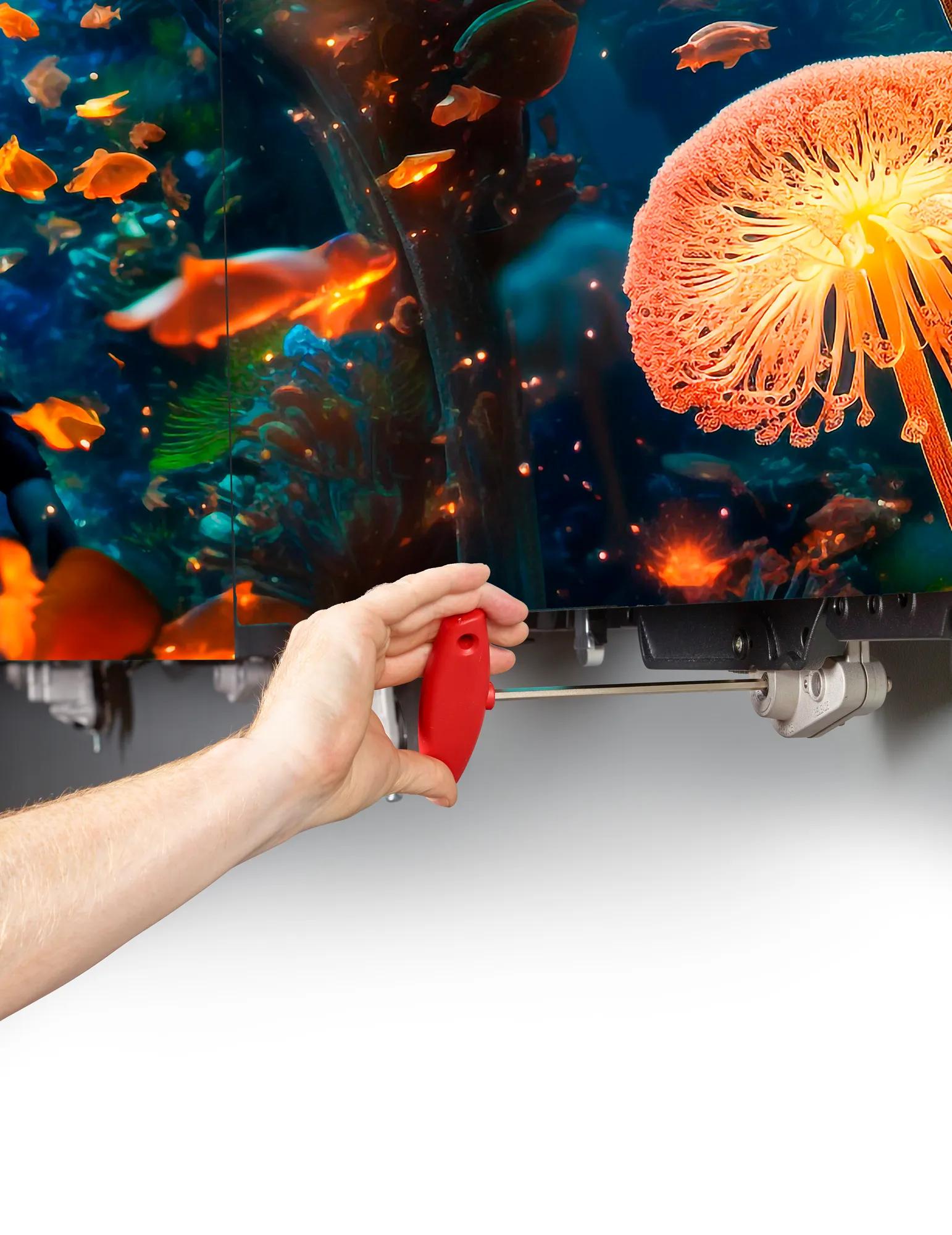

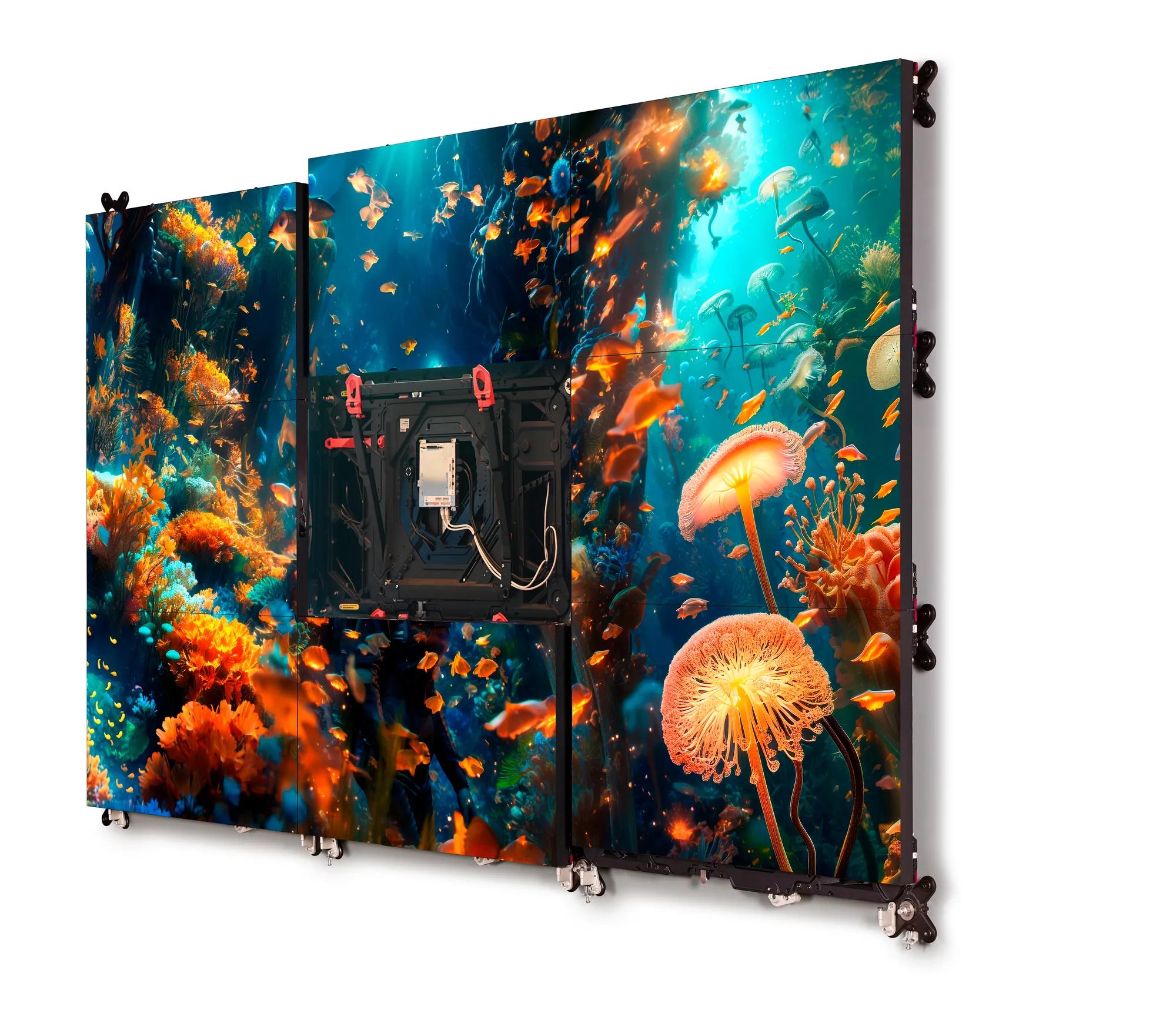

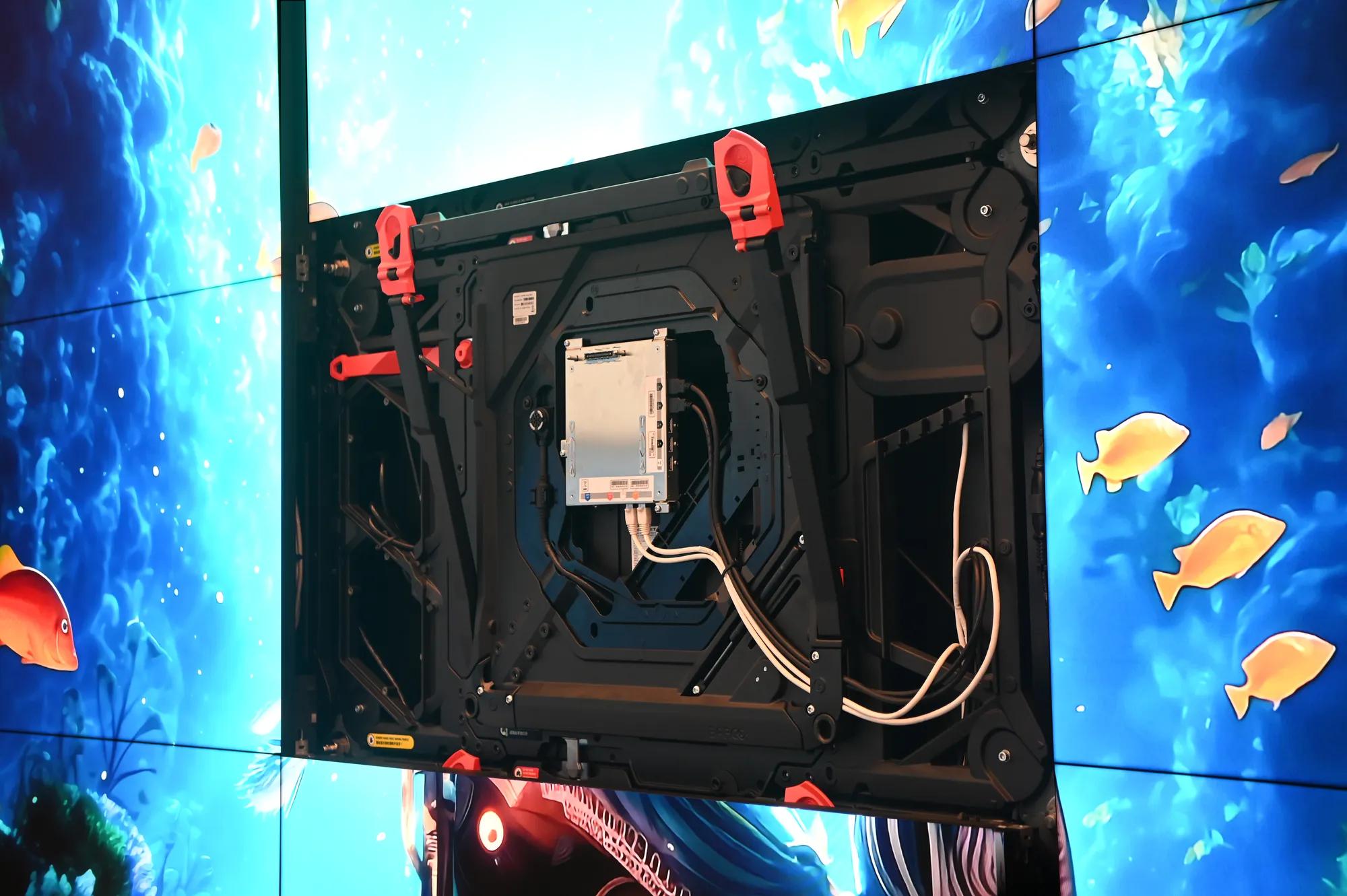

The refined viewer ergonomics further improves viewing angles and counters eye fatigue. This makes Barco UniSee II perfect for intense use in critical applications, such as control rooms. Because reducing operational costs is high up the agenda of many companies, Barco UniSee II reduces power consumption with 20% compared to the previous version. The innovative mounting structure that is a trademark of the Barco UniSee family, ensures a perfect installation in any environment, and makes servicing a lot simpler and faster. This further contributes to a lower operational cost.
Specifications
Download spec sheetPanel
- Resolution
- Full HD (1920 x 1080 pixels)
- Backlight
- Direct Mini LED with more than 5000 LEDs
- Aspect ratio
- 16:9
- Luminance
- 800 cd/m2 (typical)
- Peak Luminance
- Peak luminance: 1300 cd/m2 with Peak mode
- Contrast
- 1200:1
Smart dynamic contrast: >200.000:1
- White point
- Native: 8000K (typical)
- Smart Local Dimming
- Full video wall canvas algorithm
- HDR processing
- HDR10 compliant
- Color gamut/color depth
- Native 100% NTSC
- Calibration
- Sense X automatic color and brightness calibration
- Backlight lifetime
- >60,000h with default mode
- Cooling
- Fan-less
- Screen haze
- 25%
- Viewing angle (H, V)
- 178° | 178°
- Uniformity
- 9 points: 98%
13 points: 94%
21 points: 90%
- Operating temperature
- 0°C - 40°C
- Operational humidity
- 20% - 80%
Power
- AC input voltage
- 100-240 VAC, 50-60 Hz
- Power consumption
- Int. power supply: 225 W
Ext. power supply: 220 W
Dimensions
- Dimensions
- 1211,36 x 682.02 x 87.1 mm
- Active screen diagonal
- 55”
- Weight
- LCD net: 18.7 kg LCD gross (including packaging): 24.6 kg LCM net: 16.4 kg LCM gross (including packaging): 21.4 kg
- Bezel Width
- NA (bezel-less) – identical to Barco UniSee 700
Connectivity
- DisplayPort
- 2x DP1.2 inputs & 1x output (4K@60Hz)
- HDMI(TM)
- 2x HDMI™ 2.0 inputs (4K@60Hz)
- Ethernet port
- 2x Ethernet ports
- USB
- 2x USB ports (only for power)
- HDCP
- 2.2 compliance
Model
- Model name
- Barco UniSee II
Barco UniSee II TAA
Other
- Notes
- UniSee Mount can support up to 10 rows in landscape mode and 6 rows in portrait.
- TAA Compliancy
- Optional
