3D glasses
Disposable 3D eye shield & shield frame
- 3D‐G L 20x: Shield
- 3D‐G F 10x: Shield frame

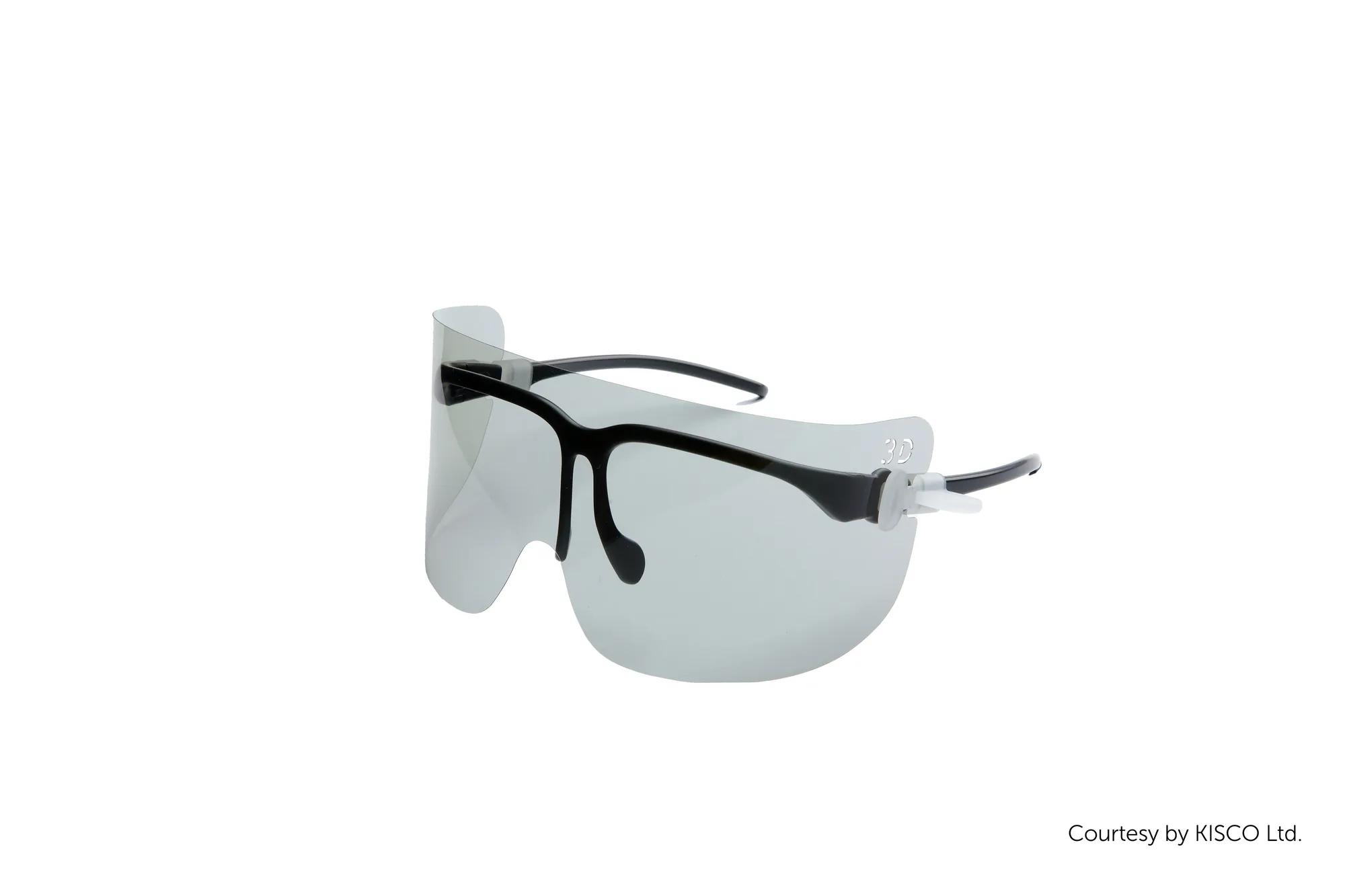

3D‐G L 20x is a polarizing eye shield and 3D‐G F 10x its intended eye shield frame, enabling 3D view on a 3D monitor with pattern retarder. They are meant to protect eyes from splashes, such as blood, while maintaining clear visibility of images.
Main features
The shield and frame can be used for circular polarization type 3D LCD monitors. Avoid 3D image breakdown by overlapping 3D glasses and general‐purpose shields.
The glasses are lightweight and can be worn over corrective glasses as well.
The shield is disposable and can be easily replaced at every procedure, while the frame can be reused.
Safety notes
The shield does not protect the eyes from physical shock or harmful substances.
This is not medical-grade equipment.
Specifications
Download spec sheetGeneral specifications
- Dimensions
- 3D‐G L 20x: Approximately 160 mm x 45 mm 3D‐G F 10x: Approximately 235 mm x 77mm
- Weight
- 3D‐G L 20x: Approximately 7g 3D‐G F 10x: Approximately 16g
- Operating temperature
- 0 to 40°C
- Operating humidity
- 30 to 85 %
- Operating pressure
- 70 to 1060 hPa
- Storage - transport temperature
- ‐20 to +60 °C
- Storage - transport humidity
- 20 to 90 %
- Storage - transport pressure
- 70 to 1060 hPa
- Package content
- 3D‐G L 20x: 20 units of 3D shield 3D‐G F 10x: 10 units of shield frame
