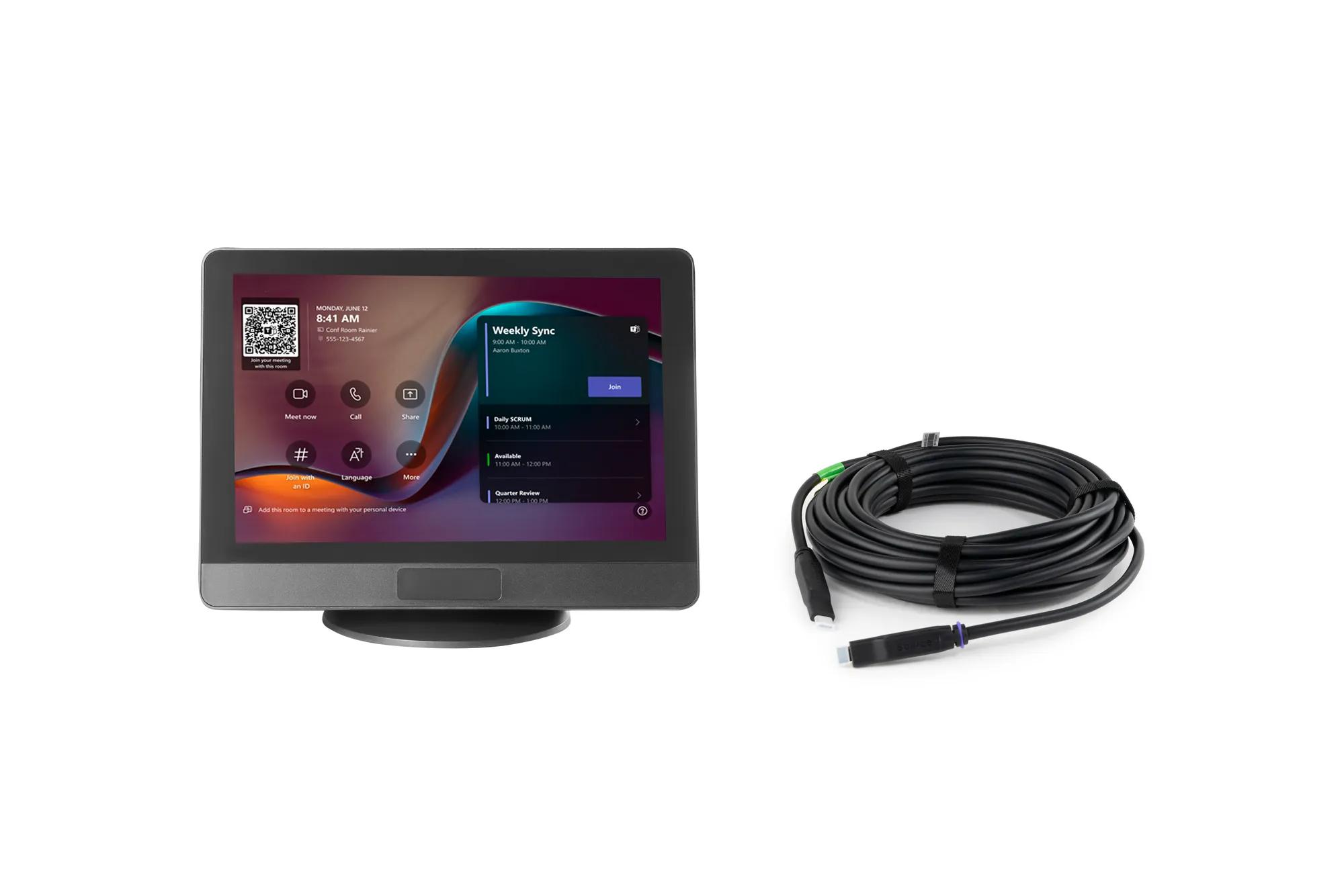

ClickShare 控制面板
直观的控制面板可与可立享 Hub 无线视频会议室系统无缝配对
- 一键启动混合会议——无延迟,无混乱
- 10 米 USB-C 单线连接确保整洁设置
- 可选 CAT 扩展套件,可灵活安装
- 零设置时间,轻松部署和管理
- 10 英寸响应式荧幕,提供多个安装选项
可立享控制面板是可立享 Hub 无线视频会议室系统不可或缺的一部分,提供了一个直观的界面来启动和管理混合会议。只需轻轻一按,即可启动 Microsoft Teams 视频通话,确保流畅高效的会议体验。
预计将于 2025 年底上市。
规格
下载规格表一般规格
- 触摸屏
- 10.1-inch projected capacitive touchscreen with anti-fingerprint and anti-glare coatings, supporting up to 4 touch points for enhanced visibility and durability
- Resolution
- 1280*800 @60Hz
- Brightness
- 300 nits
- Contrast Ratio
- 1000:1
- Viewing angle
- 80° (Up/Down/Left/Right)
- 人体检测传感器
- Automatically detects in-room human movement within a 2-meter range and 90° field of view to wake the system.
- 连接
- USB-C
- 温度范围
- 0°C - +40°C
- 湿度
- 存储:0 至 90% 相对湿度,无冷凝 操作:0 至 85% 相对湿度,无冷凝
- 防盗系统
- Kensington 锁
可立享主机尺寸
- 尺寸(高 x 宽 x 深)
- 254.5 x 187.9 x 76.9(毫米)
- 功耗
- 运行:7.3W(上限)待机:<0.5W
- 重量
- 820 克
ClickShare 10M 20W USB-C AOC Cable (Directional)
- Cable Length / Diameter
- 10M / 6mm
- Interface
- USB Type-C 3.2 Gen1, DP 1.4
- Power Delivery
- 20W
- Bend Radius
- 60mm/30mm (Fixed/Temporarily) While a minimum bend of 30mm is acceptable during handling or routing, it must not be maintained as a permanent fixture.
- Temperature range
- Operating: -10°C + 60°C (+14°F to +140°F) Storage: -20°C to +70°C (-4°F to + 158°F)
- Humidity
- Storage/Operation: 0 to 85% relative humidity, non-condensing
- Flame rated
- VW-1
