9.1 Use case 1: SFP+ transceiver + Fiber connection (integrated or separated)

SFP+ transceiver + Fiber connection (integrated or separated)

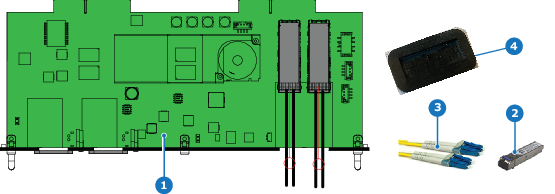

Image 9–1
1
SFP input board
2
SFP+ fiber transceiver
3
Fiber optic cable
4
Dustproof Gasket
Note: Barco delivers only the SFP input and SFP+ fiber transceivers. The customer has to buy the SFP+ transceiver and the optional breakout adapter or the fiber integrated cable.
How to configure the SFP input
  1. Remove the plate covering the access to the SFP cages.
  2. Insert the SFP+ transceivers
  3. Connect the breakout adapter.
  4. Install the SFP input in its slot of the Input & Communication module. See procedure “Installing an input board”.
  5. Insert the dust proof gasket in the opening where the covering plate was removedd
