Availability
- Models: All
- Count: 12 with 8 virtual pages
8.2 Destination buttons

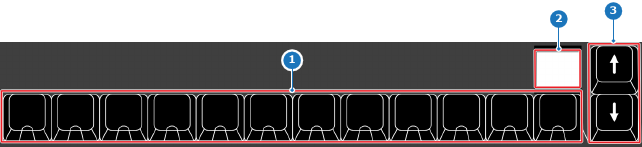

Elements
- 1
- Destination buttons with cutout LEDs
- 2
- Page display
- 3
- Page up and page down buttons
Navigating virtual pages
There are two main methods of navigating pages:
For individual navigation:
- Press the page up button to go to the next page.
- Press the page down button to go to the previous page.
- For specific navigation, while pressing and holding the page down button, press the destination button that corresponds with the desired page.
The current page is shown on the page display.
Tip: Changing pages on the controller will also update the contents of the destination name bar in Event Master Toolset.
Functionality destinations
Destination layers work on a toggle basis. Clicking the button will either set the destination as target for actions or remove it as target for actions. Multiple destinations can be selected at the same time. Target destinations will have the LED in the cutout turned on.
Which destination corresponds to which button on the controller can be seen with the destination name bar in the footer of the Event Master Toolset software. For more information, see “About the user interface”..
