Location

System > Front Panel

About flash front panel

Flash front panel will sequentially increase the brightness of the front panel. This changing brightness can assist in locating a desired Encore3.

Toggle the flashing behavior by tapping the slider next to Flash Front Panel.

About locking the front panel

The front panel can be locked to prevent accidental touches, unwanted modifications to the Encore3 and prevent remote access to the front panel.

Lock the front panel by tapping the slider next to Lock Front Panel.

To unlock the front panel, use one of the following two methods:

• With the Event Master Toolset. For more information, see “Setup”.
• By disconnecting and reconnecting the power.

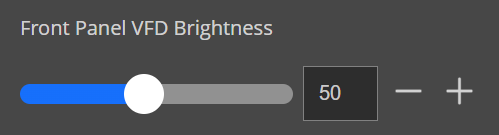

About brightness

There are three ways to change the brightness of the front panel:

• Using the slider: drag the white ball over the slider until the desired brightness is reached.
• Entering a value: tap on the number field to enter any desired value between 10- 100.
• Using the + and - buttons: tap on the + to increase the brightness with one point and on the - to decrease the brightness with one point.
