7.9.2 Editing an MVR layout

UMD
Under Monitor Display (UMD) is a user interface element for Event Master Toolset. It holds the name of the window it is attached to and a background color. The UMD is layered on top of the window and helps with identifying what that window is supposed to be. UMDs are typically only displayed within the software and not on the image. However, MVRs send the UMD with the image by default. This helps with providing context of each content window.
Location
  1. Navigation side bar: MVR
  2. Left panel: All Sources
  3. Right panel: MVR Setup or Adjust window or MVR Templates or MVR Presets
Template layouts

Some MVR layout suggestions have been added as templates. These templates will create grids of windows in the shape specified by its name. These templates can be modified further or used as final layout.

How to edit
  1. Select the desired MVRs at the top of the central work area.

  2. Select the layout that must be edited at the top of the central work area.

    Tip: Each MVR can have up to 10 different layouts prepared.
    Tip: By default layout1 gets auto populated depending on the configuration. If layout1 is ever overwritten, then the auto population will no longer happen.
    Image 7–92

  3. Must a template layout be used?

    Note: These templates will overwrite any existing layout.
    • If yes, select the desired grid layout from the right panel MVR Templates and go to next step.
    • If no, go to next step.

  4. Add windows to the central work area using one or multiple of the following methods:

    • Recall a preset from the right panel MVR Presets. For more information, see “MVR presets”.
    • Auto add all inputs with the button Auto Layout Input in the bottom panel.
    • Auto add all destinations with the button Auto Layout Dest in the bottom panel.
    • Drag and drop any desired source from the left panel All Sources to the central work panel.
    Note: Windows are not allowed to overlap. The UMD is not considered part of the window.
    Tip: If a source from the left panel is dropped on a window that already has a source, then the source will be overwritten with the dragged source from the left panel.
    Tip: If a window must be removed, click the Clear button in the bottom panel while the desired window(s) are selected.
    Tip: If the list is hidden, then click the arrow ().

  5. Adjust the position, the size and the name of the window(s) using one or multiple of the following methods:

    • Click and drag the window in the central work area to the desired position.
    • Click and drag the edge of the window in the central work area to adjust the size.
    • Align the selected window(s) with the icons in the bottom panel.
    • Adjust the window with the Adjust window from the right panel.
    • Enter a custom name for the window after the UMD Text in the Adjust window tab from the right panel. (optional)
    Note: Windows are not allowed to overlap. The UMD is not considered part of the window.
    Tip: Provide clear names that reflect the intended purpose.
    Tip: The border, AOI (Area Of Interest) marker and UMD (Under Monitor Display) label can be hidden from the MVR using the bottom panel. They will remain visible in the software.

  6. Manage the background border, MVR UMD and background color in the MVR Setup tab of the right panel. (optional)

    Tip: The border, AOI (Area Of Interest) marker and UMD (Under Monitor Display) label can be hidden from the MVR using the bottom panel. They will remain visible in the software.

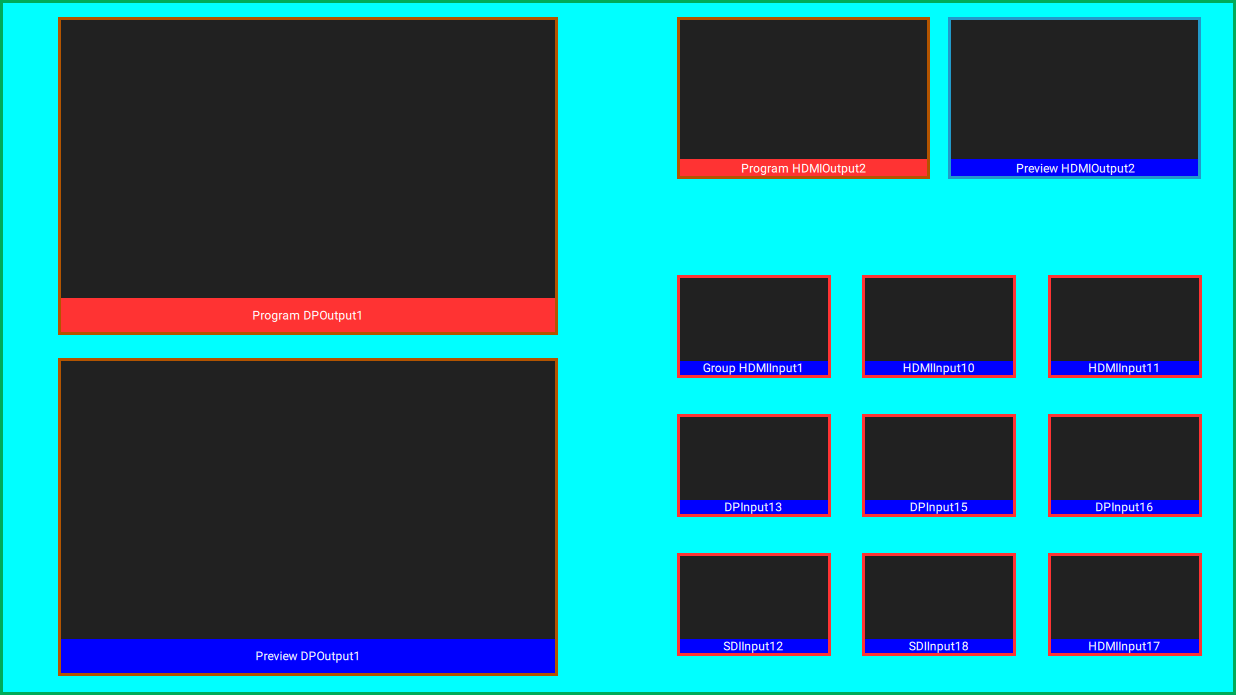

    Image 7–93 Example of a possible layout with a template layout
  7. Click the save icon () in the header.
