About quick use

Use the Base Unit without going through the full setup process. This can be useful for an urgent meeting that must take place immediately or if some basic testing/demo is needed.

All advanced features are not available while using the Base Unit in this state. However, the built-in camera, speakers and microphone can be used in their default configuration.

Tip: It is not advised to use the Base Unit without configuration for extended periods of time!

Quick share with Button

1. Pair a Button by following: “Pairing the Button(s)”
2. Plug the paired Button into the device that will be sharing or joining the meeting.
3. After the LED ring is stable white, press the central button of the Button to start sharing.

Quick share with ClickShare app

1. Download and install the ClickShare app: https://www.clickshare.app

   Windows will install the correct drivers automatically in most cases, else download the latest driver manually here: https://www.barco.com/en/support/software/R3307452

2. Run the installed ClickShare app.

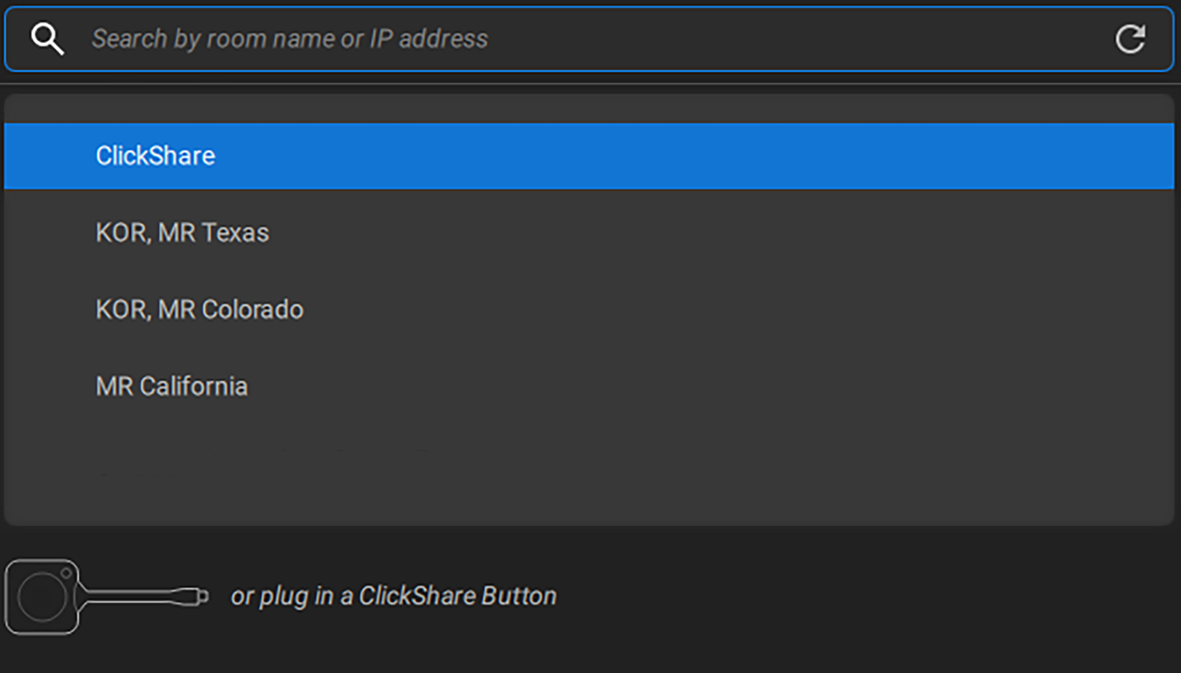

3. Select the desired meeting room in the ClickShare app.





   Note: Without configuration, the meeting room will be called “ClickShare-[serial number]”

   For more information about the ClickShare app, refer to the user guide.

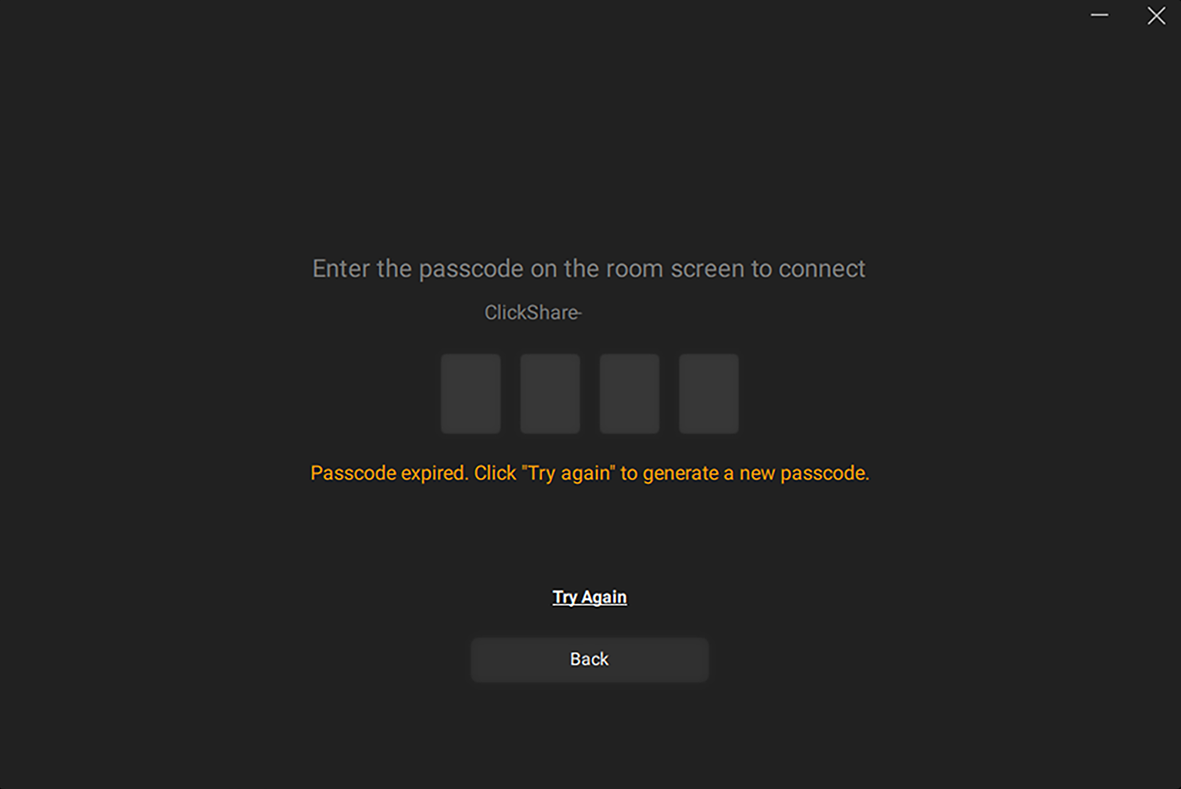

4. Enter the passcode that is shown on the display



   If the passcode disappeared too quickly, click “Try Again” in the app.

5. Select the desired screen or window and start sharing.
