4.4 Pairing the Button(s)

About the Button

Button(s) must be paired with a Base Unit before they will work. An unpaired Button will not be able to share content nor connect to any display.

Tip: It is not possible to pair a Button with multiple Base Units!

Pairing a Button to a different Base Unit causes the Button to lose its connection with the originally linked Base Unit.

How to pair
  1. Ensure the Base Unit is powered on.

  2. Connect the Button to the “USB-C” port on the right side of the Base Unit.

    Note: Only Buttons of generation 4.0 or higher are compatible with CB Core, CB Pro!

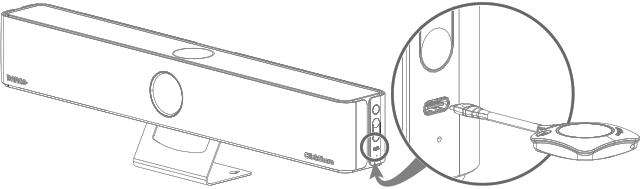

    Image 4–26 Pairing location for the Button(s)

    If a display is attached a notice “Busy pairing and updating” will appear at the bottom of the splash screen.

  3. Wait until the circle of the Button turns solid green

    If a display is attached a notice “Finished pairing and updating Button.” will appear at the bottom of the screen.

  4. Unplug the Button from the Base Unit.

    The Button is now ready to be used!
