4.2.4 External screensaver

Note: Only for CB Pro!
How to connect

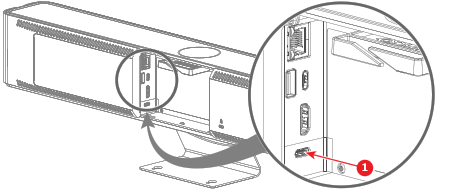

  1. Remove the cable cover at the back of the Base Unit.

    Image 4–19

  2. Connect a “DisplayPort” cable from the “DisplayPort out” port of the external screensaver with a “USB-C to DisplayPort” adapter to the “USB-C” port of the Base Unit (reference 1).

    Image 4–20
  3. Manage the video input in the ClickShare configurator. For more information, see “Screensaver”.
