About LAN connection

Connecting the CB Core, CB Pro to the LAN, allows for the configuration and management of the Base Unit remotely.

How to connect

1. Remove the cable cover at the back of the Base Unit.



2. Connect an “ethernet” cable from the LAN to the “ethernet” port at the back of the Base Unit. (reference 1)

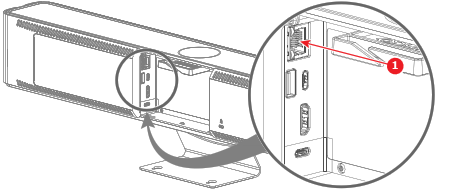

   • For CB Core:

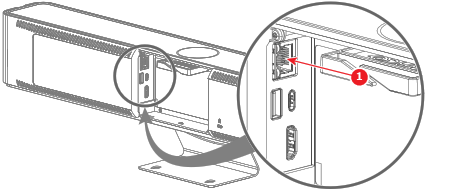

   • For CB Pro:



3. Route the cable(s) through the cable binder. (optional)
4. Find the IP address that was assigned to the Base Unit by the network.

5. Navigate to the IP address with a browser of choice.



   Note: Depending on the configuration of the browser, a security warning could be displayed. To prevent this warning in the future, see “HTTP encryption”.
6. To initialize the configurator see “The ClickShare configuration wizard”
7. Close the cable cover at the back of the Base Unit when no further connections must be made.
