6.7.3 HTTP encryption

About HTTP encryption

When accessing the configurator via the its IP address, an HTTP site is generated by the Base Unit. ClickShare will generate a certificate which will be checked by the browser to see if they are trusted. The default generated certificate of ClickShare is commonly not trusted by browsers, causing an unsafe site warning to be shown. To remove this warning, the default certificate of ClickShare can be set as trusted in the browser, or overwritten by a custom certificate created by the local IT department.

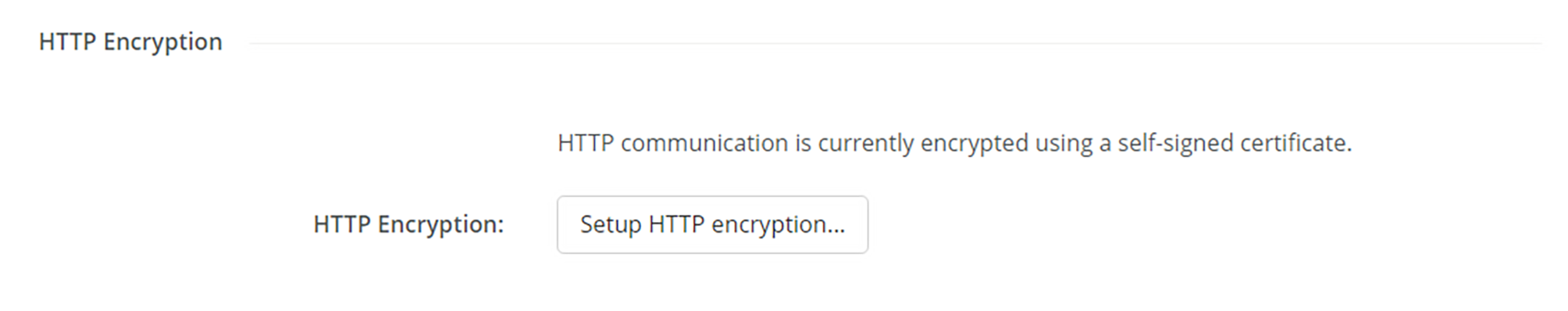

Image 6–51 Example of the HTTP certificate setup button
How to change the certificate

  1. Select which certificate type must be used?

    • ClickShare generated: select “Use self signed certificate” and trust the certificate in the browser. For more information about how to trust a root certificate, contact the local IT responsible.
    • Own certificate provided by IT: select “Use custom certificate” and go to next step.

  2. Fill out all applicable fields and upload the created certificate.

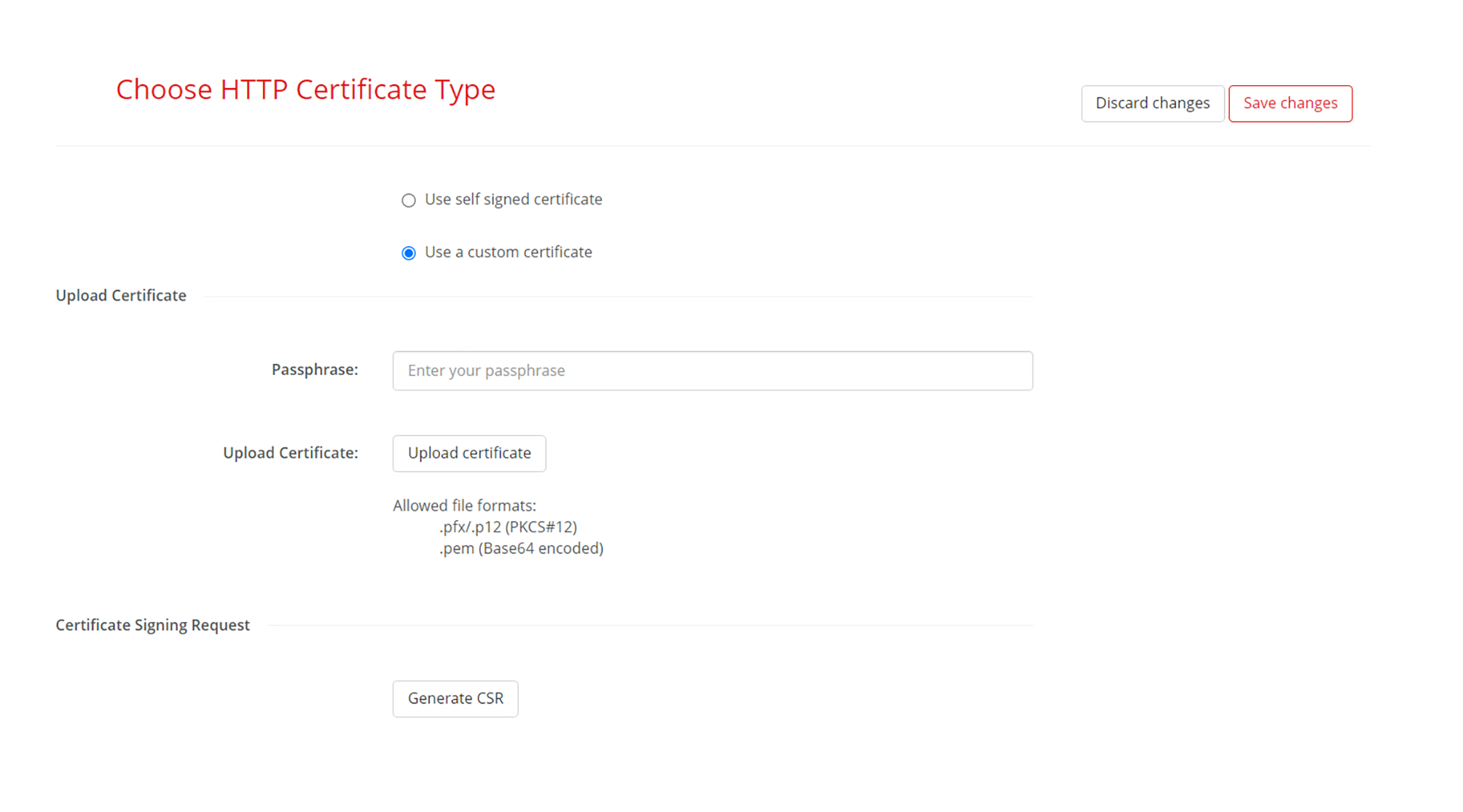

    Image 6–52 Example of custom certificate fields
  3. To validate the uploaded certificate, click on “Generate CSR” and fill out all applicable fields.
