8.2 Use case 2: Neutrik OpticalCon Duo + SFP+ transceiver + internal fiber

Neutrik OpticalCon Duo + SFP+ transceiver + internal fiber

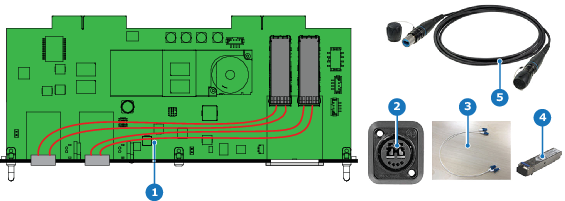

Image 8–2
1
SFP input board
2
Neutrik OpticalCon DUO
3
Internal fiber cable
4
SFP+ fiber transceiver
5
Cable
Note: Barco delivers only the SFP input and SFP+ fiber transceivers. The customer has to buy the SFP+ transceiver and the optional breakout adapter or the fiber integrated cable.
How to configure the SFP input
  1. Remove both plates covering the access to the Neutrik connector locations.
  2. Mount the Neutrik OpticalCon Duo connectors.
  3. Remove the plate covering the access to the SFP cage and insert the SFP+ transceivers.
  4. Re-install the cover plate.
  5. Mount the optical internal cables between the Neutrik connectors and the SFP+ transceivers.
  6. Install the SFP input in its slot of the Input & Communication module. See procedure “Installation of an input board”.
