4.8 Installation of an input board

Warning: The procedures below may only be performed by Barco trained and qualified technicians.
Caution: Always wear a wrist band which is connected to the ground while handling the electrostatic discharge (ESD) sensitive parts.
Note: The procedure below is applicable to all the input modules of the Input & Communication Unit of the projector.
Required tools
How to install
  1. Switch off the projector and unplug the power cord of the projector.
  2. If a dummy plate is mounted, remove the dummy plate. Release the 3 captive screws of the dummy plate to remove it.[3]

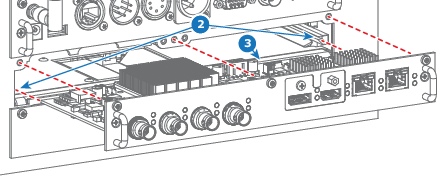

  3. Push the input module in the Input & Communication module using the handles. Make sure the module seats in its sliders (2).

    Push the module until the contacts (3) are fully inserted into the connectors.

    Image 4–13

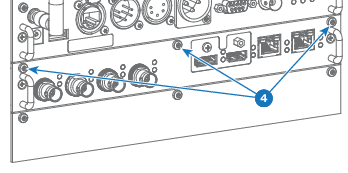

  4. Tighten the captive screws of the input module.[3]

    Image 4–14
  5. Plug in the power cord of the projector.

  6. IMPORTANT LAST STEP — Update the firmware of the installed module. Use the complete software package to install the firmware via Projector Toolset or USB stick.

    Tip: When a complete new software image is placed on the projector, all programmable components will be updated with the latest version.

[3] Depending on the production date of the projector, the captive screws can either be Phillips screws or Torx screws. Refer to the tools list to see what tool you may require.
