8.4 Use case 4: Loop-through mode

Loop-through mode

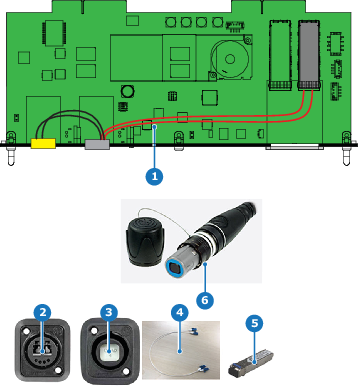

Image 8–4
1
SFP input board
2
Neutrik OpticalCon Duo
3
Neutrik OpticalCon Quad
4
Internal fiber cable
5
SFP+ fiber transceiver
6
Advanced Quad cable
Note: Barco delivers only the SFP input and SFP+ fiber transceivers. The customer has to buy the SFP+ transceiver and the optional breakout adapter or the fiber integrated cable.
How to configure the SFP input
  1. Remove both plates covering the access to a Neutrik connector locations.
  2. Mount the Neutrik OpticalCon Quad connector and the Neutrik OpticalCon Duo.
  3. Remove the plate covering the access to the SFP cage and insert the SFP+ transceivers.
  4. Re-install the cover plate.
  5. Mount the fiber internal cables between the Neutrik OpticalCon Quad and the SFP+ transceivers.
  6. Mount the fiber internal cables between the Neutrik OpticalCon Quad and the Neutrik OpticalCon Duo.
  7. Install the SFP input in its slot of the Input & Communication module. See procedure “Installation of an input board”.
