8.3 Use case 3: Neutrik OpticalCon Quad + SFP+ transceiver + internal fiber

Neutrik OpticalCon Quad + SFP+ transceiver + internal fiber

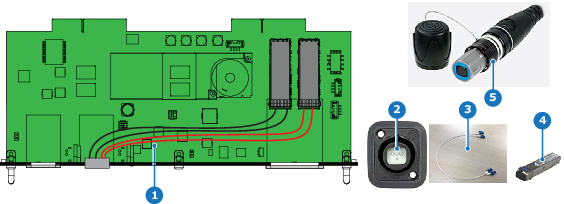

Image 8–3
1
SFP input board
2
Neutrik OpitcalCon Quad
3
Internal fiber cable
4
SFP+ fiber transceiver
5
Advanced quad cable
Note: Barco delivers only the SFP input and SFP+ fiber transceivers. The customer has to buy the SFP+ transceiver and the optional breakout adapter or the fiber integrated cable.
How to configure the SFP input
  1. Remove one plate covering the access to a Neutrik connector location.
  2. Mount the Neutrik OpticalCon Quad connector.
  3. Remove the plate covering the access to the SFP cage and insert the SFP+ transceivers.
  4. Re-install the cover plate.
  5. Mount the optical internal cables between the Neutrik connector and the SFP+ transceivers.
  6. Install the SFP input in its slot of the Input & Communication module. See procedure “Installation of an input board”.
