1.2 At a glance

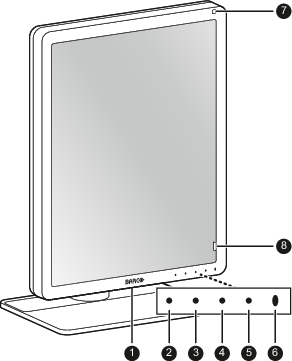

Front
Image 1–1
  1. USB-A 2.0 downstream connector
  2. Left / I-Luminate key
  3. Right key
  4. Menu key
  5. Standby key

  6. Power status LED

    • Off: Display not powered, or display operational but power LED function disabled in OSD (see “Power LED”)
    • Steady white: Display operational
    • Slow blinking amber: Display in suspend mode (requires DPMS mode to be enabled in the OSD menu, see “DPMS mode”)
    • Fast blinking amber: Display in standby mode (requires DPMS mode to be enabled in the OSD menu, see “DPMS mode”)
    • Steady amber: Display switched off via the standby key, or display in hibernate mode (requires DPMS mode and Hibernate to be enabled in the OSD menu, see “DPMS mode” and “Hibernate”)
  7. Ambient light sensor (option SPEF only)
  8. I-Guard Front sensor

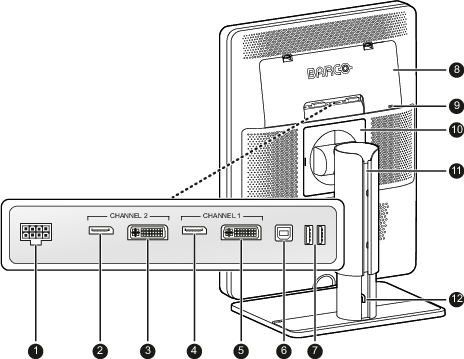

Back
Image 1–2
  1. +24 VDC power input
  2. Channel 2 DisplayPort video input
  3. Channel 2 DVI video input
  4. Channel 1 DisplayPort video input
  5. Channel 1 DVI video input
  6. USB-B 2.0 upstream connector[1]
  7. USB-A 2.0 downstream connectors (2x)
  8. Connector compartment cover
  9. Kensington security lock
  10. VESA mount cover plate
  11. Cable duct
  12. Foot lock clip

[1] Always connect the display(s) to a USB 3.0 hub, or if unavailable, to a USB 2.0 hub but then no more than two displays can be connected to the same hub.
