How to align
- Place the projector in the desired location. Take into account the zoom range of the used lens and the size of the screen.
- Project one of the internal hatch patterns on the screen.
Turn the adjustable feet in or out until the projected hatch pattern has a perfect rectangle shape and is leveled.

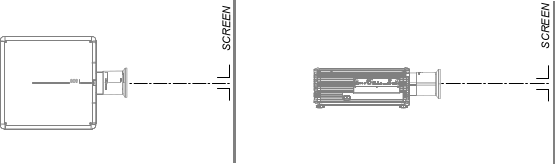

Image 4–13 When this is achieved, the projector is set horizontal and vertical at right angles to the screen.
Image 4–14
