5.5 Configure the ILD 0.37 UST 90° lens

Possible configurations

The lens body can be rotated per 90° relative to the lens flange containing the electrical socket towards the lens holder. However, the most common configuration is probably with the lens output oriented to the left seen from the rear side of the projector in table mount.

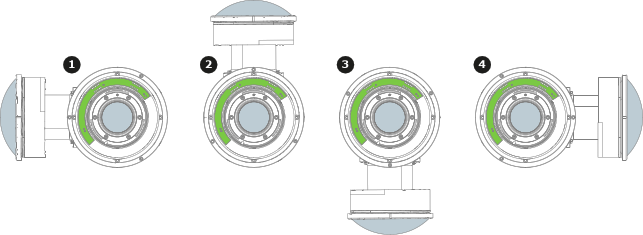

Image 5–8 UST 90° lens configurations.
1
Left (default)
2
Up
3
Down
4
Right
Required tools

Allen wrench 3 mm

How to configure

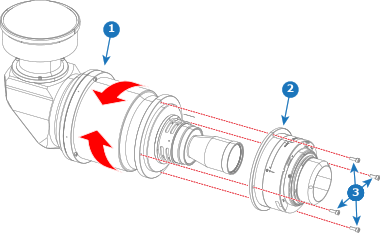

  1. Remove the lens flange (reference 2 Image 5–9) from the lens body (reference 1 Image 5–9). Use a 3 mm Allen wrench to release the 4 bolts (reference 3 Image 5–9) .

  2. Carefully place the lens flange back on the lens body in the desired orientation (up, left, down or right).

    Note: Make sure the gears fit together.
    Image 5–9
  3. Fasten the lens flange with 4 bolts.
